Semi-Auto Glass Cutting Table / YG-3726 Semi-Auto Glass Cutting Table
Re. Glass Cutting Table, we have three kinds, full Automatic CNC glass cutting Table, Semiautomatic Glass cutting Table, Manual Glass Cutting Table
Now I'd like to introduce our one kind of Semiautomaitc glass cutting Table for your reference. Thank you.

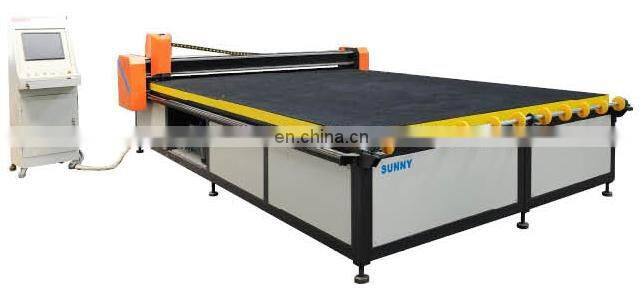

YG-3726 Semiautomatic Glass Cutting Table
1.Technique data:
Max Cutting Size (mm) 3600x2440mm
Min Cutting Size (mm) 20*20mm
Cutting Accuracy (mm/m) ±0.2
Glass Cutting Thickness(mm) 2-19
Overall Dimension (LWH) (mm) 4160x3350x1450mm
2. Introduction:

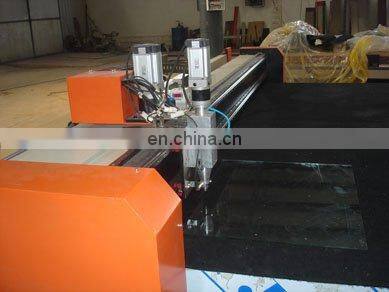

The Semi-automatic, Dual bridge precision cutting table is improved by using gear-drive equipment and the automatic stop function, making it necessary to manually pull the two beams. By pressing the starter on the control panel,the cutting would be automatically done by the gear-drive equipment. High efficiency and easy operation to cut with multiple cutters. Self-lubricating cutter holders, easy to replace cutter wheel, high precision, long lifespan and attractive appearance. THe smooth,easy operation reduces the intensity of labor and improves production efficiency. Finished cutting, the double beams automatically returned. Machine has blowing and suction function.
This machine can cut glass with high accuracy and high efficiency and can be easily operated
1. Stepping Motor,CNC Control
2. LCD
3. The cutting table is made of plastic that can proof humidity.
4. High Quality Axes insure the stability and accuracy.
5.The ventilation system can move and fix the glass on the cutting table.
Semiautomatic Style
CNC Full Automatic style
3. Remarks:
Package: Each PC In Wooden Cases
Terms: Freight On Board (FOBQingdao)
From Qingdao, China To_______,
Delivery Time: within 30 Days After Receiving the deposit
Payment: Telex Transfer (T/T), 30% as the deposit After Confirming The Order and the rest 70% is paid before the shipment
Our Trademark: SUNNY
Contact Person: Lucy
Mobile: 0086-15169042082
WARMLY WELCOME TO CONTACT ME, THANK YOU. :)
