Glass sucker lifter/glass vacuum cup lifter

           Glass sucker lifter/glass vacuum cup lifter

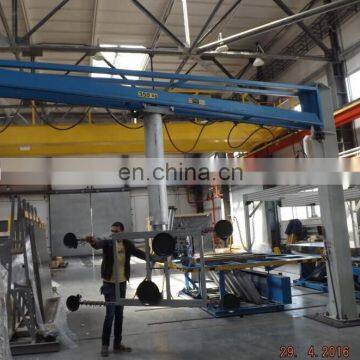

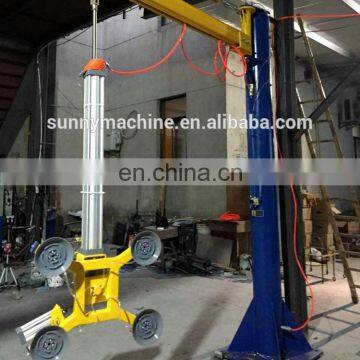

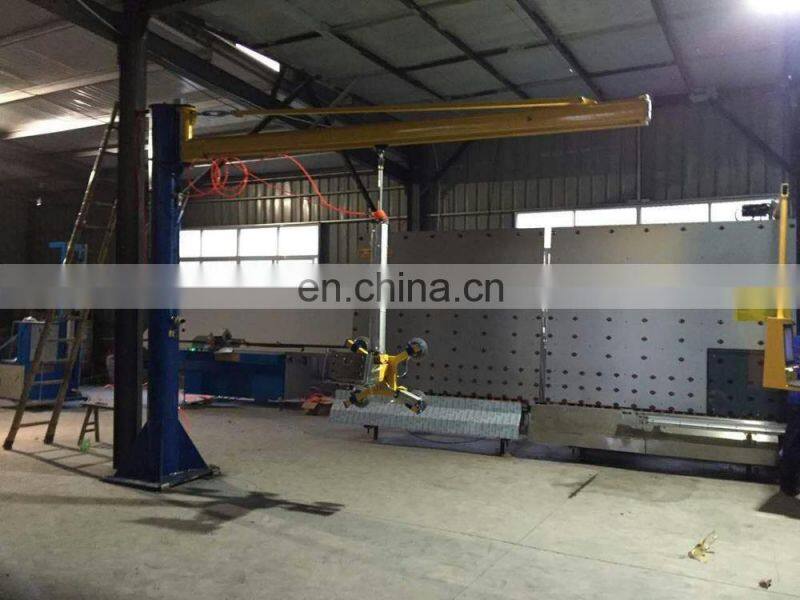

The glass lifter can be combined and operated with many different carrier facilities,such ascrane,excavatos, wheel loaders, fork lifts.

Load Movement:

Manual rotation, 360° edgewise, with locking at each quarter point

Manual tilt, 90° between upright and flat, with automatic latching in upright position

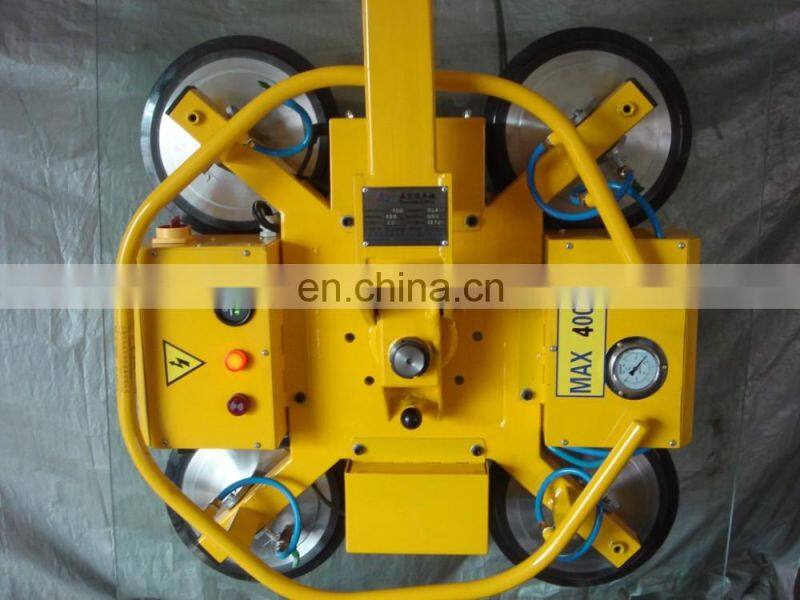

FVL-G400-4 Vacuum lifter
Type	FVL-G400-4	Lift capacity	400Kg
Diam. of Suction plate	300mm	Amount	4
Vacuum pump voltage	12V, DC	Vacuum pump capacity	0.09Kw
Work piece size	(2000)L* (1600)W *(---)H mm	Lifter size	(860)L×(860)W×(300)H mm
Control mode	Manual Valve	Sound level	<50dB
Rated safety coefficient	4	Weight	80kg
Others	No





We recommend FVL-G400 4 vacuum lift with rated capacity 400kg for vertical handling. There’re 4 suction cups, each diameter is 300mm. A 0.09Kw America GAST pump is used. Under vacuum pressure 60%(abs. 0.4bar), the suction cups could provide 400kg lift for vertical handling. The safety factor is no less than 4. The main beam is 860mm and cross beam is 860mm.
