manufacturer laminated glass cutting table -EVA/ PVB Laminated Glass Cutting Machine
- 15 Set / Sets per Month
- Qingdao China
- T/T Credit Card
Product Details
Brand Name: | SUNNY | Place of Origin: | Shandong, China | Certification: | CE |
Warranty: | 1 Year | Weight: | 1500kgs | ||
Dimension(L*W*H): | 1800*2440*750mm | Production Capacity: | 300-400 pcs | Condition: | New |
Voltage: | 380v 50hz | Power(W): | 4.5kw |
Product Description
Product Name:EVA/PVB Laminated Glass Cutting Machine
YGJ-3726A Lamination Glass Cutting Table manufacturer

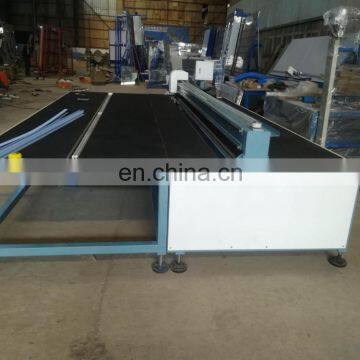

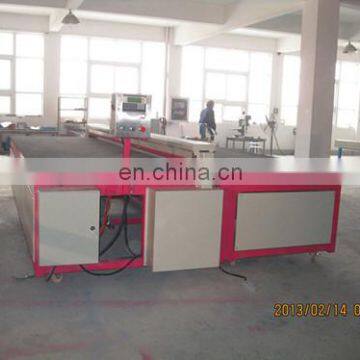

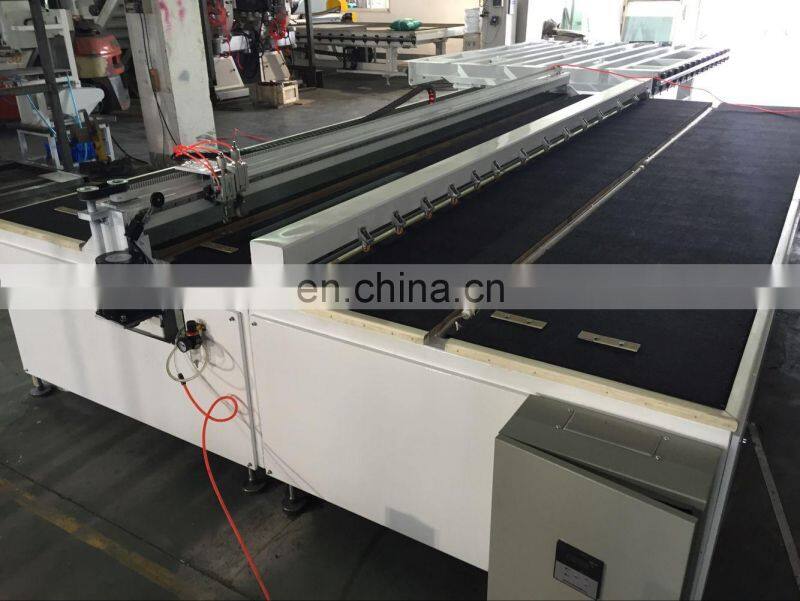

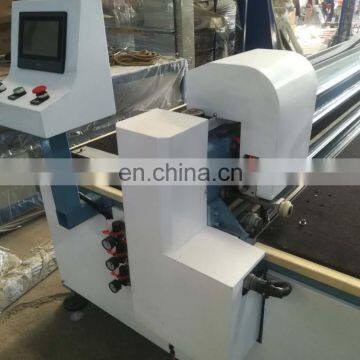

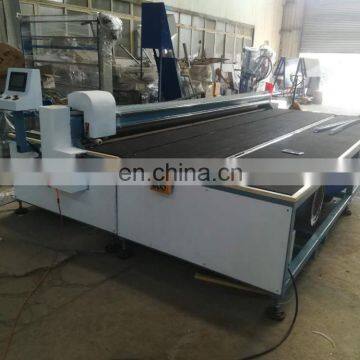

The semi-automatic single bridge laminated glass cutting table features overall automatic control, liquid crystal screen display, easy operation, high efficiency, batch glass cutting fitting for 2~19mm thickness of laminated glass. The machine can be controlled automatically to do automatic glass suction/blowing and the sequential cutting with longitudinal and cross beams if only the cutter cases distances are set respectively, after the button or the pedal switch is pressed.
Max Cutting Size (mm): 3600*2500mm
Min Cutting Size (mm):200*200mm
Work Table size: 3800*2600mm
Glass Cutting Thickness(mm):2~19
Operator: 1~2 workers
Cutting rate: 1~2 glass sheets/ min.
Cutting Parallel: ≤±0.5mm
Diagonal: ≤±0.8mm
Blower rate: 3kw
Motor rate: 1.5kw
Glass Conveyor Table -Glass Breaking Table -lamination EVA glass cutting table
Function:

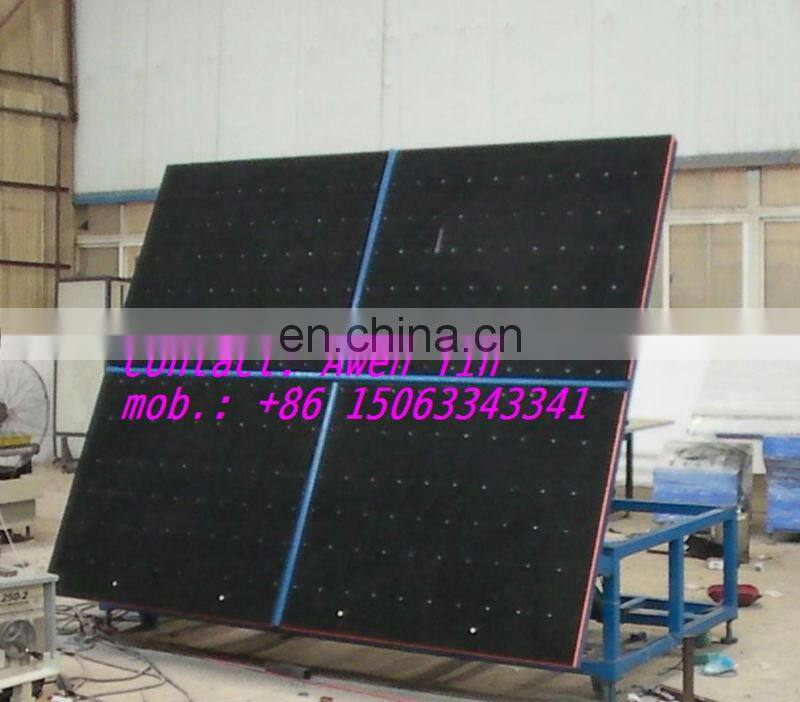

The tilting air flotation table is composed of air flotation table, “+” straight rod, air blower, air cylinder, hydraulic pressure station, electric cabinet, foot switch, etc. So it can tilt to pick up glass sheets from vertical position to horizontal position. On the working table, we can cut glass into pieces by hands. When splitting, put the cutting score of glass onto the middle part of the straight rod of the table, and close the air cushion, step the foot pedal down. The straight rod will be pushed upwards by the cylinder to break out the glass instantaneously. The table can break out glass in many positions, reducing the intensity of labor.
Max. glass size: 1800*2500mm
Glass thickness: 3-19mm
Power supply: 380v 50hz 3phase(adjustable)
Power rate: 4.5kw
Air Blower:2pcs
Foot switch: 2pcs
Hydraulic Pressure Station: 1pc
Overall dimension: 1800*2440*750mm
Weight: 1500kgs
Company Name: Jinan Sunny Machinery Co.,Ltd.
add.: zone 2,Yaoshan Industrial Park,Tianqiao Area,Jinan,Shandong,China
Contact Information:
Contact person: Ms awen
mob:86-15063343341
skype: yingying3523
Wechat: awenyin
