CNC Automatic Double glazing glass machine Automatic dubble glazing glass machine
- 30 Set / Sets per Month
- Qingdao
- T/T Credit Card
-
Insulating glass production line 1600x2000mm IG line
-
Double Glazing Glass Machine / LBZ1800 Vertical Double Glazing Glass Machine
-
Double Glazing Glass Machine / Aluminum Spacer Bar Bending Machine
-
Double Glazing Glass machine / LWJH 2000 Automatic Spacer Bar bending machine
-
Vertical Double Glazing Glass Machinery Double glazing glass production line machine
-
IGU Line 1600x2000mm Vertical Insulating Glass unit line
Product Details
| Brand Name: | Sunny | Place of Origin: | Shandong, China | Model Number: | LBZ series |
| Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 18 Months |
| Weight: | 8000kg | Dimension(L*W*H): | 22000x1560x3380 | Production Capacity: | 300-500 Pc |
| Condition: | New | Voltage: | According to customer request | Power(W): | 25KW |
| Machine Type: | Insulating Glass Production Line |
Product Description
CNC automatic Double glazing glass machine Automatic dubble glazing glass machine
Contact person: Miss Lucy Lu whatsapp or TEL : 0086 151 6904 2082
1. Features:
a. The whole line is composed of feeding part, glass washing and drying part, lamp inspection part, glass conveyor part, aluminum frame Installment part, flat (roller) press part, tilting table.
b. soft low-e brush installed can process low-e Double glass.
c. It can make triple insulating glass and shaped insulating glass.
d. Washing and drying part with full stainless steel.
e.. Man-machine interface, easy to operate
2. Technical Data
Model | Max.Glass Size | Min.Glass Size | Glass Thickness | Power | Weight | Dimension |
LBZ2500 | 2500*3300mm | 300*450mm | 3-50mm | 25Kw | 8000Kg | 22000*2000*3380mm |
LBZ2200 | 2200*3300mm | 300*450mm | 3-50mm | 25Kw | 6500Kg | 20000*2000*3000mm |
LBZ2000 | 2000*3000mm | 300*450mm | 3-50mm | 20Kw | 6000Kg | 14000*1680*2800mm |
LBZ1800 | 1800*2500mm | 300*450mm | 3-40mm | 20Kw | 5000Kg | 14000*1680*2600mm |
LBZ1800G | 1800*2500mm | 300*450mm | 3-40mm | 12.8Kw | 4800Kg | 13500*1680*2600mm |
LBZ1600 | 1600*2000mm | 300*450mm | 3-40mm | 13.59Kw | 4000Kg | 12000*1250*2600mm |
we can make the line according to you size requirements.

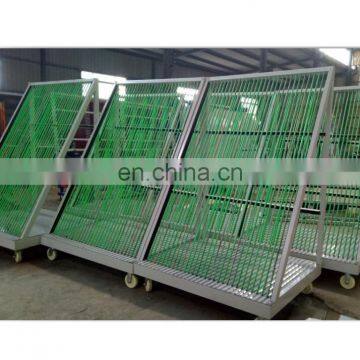

3. Pictures for your reference
Contact person: Miss Lucy Lu
wechat or whatsapp or TEL:+86 15169042082
Warmly welcome to inquiry, thanks in advance!
Others accessory machines for Double glass
Butyl extruder insulated glass machine
Silicon pump insulated glass machine
Desiccant filler insulated glass machine
Aluminum spacer bending machine insulated glass machine
Insulating glass sealing robots
Contact person: Miss Lucy Lu
wechat or whatsapp or TEL:+86 15169042082
Warmly welcome to inquiry, thanks in advance!
