Insulating glass production line 1600x2000mm IG line
It include Seven Parts, Glass Transporter part, Glass washing and drying part, Glass inspecting part, Aluminum spacer bar install part, Flat press part, Insulating Glass transporter, Tilting table.
(glass washing and drying part with stainless steel)
| some Electric part for reference | 1 |
| PLC with Japan MITSUBISHI | 2 |
| Touch screen with Taiwan HSINTEK | 3 |
| Transducer with Taiwan DELTA | 4 |
| Coating detection systerm with Japan Ormon | 5 |
Servo Motor with Taiwan DECO |
6 |
We can make this machine according to customer producing Double glazing glass size.
Now I list some styles for reference.
| Model | Max. Glass size | Min.Glass size | Glass thickness | Brush | Max.washing | Power | weight | size of line | |
|
LBZ2500
|
2500x3000mm | 300x450mm | 3-50mm | 3Pairs | 12m/min | 25kw | 9000kg | 22000x2000x3380mm | |
|
LBZ2000
|
2000x2440mm | 300x450mm | 3-50mm | 3Pairs | 12m/min | 20kw | 6000kg | 14000x1680x2800mm | |
|
LBZ1800
|
1800x2440mm | 300x450mm | 3-50mm | 3Pairs | 10m/min | 18kw | 5000kg | 14000x1680x2600mm | |
|
LBZ1600
|
1600x2000mm | 300x450mm | 3-25mm | 2Pairs | 10m/min | 13.59kw | 4000kg | 12000X1250X1600mm |
Warmly welcome to contact me if you have any request and questions.

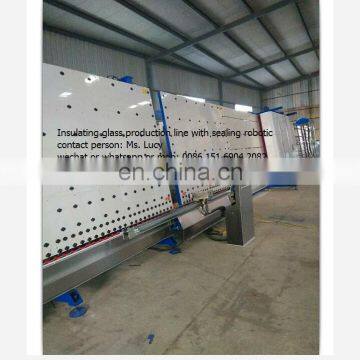

1600x2000mm Insulating glass line with sealing robot
1600X2000 Semi automatic Insulating glass production line machine (Roller press model)
Roller Press style Double Glazing glass Production Line
Guranteen and aftersales service
(1) Guaranteen the machine within 18 months
(2) we can send our engineer to customer factory to Install machines and train customer's workers
