JL-CNC-4228 CNC Automatic Shaped Glass Cutting Line
Feature:
- High automation
- Optimize software, save glass material
- High speed and high work efficiency
- Any shape available

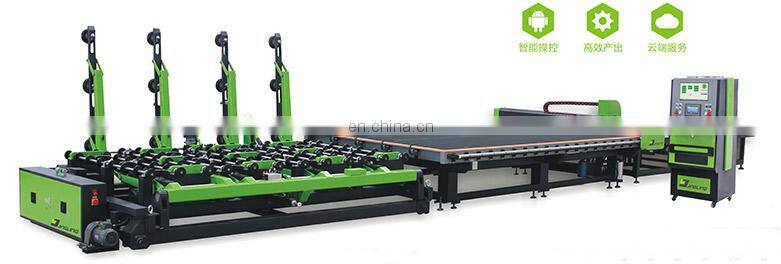

JL-CNC-4228 CNC Automatic Shaped Glass Cutting Line
Introduction
The line mainly contains three sections:

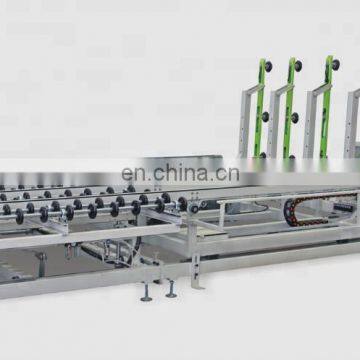

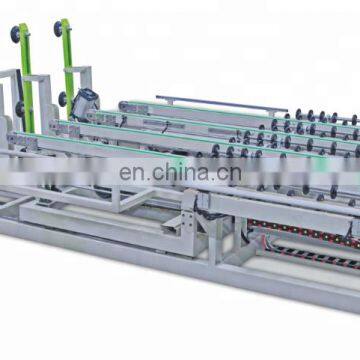

1. JL-QSP-4228 Automatic Glass Loading Table
2. JL-CNC-4228 CNC Automatic Shaped Glass Cutting Machine
3. JL-BQZ-4228 Glass Breaking Table

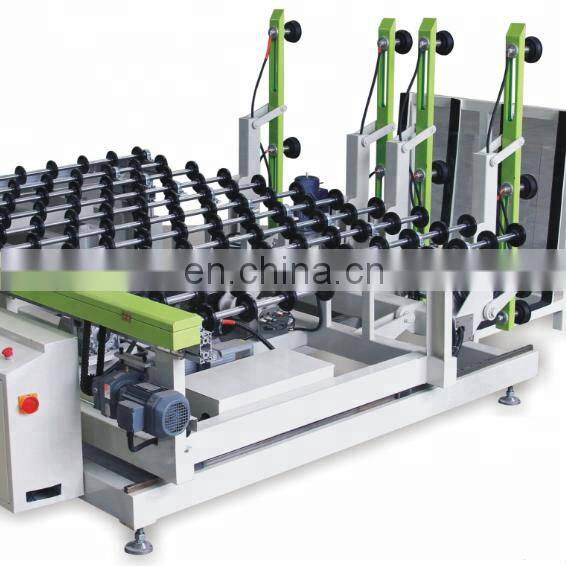

1. JL-QSP-4228 Automatic Glass Loading Table
Characteristic
- Mn bridge steel (Q345A ), perfect surface treatment
- High quality imported NBR material vacuum chuck, Japan SMC vacuum switch
- Touch screen operation
- A key reset function
- Alarm system for safety and wrong operation
- Flat four-bar linkage lift structure (much more stable than guide screw lift)
- High precision and wear-resisting gear and chain, full-enclosed chain
- Imported PU material wheels
- Germany technology vacuum pump 1.5Kw

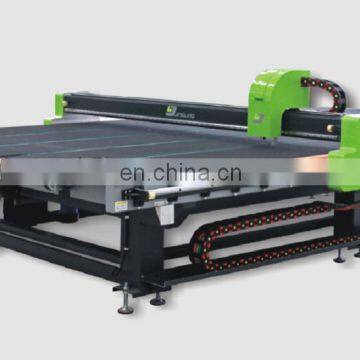

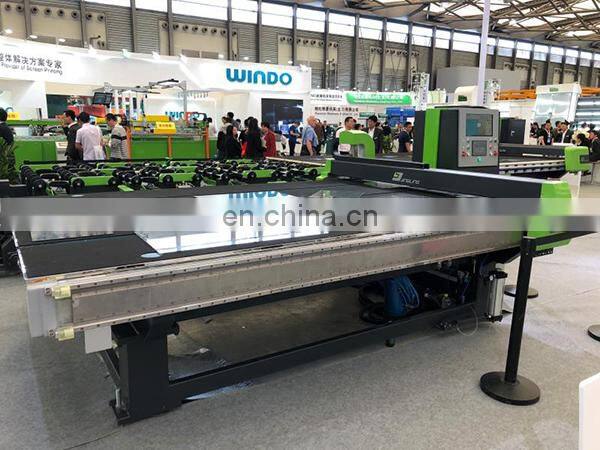

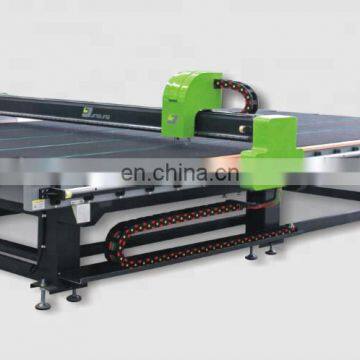

2.JL- CNC Automatic Shaped Glass Cutting Machine
Characteristic
- Mn bridge steel (Q345A ), perfect surface treatment
- Optimized table structure makes sure the stable table, dynamic balance and mechanics intensity perfectly matched
- Cutting pressure automatic adjusted according to glass thickness
- Cutter head 360 degree rotating
- Climbing wheels on the cutter head for protecting the cutter assembly and the glass
- Water proof surface panel, stainless steel side covered, water and deformation resisting
- High quality felt, perfect level, anti-static
- Automatic side locating system, pneumatic mechanical and photoelectric joint locating
- Self-lubricating guide rail
- Air filter for keeping the oil clean
- Air float and belt transmit
- Linear guide rail
- Automatic oiling for transmission system

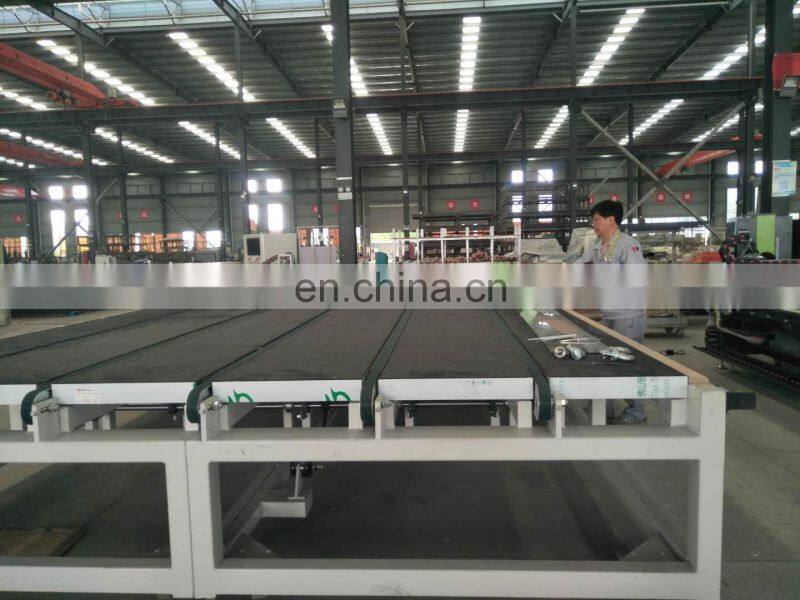

3. JL-BQZ-4228Glass breaking table
Air float function
High density table panel
Breaking bar: 1+2
Power: 3KW
The main performance of motion Controller (Galil)
- Running fast, smooth operation, high precision control, the controller modular structure.
- Line cutting mode, optical positioning cutting mode, cutting mode directly by the option set free. Process can readily achieve automatic cutting mode with the dry run mode.
- After a full glass pressure store, disposable cutting thickness specifications of the input pressure to save, you can directly used.
- Machining path display real-time tracking and timely recording moving coordinate axis status, I / 0 status, fault diagnosis and alarm automatically record.
- Receive a variety of processing documents, accept standard G code Optima and other nesting software, AUTOCAD DXF file, the system comes with graphics editing software(Exactly the same way with Bottero editor).
- Security can be set under the knife away. Editing files can not trimming, improve the utilization of glass.
- Gallery nesting program, selected from the gallery shaped, set the relevant parameters, the number of processing, automatic nesting, generate toolpaths.
- Compensation: Tool eccentricity compensation, backlash compensation, pitch compensation.
- Optical positioning function (accurately determine the actual position of the glass), according to the actual position and the deflection angle, automatic adjustment of the cutting.
- Can be realized by setting options in English interface switching, and imperial, metric programming. Easy to use foreign users.
- Various protection: Includes soft and hard limit, blade pressure limit, external emergency stop control, etc.
- Speed increase / decrease buttons timely optimize machine cutting speed.
- Man-machine interface is simple and elegant, simple parameter adjustment, less need for the operator to modify the parameters, simple and intuitive, requiring low operating personnel.
- Find edge speed, back to zero faster.
- Cutting speed: 160m / min.
- Has a relatively rich graphics library, you can expand the gallery.
- Shaped scanning high precision, simple graphics can be saved directly processed.
- Cutting interface displayed directly cut a small piece size (with the OPTIMA software).
- Opened directly from within the software optimization software.
- Under the pipeline mode automatically wrap view of optimization software program, continuous processing.
- Fast patrol side positioning feature, you can grab a one-time patrol edge signal, improve work efficiency.
OPTIMA OPTIMIZATION SOFTWARE( Italy)
- The main performance of optimization software
- Optimization results can be imported in the office to do;
- Cutting programs can be created and edited manually.
- With a copy and move functions.
- You can manually edit the cutting sequence.
- XYZ mode can be used to quickly create cutting plan.
- Can be a variety of original pieces and small pieces while optimizing.
- Optimized layout no size limit.
- Optimization results rotate, mirror management.
- Cutting a small piece of the priority management to optimize.
- Priority management optimization original film.
- Original film library management.
- 20 kinds of efficient optimization algorithms.
- Graphics can be edited on the cutting.
- Label design and label printing (Label-WAY).
- Optimization results clearly printed report.
- Excel data file import.
- Low-E and laminated glass cutting management.
- Graphics library containing 350 parametric graphic, including all common graphic types (Geo-Way).
- Two-dimensional CAD system with profiled scan processing functions (Cad-Way).
- The digital signal is automatically converted to a numerical control system from the graphical point forming.
- Software interface has a choice of languages, including Chinese interface selectable.
- Tracking the latest international software development, providing real-time upgrade version, for customers to achieve the latest functional requirements.
26years
24*365service
many patents

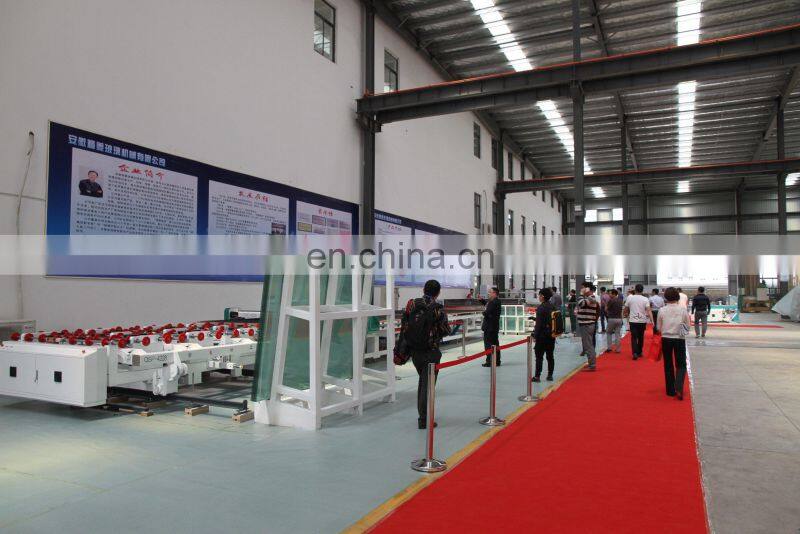

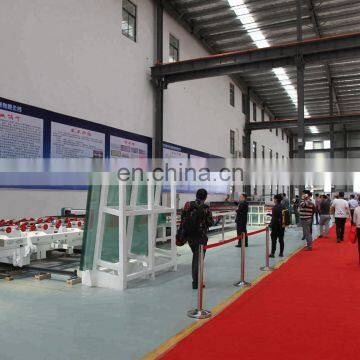

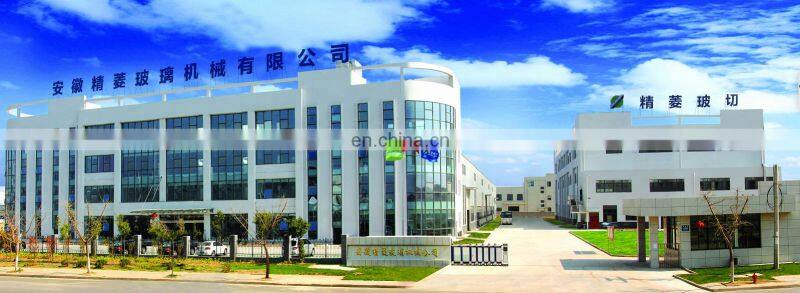

Factory

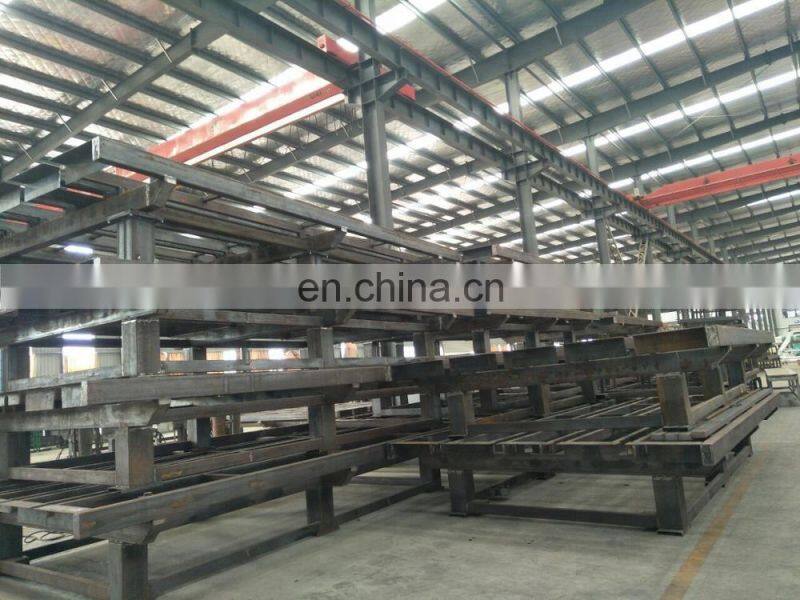

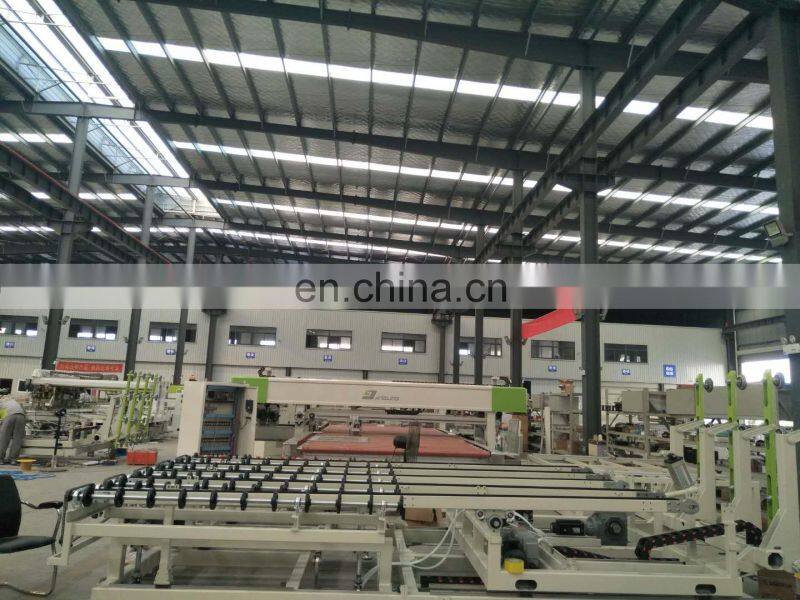

Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Packing Details : Container
Delivery Details : 30 days after order
Best stainless
Best stainless steel wing nut anchor bolt for construction fastener bags+cartons+pallets according to customer ' s requirement,Best stainless steel wing nut anchor bolt for construction fastener bags+cartons+pallets according to customer ' s requirement,
Favorable Comment
Favorable Comment
Favorable Comment
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
