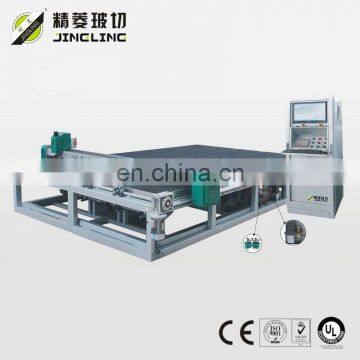

JL-CNC-4028 CNC Automatic Shaped Glass Cutting Machine
CNC Glass Cutting Machinery fiber glass cutting machine
Characteristic
- Mn bridge steel (Q345A ), perfect surface treatment
- Optimized table structure makes sure the stable table, dynamic balance and mechanics intensity perfectly matched
- Cutting pressure automatic adjusted according to glass thickness
- Cutter head 360 degree rotating
- Climbing wheels on the cutter head for protecting the cutter assembly and the glass
- Water proof surface panel, stainless steel side covered, water and deformation resisting
- High quality felt, perfect level, anti-static
- Automatic side locating system, pneumatic mechanical and photoelectric joint locating
- Self-lubricating guide rail
- Air filter for keeping the oil clean
- Air float and belt transmit
- Linear guide rail
- Automatic oiling for transmission system
Mechanical parts
Name |
Brand |
Table surface panel |
High-density waterproof panel, roughness≤±0.20mm/m (Imported material) |
Rack and rail |
ALTANTA GEMERGY |
Belt/band pulley |
KONYEAR |
Cutter wheels and holder |
BOHLE GEMANY |
Electric parts:
Name |
Brand |
Touch screen |
LG KOREA |
Relay |
OMRON JAPAN |
Terminal |
WAGO GERMANY |
Air-break switch/low-voltage apparatus/button |
MOELLER GERMANY |
Servo motor |
YASKAWA JAPAN |
Proportioning solenoid valve |
SMC JAPAN |
A.C. contactor |
SCHNERDER |
Laser Sensor |
PANASONIC |
Position switch |
OMRON |
Control card |
NAIKA (GERMANY)/GALIL(USA) |
Frequency converter |
DELTA |
Pneumatic components |
AIRTAC |
Technical parameter:
Model |
Max. glass size |
Thickness |
Dimensions (L*W*H) |
Max. speed |
Air pressure |
CNC-1915 |
1500*1200mm |
2~19mm |
2480*2240*1275mm |
150m/min |
0.6~0.8MPa |
CNC-2620 |
2440*1830mm |
2~19mm |
3560*2912*1300mm |
150m/min |
0.6~0.8MPa |
CNC-3725 |
3660*2440mm |
3~19mm |
4880*3412*1300mm |
160m/min |
0.6~0.8MPa |
CNC-4028 |
4000*2800mm |
3~19mm |
5320*3100*1300mm |
160m/min |
0.6~0.8MPa |
CNC-5033 |
5000*3300mm |
3~19mm |
6150*4212*1300mm |
160m/min |
0.6~0.8MPa |
CNC-6033 |
6000*3300mm |
3~19mm |
7150*4212*1300mm |
160m/min |
0.6~0.8MPa |
