WL-CNC 3826 Semi-automatic Glass Cutting Machine for Float Glass&low-e Glass

Qingdao Yuntai Industry Co.,Ltd
WL-CNC 3826 Semi-automatic Glass Cutting Machine for Float Glass&low-e Glass thumbnail-1
WL-CNC 3826 Semi-automatic Glass Cutting Machine for Float Glass&low-e Glass photo-1
US$ 10,330 - 11,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
WEILI
Place of Origin:
Shandong, China
Certification:
CE & SGS
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WEILI
Place of Origin Shandong, China
Warranty 1 Year
Weight 3000KG
Dimension(L*W*H) 4480x3280x1140
Production Capacity 700-800pieces/8h
Condition New
Voltage optional
Power(W) 750W
Machine Type Glass Cutting Machine

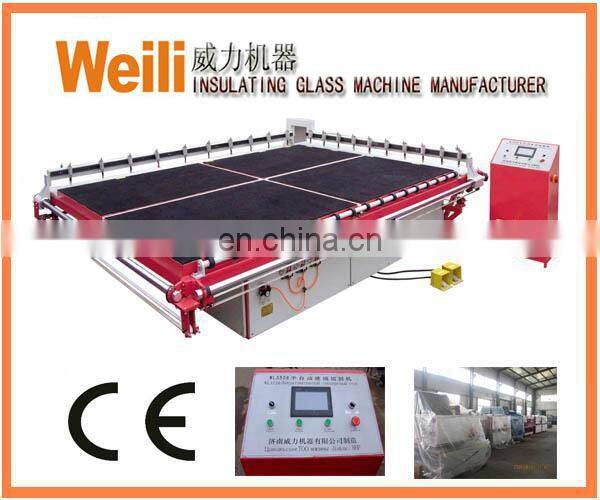

WL-3826 Semi-Auto Glass Cutting Machine

WL-CNC 3826 semi-automatic glass cutting machine for float glass&low-e glass



Features and Functions:



1. Double mechanical movement bridge system, automatically driving by motor.



2. Multi cutters can be equipped on the bridge for bulk cutting.



3. PLC control system for easy setting of cutting speed and size.



4. Imported plastic table surface, bearing and rail is more reliable and endurable.



5. Air float cutting table make it easy loading and unloading glass sheet.



6. Auto breaking system.



7. Digital measurement display system is optional.



8. Buyers special specifications are available.



9.Glass loader can be optional.



Main technique parameter:



 NO

  Model

Machine's Size

(LxWxH mm)

 Table's  Size

(LxWxHmm)

Max  Glass Size(LxWmm)

Min Glass Size(LxWmm)



Cutting thickness



 Accuracy

(parallelism)

Accuracy(catercomer)

Total Weigh

(KG)

 Voltage

Cutting Speed

(m/min)

Power(KW)

 1



WL-3826

 4480x3280x1140

 3800x2560x830

3660x2440

 20x20



3-19 mm



 ±0.10



 ±0.20



 3000

 380V/50HZ

0-120

≤8

 2

 WL-2621

 3160x2720x1140

 2500x2000x830

 2440x1830

 20x20



3-19 mm



±0.10



 ±0.20



 1650

 380V/50HZ

 0-120



≤8











WEILI Company

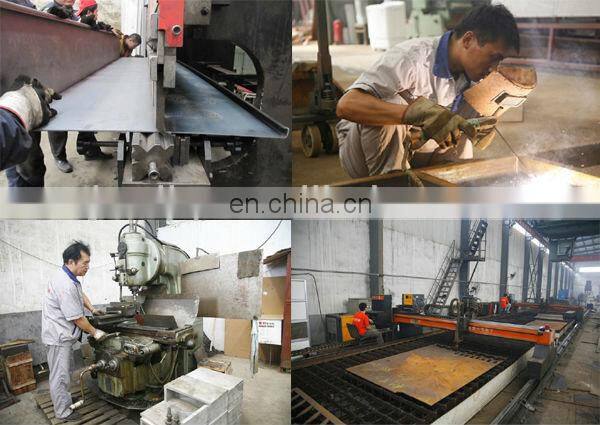

Machine frame making process:



WL-CNC 3826 semi-automatic glass cutting machine for float glass&low-e glass

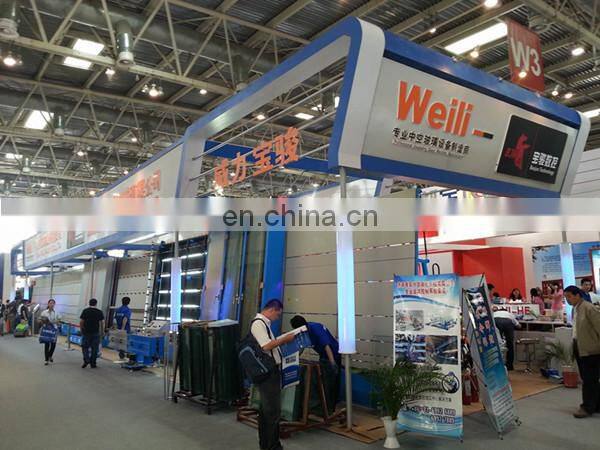

Glass exhibition:



WL-CNC 3826 semi-automatic glass cutting machine for float glass&low-e glass



Weili friendly customers:



WL-CNC 3826 semi-automatic glass cutting machine for float glass&low-e glass



 After -Sales Service





A.  One year warranty service and all life maintenance.



B.  Profrofessional after-sales service team support face-to-face trainning and installation to customer's factory.



C.  24 Service and support remote control.
