Silicone Sealant Glass Machine

Silicone Sealant Glass Machine thumbnail-1
Silicone Sealant Glass Machine thumbnail-2
Silicone Sealant Glass Machine thumbnail-3
Silicone Sealant Glass Machine thumbnail-4
Silicone Sealant Glass Machine thumbnail-5

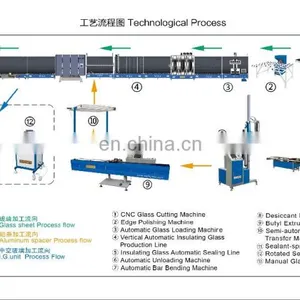

Silicone Sealant Glass Machine thumbnail-6
Silicone Sealant Glass Machine thumbnail-7
Silicone Sealant Glass Machine photo-1
Silicone Sealant Glass Machine photo-2
Silicone Sealant Glass Machine photo-3

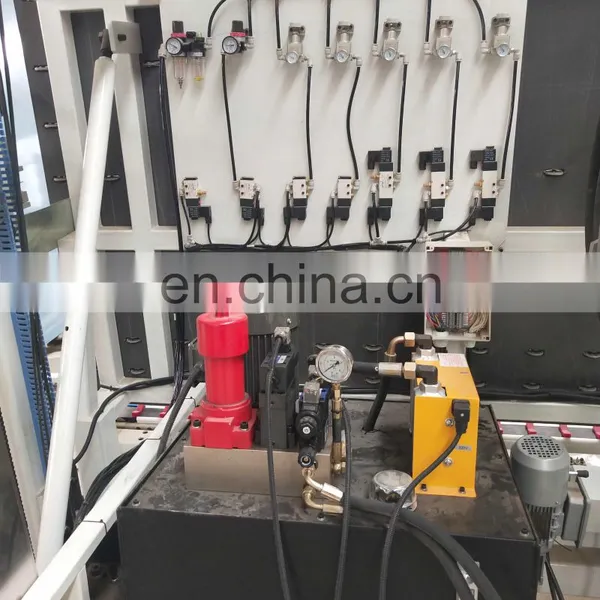

Silicone Sealant Glass Machine photo-4
Silicone Sealant Glass Machine photo-5

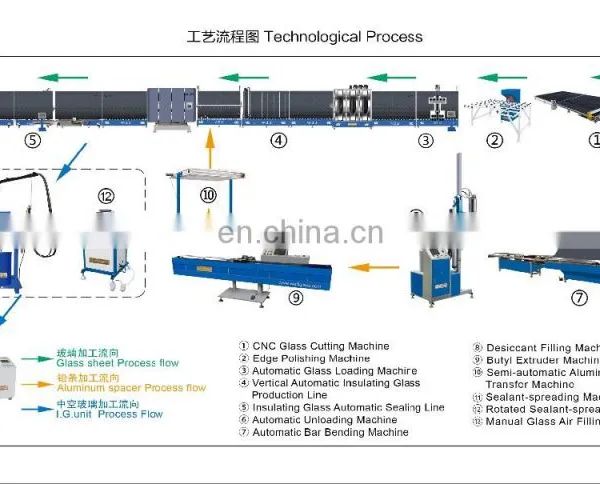

Silicone Sealant Glass Machine photo-6
Silicone Sealant Glass Machine photo-7
US$ 61,672 - 75,376 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
WGM
Place of Origin:
Shandong, China
Certification:
CE&BV&SGS
Contact Supplier Request Quote Chat Now
Qingdao Yuntai Industry Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WGM
Place of Origin Shandong, China
Warranty 1 Year
Weight 3500KG
Dimension(L*W*H) 8750*3000*3400mm
Production Capacity 20sets/month
Condition New
Voltage 380V
Power(W) 13KW
Machine Type Insulating Glass Production Line

                                                                WL2500-31automatic insulating glass silicone sealant root



Main feature and function:



1 this sealing line is divided into 3 parts

2 can keep insulating glass automatic continuously sealing, sealing with high efficiency

3 single sealant supply system, which can be changed easily through the touch screen

4 adopted world-renowned brand of servo control system, motion controller and controller card, performance is stable, besides we adopt 9 axis servo motor and make our glue with high precise.

5sucker can suck the middle of the glass make the glass transmission more stable

6ecise adjustment for the mixing ratio of the sealant.

7 can measure the depth of extruding sealant



Main spare parts

Brand

Spare parts

Brand Name

Remarks



1



Servo motor

DELTA

Taiwan

2

Control system

DELTA

Taiwan

3

Frequency changer

DELTA

Taiwan

4

Photoelectric switch

OMRON

apan

5

Fiber-optic switch

SUNX

Japan

6

Low-voltage component

Schneider

France

7

Hydraulic system

Beijing huade

China

8

Electric proportional valve

SMC

Japan

9

Cylinder and Gas source processor

AIRTAC

Taiwan





Technical parameter



Product model

WL2500-31

WL2500-32

Min.glass size

300*450mm

300*450mm

Max.glass size

2500*3500mm

2500*3500mm

Glass thickness

3-12mm

3-12mm

Sealant-mixing system

Single Sealant-mixing system

Two Sealant-mixing system

Insulating glass thickness

12-56mm

12-56mm

Sealing speed

5-30m/min

5-30m/min

Sealing width

6-24mm

6-24mm

Sealing depth

2-15mm

2-15mm

Conveyor speed

0-48m/min

0-48m/min

Power supply

13KW

13KW

Air supply

0.5-0.8Mpa

0.5-0.8Mpa

Working height

520-580mm

520-580mm

Dimension

8750*3000*3400mm

8750*3000*3400mm

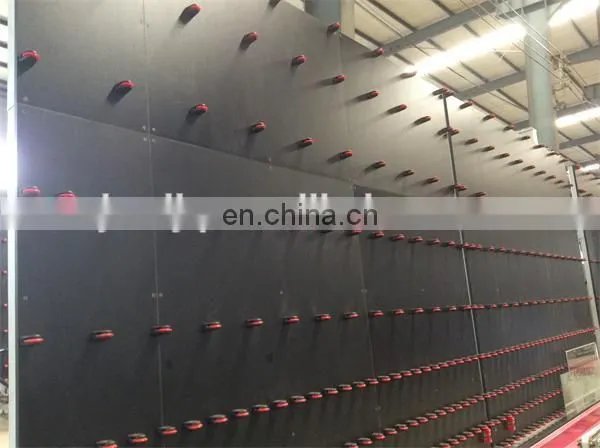

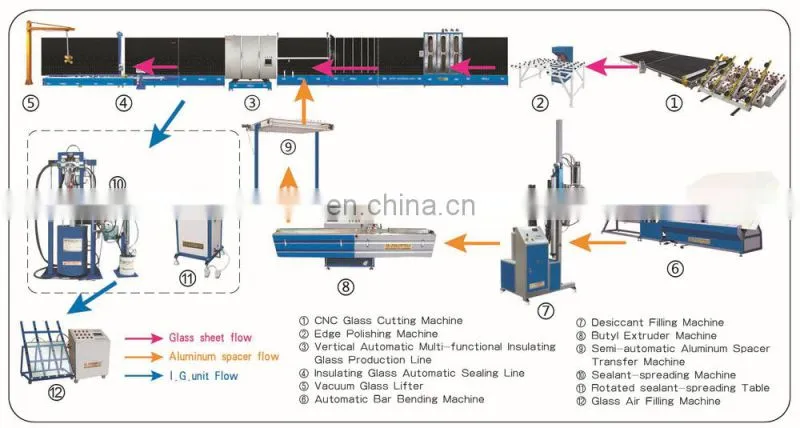

silicone sealant glass machine

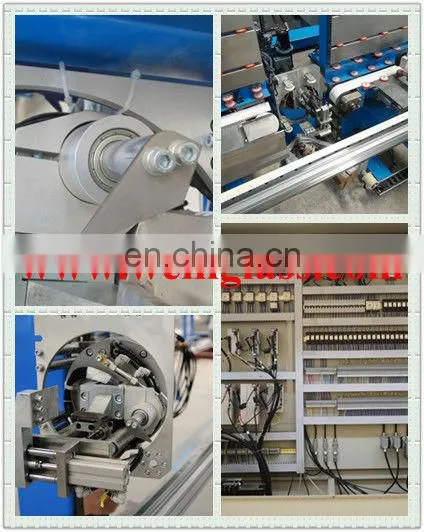

        main machine details

 silicone sealant glass machine



silicone sealant glass machine
