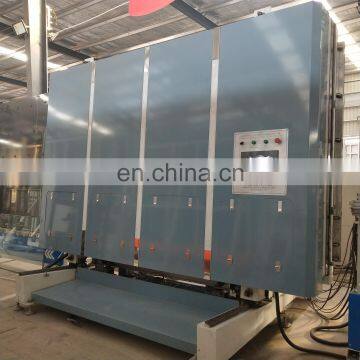

LBW2500PC Jinan WEILI Cost-effective Double Glazing Glass Machine
Main component:
NO. | Name | Brand | Brand Place |
1 | PLC | OMRON | JAPAN |
2 | 10.0 inch touch screen | KINCO | SHENZHEN |
3 | Photoelectric switch | AUTONICS | KOREA |
4 | Limit switch | AUTONICS | KOREA |
5 | Transducer | TAIAN | TAIAN |
6 | Vacuum generator&sucker | SMC | JAPAN |
7 | Low voltage electric components | AIRTAC | TAIWAN |
8 | Solenoid valve | AIRTAC | TAIWAN |
9 | Cylinder | AIRTAC | TAIWAN |
10 | Liner guide rail | HIWIN | TAIWAN |
11 | Bearing of cleaning section | SKF | SWEDEN |
12 | AC digital servo motor | TECO | TAIWAN |
13 | Drive | TECO | TAIWAN |
14 | Transmission motor | CPG | ZHEJIANG |
15 | Hydraulic Parts | HUA DE | BEIJING |
16 | Triple | AIRTAC | TAIWAN |
17 | Gas-type Filling | AIRTAC | TAIWAN |
18 | Oil pump | JILI | TAIWAN |
19 | Servo motor | SIEMENS | GERMANY |
Main Features:

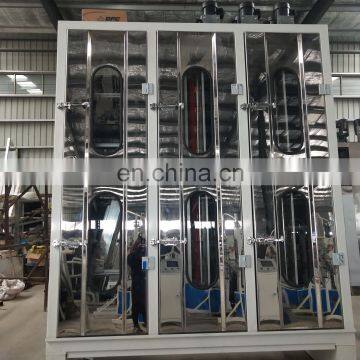

1. Glass washing & drying section:
A. Glass washing & drying section is made of stainless steel.

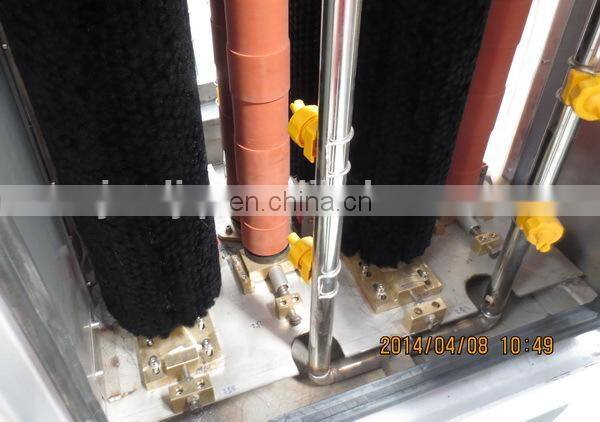

B. Four-level clearance: three pairs of brushes and one pair of sponge rail, guarantee the washing quality. Six high-temprature nylon brushes, diameter is 180mm. The first two are hard brushes
C. Washing speed is 12m/min, equipped with water heating system. SKF Oil-free bearing avoid the oil molecular pollution to glass.
D. Six delivery solid rollers, are acid-proof, alkali-proof and anticorrosive. The distance is adjustable automatically.
F.NC bending rhomic air knief. Circle wind saves energy and avoid the wind pollution. Sponge down the noise.

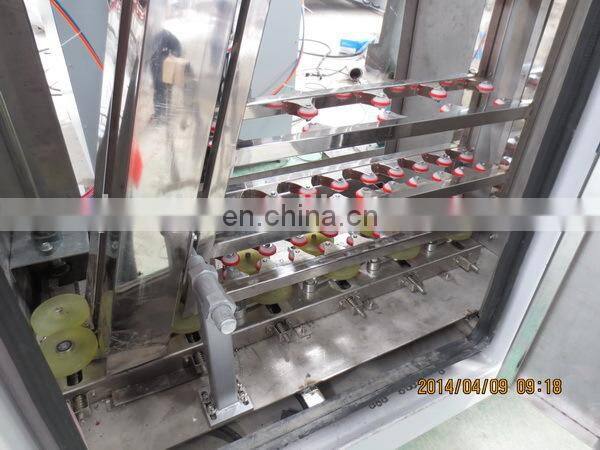

2. Glass press section:
A. Driven by hydraulic system ( WEILI different from others), more stable.
B. Two retainers, prevent the big size glass from falling. also reduce wear to delivery wheels. ( WEILI different from others)
C. Process double & triple glass, over-long glass, unequal glass. Stepping motor driven
D. The press board ca be opened to 450mm, easy to maintance.
E. Suckers are distributed regionally. Vacuum genetor for sucker from Taiwan make sure no dislocation.
Technical parameter:
Power supply: | 380V 50Hz |
Air consumption: | 800L/min |
Power: | 34kW |
Max. process dimension: | 2500*3000mm, 2500*3500mm(over long unit) |
Min. process dimension: | 450*450mm |
Max thickness of the insulating glass: | 40mm |
Max. process speed: | 45m/min |
Washing glass thickness: | 2-12mm |
Dimension: | 24300*2600*3450mm |
Total weight: | 7500kg |
Model | Min.Glass Size (mm) | Max.Glass Size (mm) | Low-E Glass | Stepped Glass | Triple Glass | Dimension (mm L*W*H) | Sections |
LBZ2500PC-08 | 450*450 | 2500*3000 | Optional | Optional | yes | 24300*2600*3450 | 8 |
LBZ2500PC-07 | 450*450 | 2500*3000 | Optional | Optional | yes | 21300*2600*3450 | 7 |
LBZ2500PC-06 | 450*450 | 2500*3000 | Optional | Optional | yes | 18300*2600*3450 | 6 |
1. One year warranty service and all life maintenance.
2. Profrofessional after-sales service team support face-to-face trainning and installation to customer's factory.
3. 24 Service and support remote control.

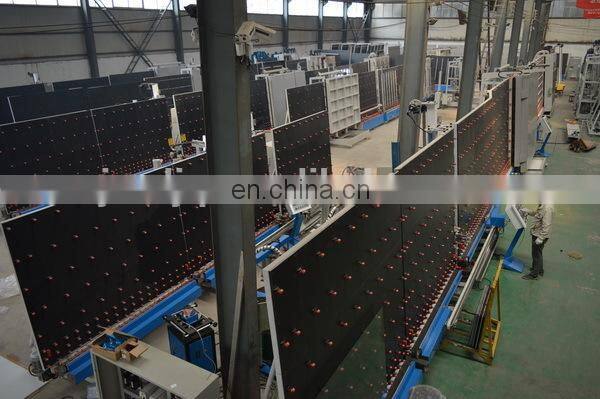

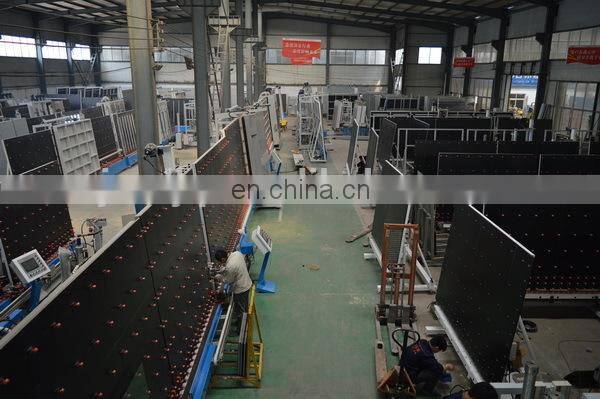

Welcome to visit our factory
