Land Surveying Equipment Total Station Reflector Total Station Price
GDM-152M Technical Parameter
Distance Measurement Section
Range Single prism: 3000m
Three prism: 5000m
Accuracy: ±(2mm+2ppm·D), ±(3mm+2ppm·D)
Unit: m/ft
Display Maximum: 99999999.9999m
Minimum: 0.1mm
Measuring time Precise model:1S, Track model:0.8S
Number of time Set: 1 ～ 99
Meteorologic correction: Input the value and correct automatic
Prism constant Input the value and correct automatic
Angle Measurement Section
Method: Absolute coding
Grating diameter: 79mm
Minimum reading: 1″
Detection Horizontal: Diametrical detection Vertical: Diametrical detection
Accuracy: 2″
Telescope Section
Imaging: Positive
Length: 170mm
Effective aperture: 48mm
Magnification 30×
Angle of vision: 1.5°
Distinguish ability: 3.5″
Minimum focus distance: 1.5m
Compensator
System: Double axis photoelectric tilt sensor or Single axis liquid tilt sensor
Working range: ±3′
Distinguish ability: 1″
Display Section
Type: Double sides,160×80 LCD Display
Data Transmission
Port USB, RS-232C
Capacity 40,000 data at least
Others
Plummet Optical or Laser plummet
Power: Rechargeable lithium battery,DC7.2V,3000mAh
Continuous working time: 8 hours at least
Size: 168×165×348mm
Weight: 6.8Kg
Working temperature: -20℃ ～ 50℃

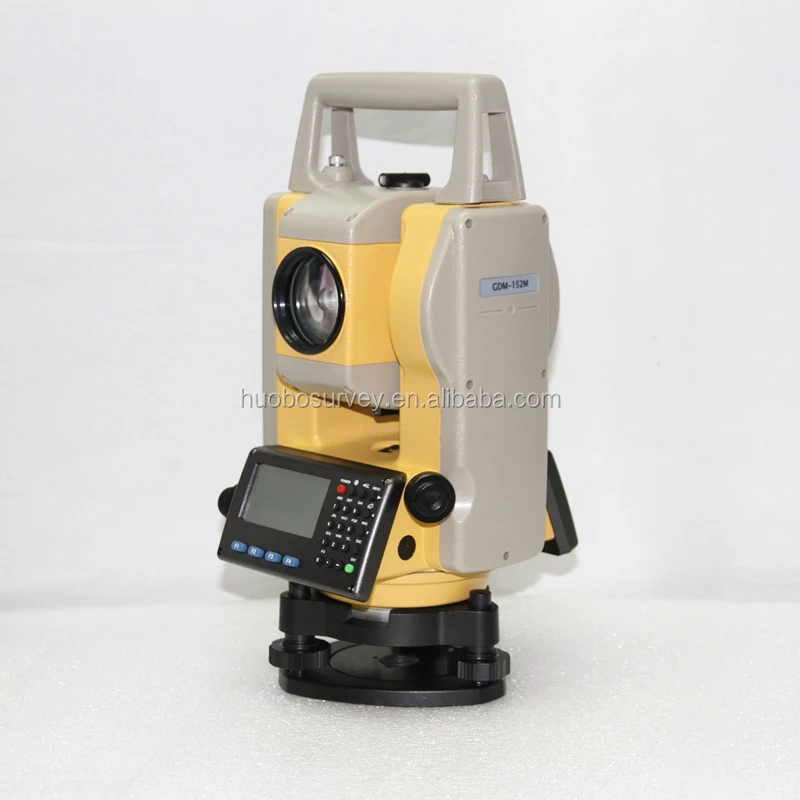

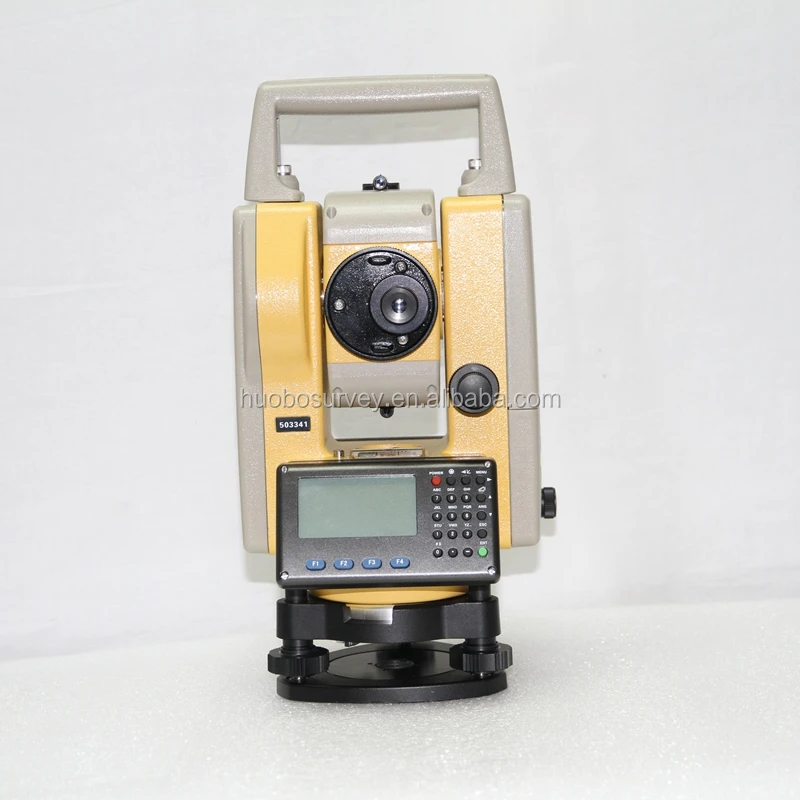

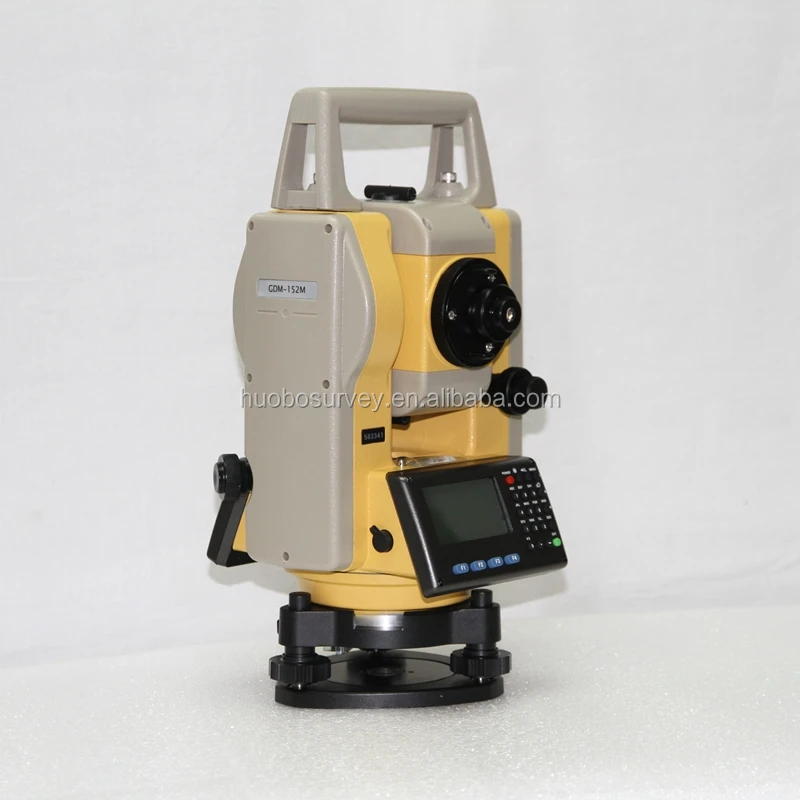

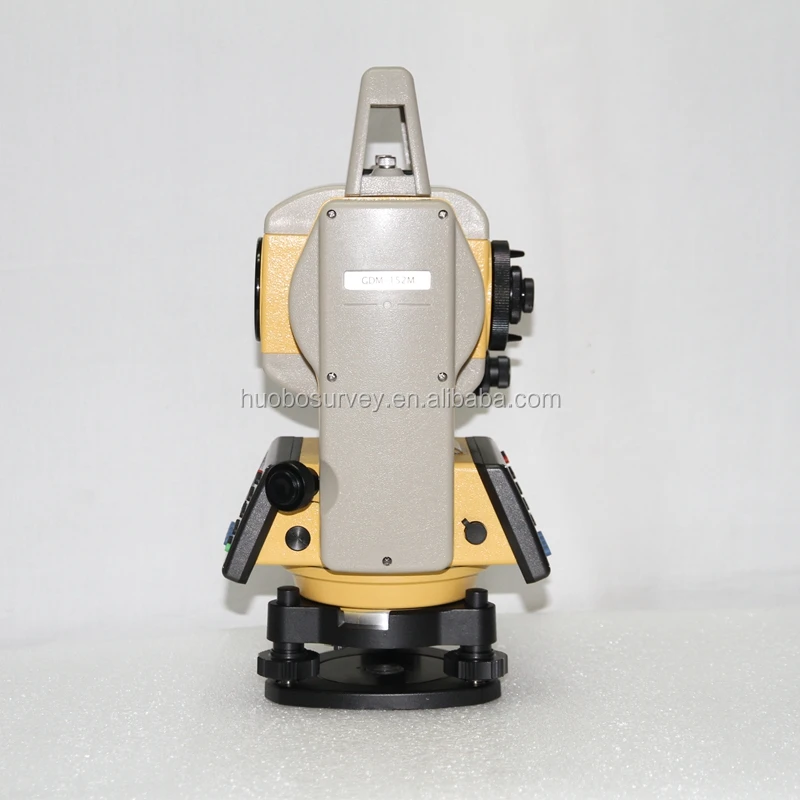

Product Show
