Light & Portable Type Total Station Hi-Target Total Station Supplier

Light & Portable Type Total Station Hi-Target Total Station Supplier thumbnail-1
Light & Portable Type Total Station Hi-Target Total Station Supplier thumbnail-2
Light & Portable Type Total Station Hi-Target Total Station Supplier thumbnail-3
Light & Portable Type Total Station Hi-Target Total Station Supplier thumbnail-4
Light & Portable Type Total Station Hi-Target Total Station Supplier thumbnail-5
Light & Portable Type Total Station Hi-Target Total Station Supplier photo-1

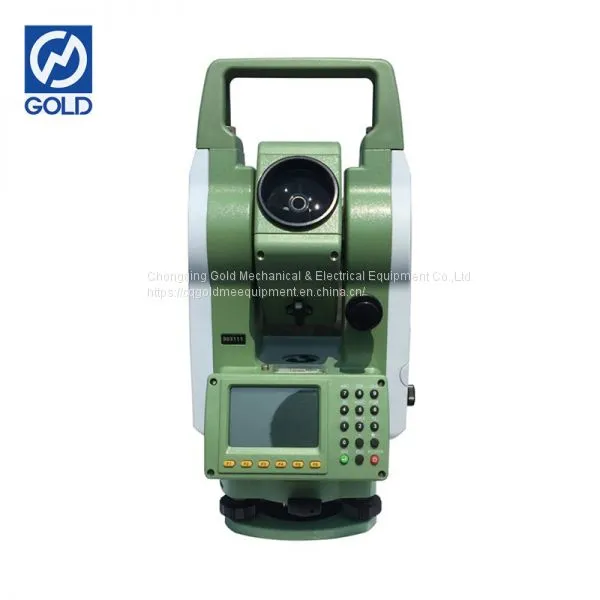

Light & Portable Type Total Station Hi-Target Total Station Supplier photo-2

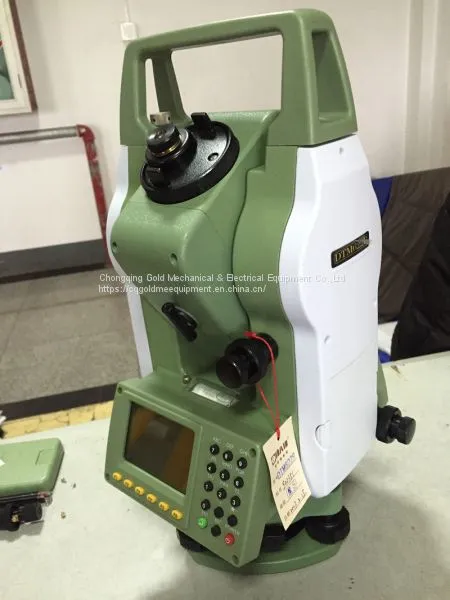

Light & Portable Type Total Station Hi-Target Total Station Supplier photo-3
Light & Portable Type Total Station Hi-Target Total Station Supplier photo-4
Light & Portable Type Total Station Hi-Target Total Station Supplier photo-5
US$ 1000 - 5000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
GOLD
Place of Origin:
China
Model Number:
GDM-622R4
Contact Supplier Request Quote Chat Now
Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai, Ningbo, Shenzhen, Guangzhou etc.
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name GOLD
Place of Origin China
Model Number GDM-622R4

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd


Foundation Engineering Drilling Equipment Drilling Rigs Drill Depth 50-100M



Foundation Engineering Drilling Equipment Drilling Rigs Drill Depth 50-100M



Chongqing Gold Mechanical & Electrical Equipment Co., Ltd is specialized in manufacturing and developing of Geophysical Exploration Instrument such as Resistivity Meter, IP Instrument, Resistivity Image, Seismic Instrument, Electromagnetic Instrument, Borehole Camera, Borehole Logging System, Water Level Meter; Borehole Drilling Equipment including Core/ Water Well/ Tunnel/ Engineering/ Anchor Drilling Rigs&Accessory and Geodetic Surveying Instrument(GNSS RTK System, Total Station, GIS Mapping and Echo Sounder.



Light & Portable Type Total Station Hi-Target Total Station Supplier



GDM-622R4 Technical Parameter

Telescope

Image: Erect

Magnification: 30×

Effective aperture: 48mm

Resolving power: 3.75″

Minimum focus: １ｍ

Stadia ratio: 100

Sight distance precision: ≤0.4％D

Tube length: 172mm



Angle Measurement

Measuring method: Absolute Coding

Diameter of circle (vertical, horizontal): 79ｍｍ

Minimum reading: 1″、5″、10″Selectable

Measuring unit: 360°／400gon／6400mil Selectable

Vertical angle: ０° Zenith０°／Horizontal０°Selectable

Accuracy: 2″



Distance Measurement

Single prism: (under fair weather condition)

GDM-622R4: 2.5km

Triple prism: (under fair weather condition)

GDM-622R4: 5km



Codak gray card(under fair weather condition) white flour 90% reflectivity

GDM-622R4: 00m

Display Max: 999999.999ｍMin: １ｍｍ

Unit: m/ft Selectable

Accuracy: prism:±(3ｍｍ＋2ｐｐｍ•D);

no prism: ±(5ｍｍ＋3ｐｐｍ•D)



Measuring time

Fine single shot: 3S

Tracking: 0.8 S

Meteorological Correction Manual input, Auto correction

Reflection prism correction Manual input, Auto correction

Plate vial: 20″/2mm

Circular vial: 8′/2mm



Vertical Compensator

System: Single axis, double axis liquid electronic sensor compensation

Compensation range: ±3′

Resolving power: １″

Optical Plummet

Image: Erect

Magnification: 3×

Focusing range: 0.3m～∞

Field of view: 5°



Display

Type: LCD, Four lines, digital



Data Communication

Port: RS－232C,SD Card,Bluetooth  Selectable

On-board Battery

Power resource: Rechargeable Ni-H battery

Voltage: DC7.2V

Continuous operation time: BDC 3000mAh

Angle measurement: 20 hours

Distance measurement: 8 hours



Operation Environment

Operating temperature: －20°～＋45℃



Size & weight

Dimension:180mm×175mm×355mm

Weight: 6.5kg



Product Show

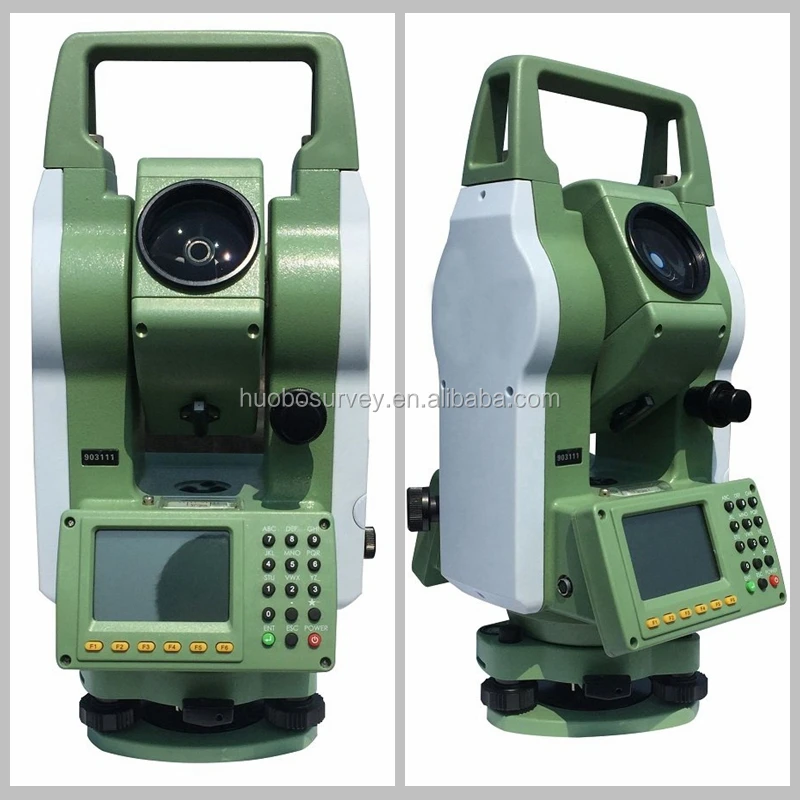

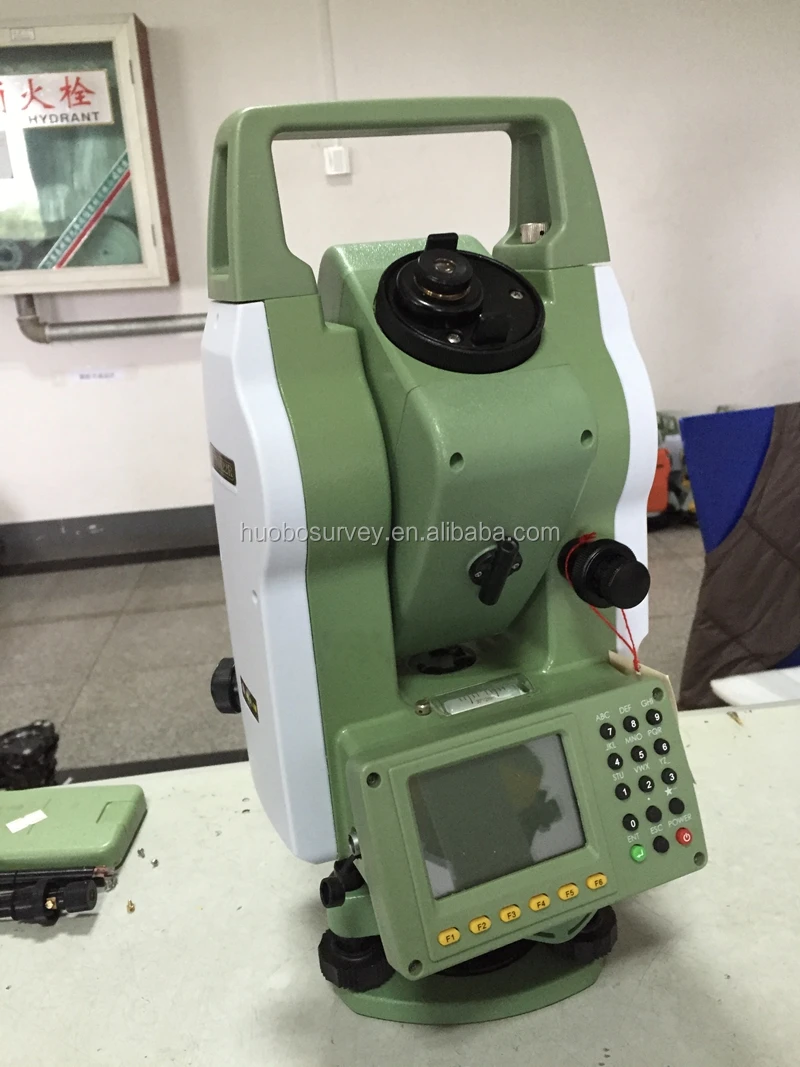

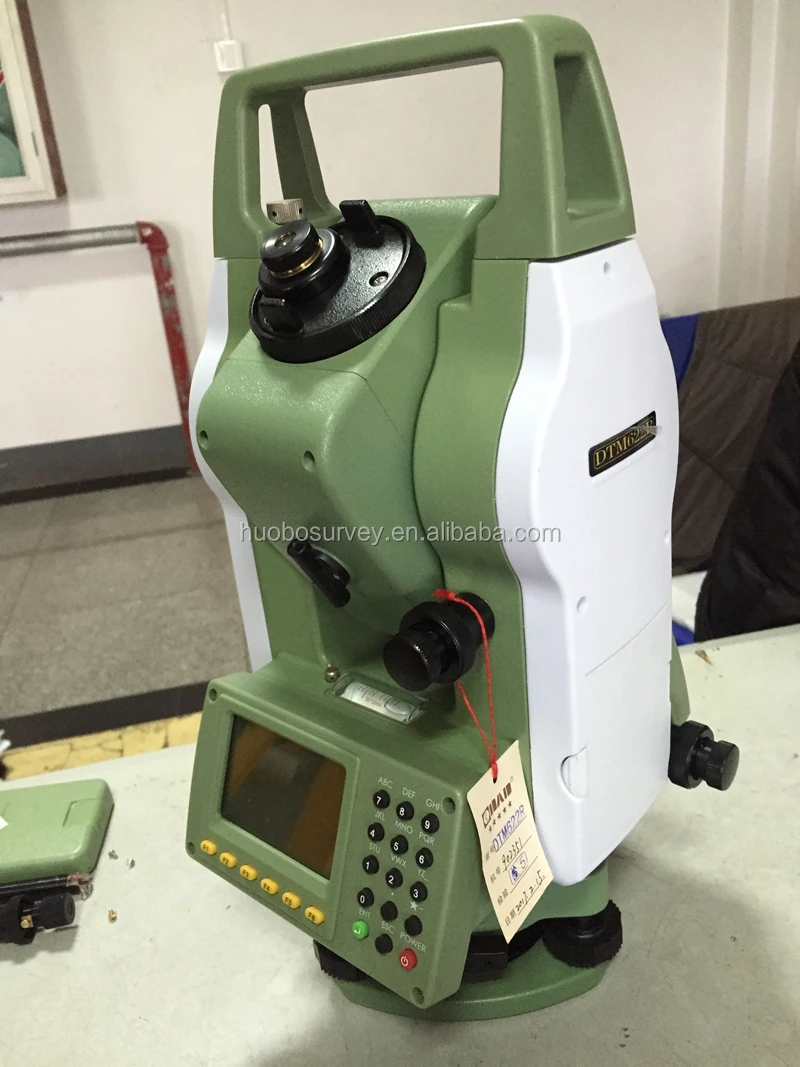

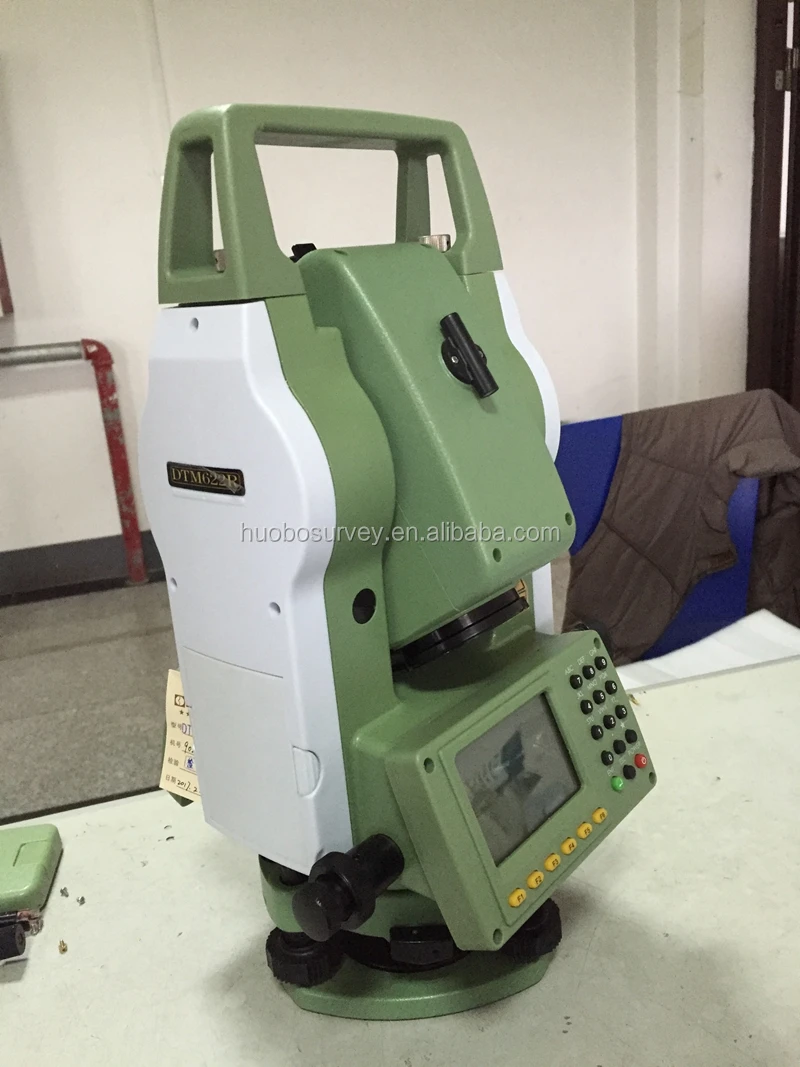

GDM-622R4 Total Station Auto Error Elimination Total Station



GDM-622R4 Total Station Auto Error Elimination Total Station



GDM-622R4 Total Station Auto Error Elimination Total Station



GDM-622R4 Total Station Auto Error Elimination Total Station



GDM-622R4 Total Station Auto Error Elimination Total Station



GDM-622R4 Total Station Auto Error Elimination Total Station



GDM-622R4 Total Station Auto Error Elimination Total Station




Produst Testing

High Performance GDM-152M Total Station Absolute Encoding Measurement





Exhibition Show

High Performance GDM-152M Total Station Absolute Encoding Measurement







Our Team



Certificate

New Product IP67 Degree GNSS RTK System 220 Channels Available




Produst Series Show

High Precision Measuring Instrument Total Station with Reflector



High Precision Measuring Instrument Total Station with Reflector




Contact Information



Pls contact me if you are interested

Elaine Wang(Sales Manager)

Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd
No.2501, China Resource Building, Xiejiawan Street, Jiulongpo District, Chongqing, China.
Website:
Tel: +86-23-62794421     Fax: +86-23-62940030
Mobile/WhatsApp/Wechat/Skype: +86-15998954947
Product Tags: Portable Type Total Station , Lightweight Total Station Supplier , GDM-622R4 Total Station Sale
