Distance Measuring Accuracy Total Station with Reflector China Supplier
Technical Specification
Angle Measurement
Measurement Method: Absolute Encoding
Minimum Readout: 1″/5″/10″(0.3mgon/1.5mgon/3mgon)optional
Accuracy1 : 2”
Distance Measurement (with Reflector)
Single Prism: 3000m (9,842ft.) under good condition3
Three Prisms: 6000m (19,685ft.) under good condition3
Reflective Sheet: 800m (2,624 ft.)
Accuracy: 2 mm+2ppm
Measuring Time (Fine/Quick/Tracking): 1.5s / 1s / 0.5s
Distance Measurement (Reflectorless)
Reflectorless2 Range: 350m, 600m
Single Prism: >7500m (24606ft.)
Accuracy: 3mm+2ppm
Measuring Time: 1.5s
Telescope
Magnification: 30X
Field of View: 1°30′ (2.7m at 100m)
Minimum Focusing Distance: 1.2m
Reticle: Illuminated
Compensator
System: Dual-axis (optional)
Working Range: ±3′
Setting Accuracy: 1″
Communication
Bluetooth
Interface: Standard RS232, SD card4, USB pen drive, mini-USB
Internal Data Memory: Approx. 20,000 Points
Data Format: ASCII
Operation
Operation system: Real-time Operating System
Display: High resolution backlight black and white display with contrast adjustment/ Graphics: 280 x 160 pixels / Character: 6 lines x 25 characters
Keyboard: 2 sides Alphanumeric backlit crystal keyboard
Laser Plummet
Type: Laser point, 4 brightness levels adjustment / Optical plummet (optional)
Centering Accuracy: 1 mm at 1.5m instrument height
Power Supply
Battery Type: Rechargeable Li-ion battery
Voltage/Capacity: ZBA-400: 7.4V (DC) / 3000mAh
Operating Time With ZBA-400: Optimal 16 hours5 (Continuous angle measurement every 30 seconds) / 10 hours (typical)
Measuring Times: Approx. 12000 times
Environmental
Operating Temperature: -20℃ ~ 50℃( -4℉ to+122℉)
Storage Temperature: -40℃ ~ 70℃(-40℉ to+158℉)
Dust&Water Proof (IEC60529 Standard)/Humidity: IP54, 95%, non-condensing
Product Features
Dual-axis reflectorless total station. 2'' accuracy with 350m range. Wireless bluetooth communication. Big storage, can be extended up to 32GB. Convenient data import and export with USB port.
1) Dual-aixs compensator
2) 600m reflectorless measuring range
3) Big data storage and bluetooth connection
Detail advantage functions
Dual-axis Compensation
The HTS-420R is configured with advanced dual-axis compensator for auto error elimination and auto accuracy compensation.
The absolute encoding disk ensures high accuracy, efficiency and stable performance. No need to initialize but to measure the angle immediately as the HTS420R is turned on. The previous data and setting are automatically saved. No data or setting is missed even though the HTS420R is power-off unexpectedly.
Based on ARM CortexM processor, the SMT32 MCU enabling the HTS420R extra high processingspeedand low-power consumption.
The Bluetooth wireless technology makes HTS420R accessible to any data collector for realtime communication. The third party field software such as Carlson SurvCE is fully compatible withthe HTS-420.

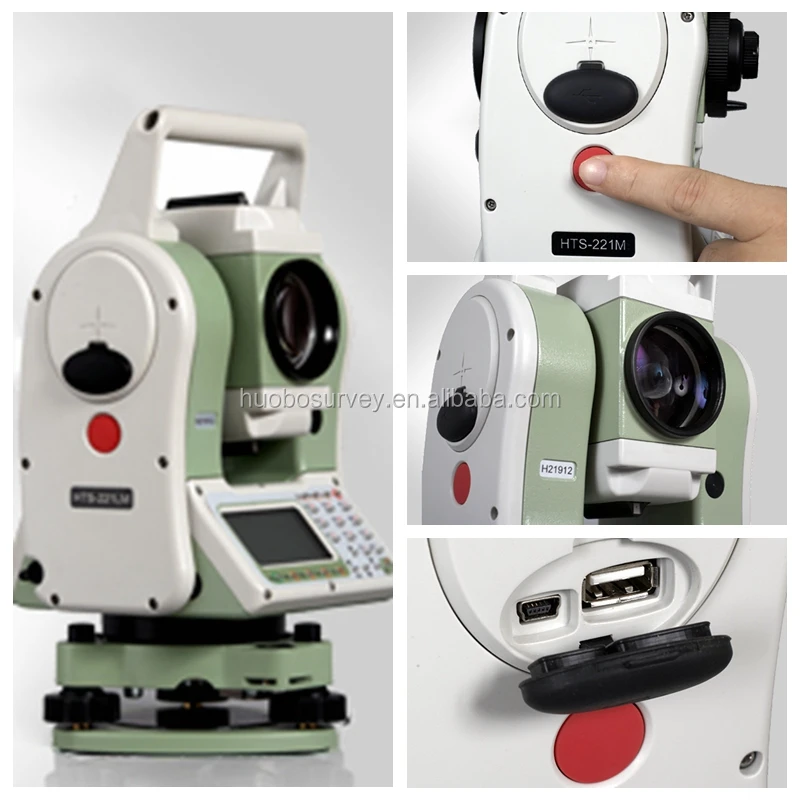

Diversified data transfer options such as SD card and MicroUSB port, which can work perfectly with our complimentary dual port USB disk.
Adjustable backlight of the screen and the keyboard offer you a visible condition to work in the dark.
Support diagonal eyepiece for observations at steep line of sight.
Realtime diagnosis can be run with HITARGET Calibration software, to find out the problem quickly to ensure trouble-free operation.
The newly easy to use data transfer software supports different type of output data format, which can be used in AutoCAD orother brands’post processing software.

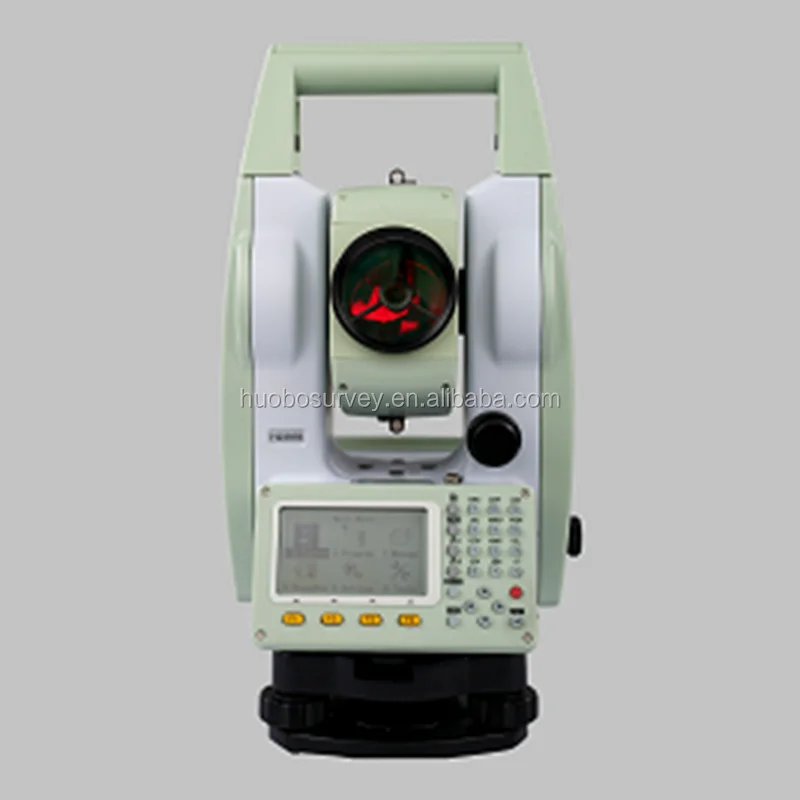

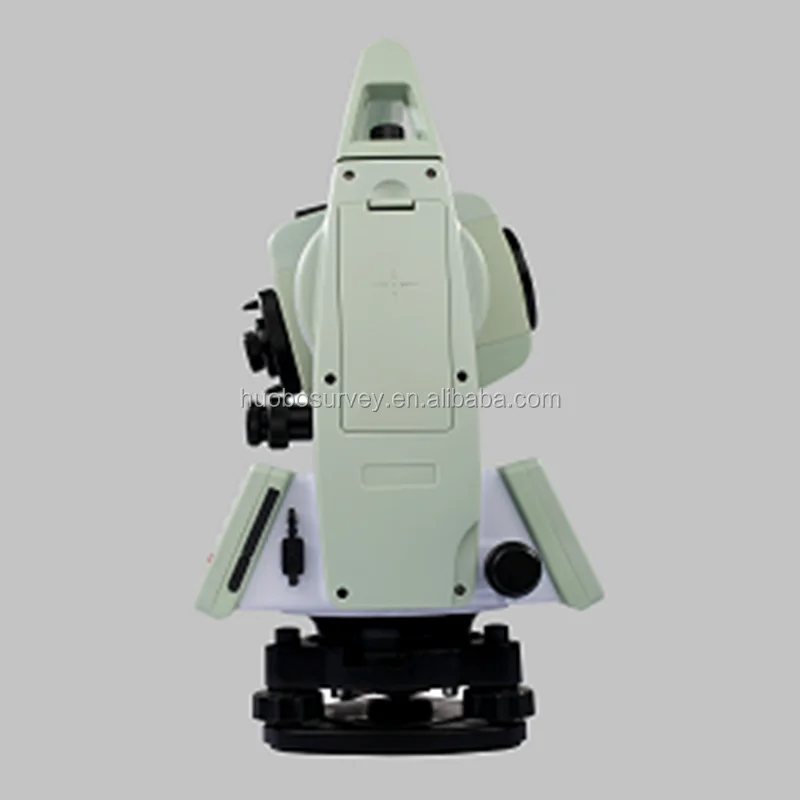

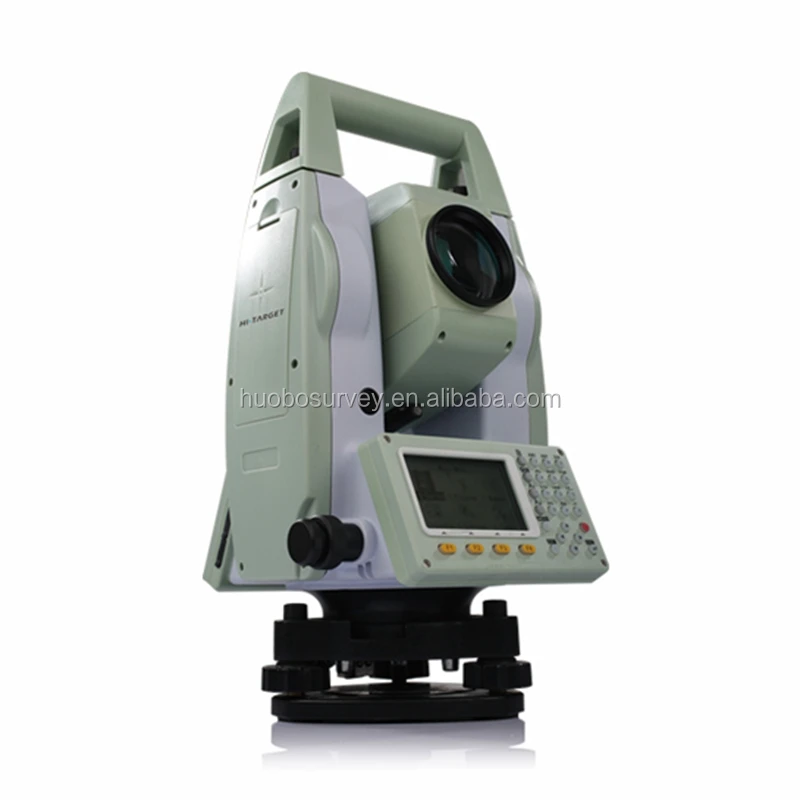

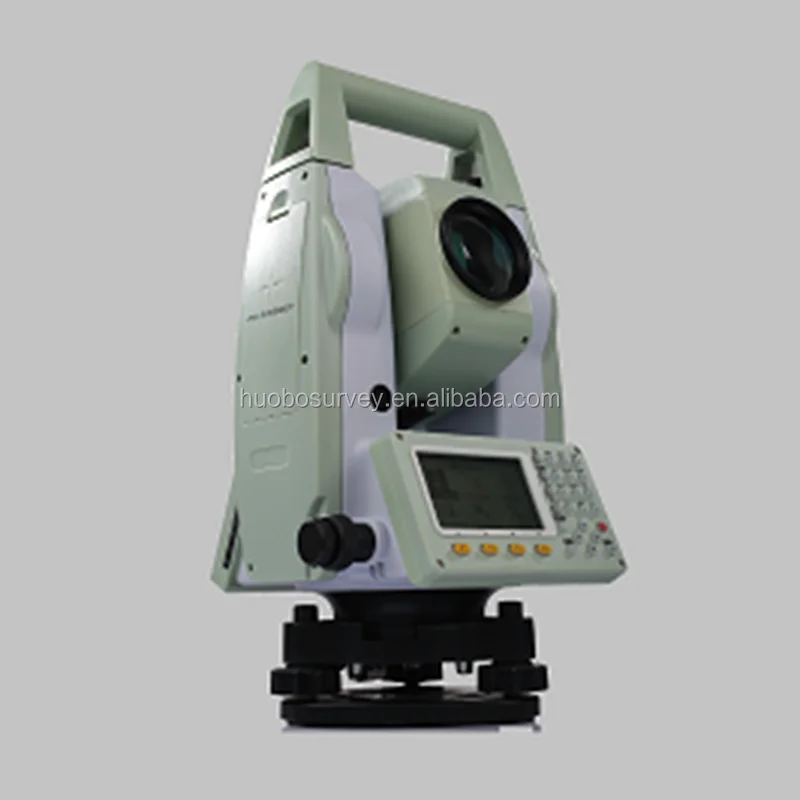

Product Show
Produst Testing
Exhibition Show
Our Team
Certificate
Produst Series Show
