Roughing process of Gray Brake Disc / Brake Rotor with PCBN Inserts
The excellent performance of CBN tools: High hardness, high heat resistance, high chemical inertness.
The high hardness of CBN Tool proved its excellent abrasive resistance.
● The high heat resistance of CBN Tool can meet the cutting condition of high speed and high temperature.
● The high chemical inertness proved that CBN Tool has high antioxidant, it will not be oxidized in 1000℃，and will not react with iron series metal in 1200 ℃. And it can be used with high cutting speed, so that improved the processing efficiency.
● CBN Tools have good thermal conductivity, which can realize the heat near the insert tips, and help improve the precision of the workpiece.
● CBN Tools will have low coefficient of friction, which will make the cutting tools have excellent anti-sticking ability, and help improve the surface quality of the component.
Why Choose Halnn Tools PCBN Inserts ?
(1) Improve Efficiency: Compared with coating carbide insert, it can realize high speed machining,and the suitable linear speed will be: 250~450m/min for roughing process, 450~800m/min for finishing process.
(2) Improve Tools Durability: The tool life of Halnn CBN Insert is about 15 times of carbide insert.
(3) Improve Roughness: Halnn BN-K20 and BN-S30 can receive the roughness within Ra1.6, is much better than carbide insert.
(4) Characteristics of Halnn CBN inserts: BN-S30 and BN-S300 adopt non-metal adhesive, improved the thermal conductivity and the strength, not only extend the insert lifetime, but also improve the impact resistance. And BN-S30 can be used for roughing process, BN-S300 can be used for finishing process. BN-K20 and BNK30 belong to brazed pcbn insert, both of them can be used for finishing process.

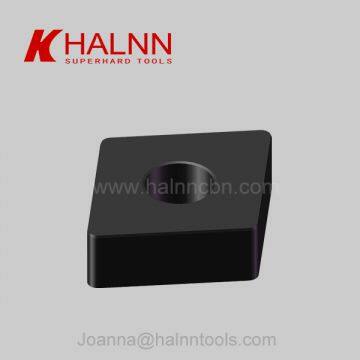

Pictures of PCBN Inserts
Details of SCGN SCGN Inserts
Type |
Dimension |
Standard Chamfer |
Grades |
|||||||
L(mm) |
φI.C(mm) |
S(mm) |
r(mm) |
BN-K1 |
BN-S10 |
BN-S20 |
BNK30 |
BN-S300 |
||
SCGN090304 |
9.525 |
9.525 |
3.18 |
0.4 |
S01020 S02020 |
◎ |
● |
◎ |
● |
● |
SCGN090308 |
9.525 |
9.525 |
3.18 |
0.8 |
◎ |
● |
◎ |
● |
● |
|
SCGN090312 |
9.525 |
9.525 |
3.18 |
1.2 |
◎ |
● |
◎ |
● |
● |
|
SCGN090404 |
9.525 |
9.525 |
4.76 |
0.4 |
◎ |
● |
◎ |
● |
● |
|
SCGN090408 |
9.525 |
9.525 |
4.76 |
0.8 |
◎ |
● |
◎ |
● |
● |
|
SCGN090412 |
9.525 |
9.525 |
4.76 |
1.2 |
◎ |
● |
◎ |
● |
● |
|
Characteristics of PCBN Inserts
Insert Grade |
Binder |
CBN Content(%) |
Granularity |
Hardness(HV) |
Cutting Depth |
Condition |
BN-S300 |
AL,TIC |
97 |
4—6 |
3400—3600 |
≤2mm |
Continuous |
BN-K10 |
Si,Co |
95 |
≤ 2 |
3300—3500 |
≤1.5mm |
Continuous |
BN-K20 |
AL |
95 |
2—4 |
3400—3600 |
≤0.5mm |
Continuous |
BNK30 |
Si,TIC |
97 |
2—4 |
3400—3600 |
≤0.5mm |
Continuous |
Application Case
Item |
Brake Drum Manufacturer |
Image |
|
Workpiece Materials |
FC250 (HT250) |
|
Machining Process |
Roughing, Dry Cutting |
|
Hardness |
HB170~HB210 |
|
Selected insert |
BN-S300 SNMN120712 |
|
Testing Performance Comparison | ||
Insert Materials |
Cutting Parameters |
Machining Qty |
Halnn BN-S300 |
Vc=500,Fr=0.55,ap=2 |
200 |
Other PCBN |
Vc=180,Fr=0.2,ap=2 |
30 |
The tool life improved 1.8 Times! | ||
