Machining of Brake Disc/Brake Drum with Polycrystalline CBN Inserts

BN-S300 solid cbn inserts for processing brake disc

With the vigorous development of the automotive industry, the demand for brake disc products has increased year by year. As a key component of the car brake system, the brake disc is a powerful guarantee for safe driving. Processing efficiency and quality are especially important for the manufacture of brake discs. Halnn Tools has successively launched the new material CBN inserts BN-S300/BNK30/BN-K20/BN-K10, as the replacement tool materials.

Why Choose Halnn Tools BN-S300 PCBN Insert ?

(1) Improve Efficiency: Compared with coating carbide insert, it can realize high speed machining,and the suitable linear speed will be: 250~450m/min for roughing process, 450~800m/min for finishing process. And it also be suitable for the high speed milling with 1500m/min or above. The efficiency will be about 2 times more than cabide insert.

(2)  Improve Tools Durability: The tool life of Halnn CBN Insert is about 15 times of carbide insert.

(3) Characteristics of Halnn CBN inserts:  BN-S300 adopt non-metal adhesive, improved the thermal conductivity and the strength, not only extand the insert lifetime, but also improve the impact resistance,and BN-S300 can be used for finishing process.

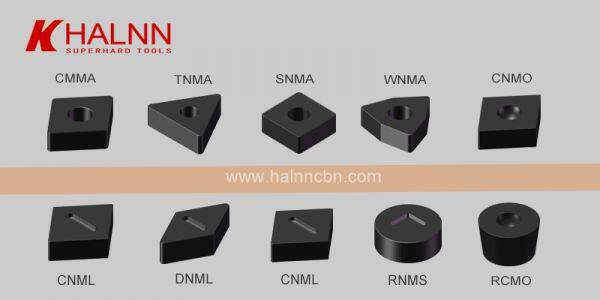

Pictures of PCBN Inserts

Cutting condition of Halnn CBN Insert

Characteristics of CBN Insert Used for Brake Disc

Advantages of Halnn CBN Inserts

  1)  Long tool life and high cutting efficiency.

  2) Excellent wear resistance and impact resistance;

  3) Good thermal stability and chemical stability;

CBN Cutting Parameters for Reference

Application Case

Our service

Pre-Sales Service

l Prompt reply and 24 hours online,professional team to provide best price and quality product.

l Same testing support

l Every batch of products will be tested to ensure its quality.

After-sales Service

l The real-time logistics information monitoring

l Any questions about the product can be consulted at any time.

l Product with any problem can return.
