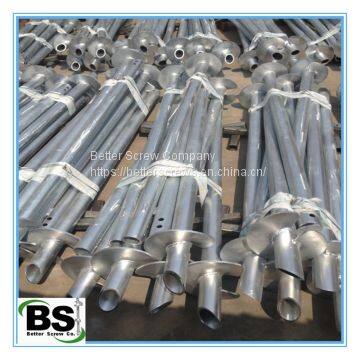

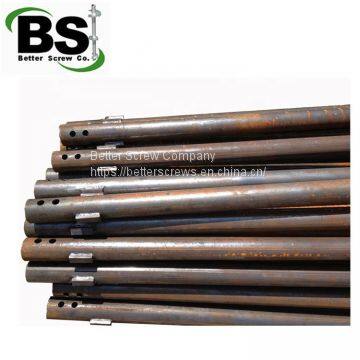

Solar System Screw Anchor Products
Solar System Screw Anchor Products
Product name |
Round Tubular Shaft Helical Piers |
Shaft material |
Seamless high tensile pipe, confirms to ASTM A500 GRADE B |
Helices material |
ASTM A36 hot rolled plate |
Round Shank Anchors |
Hot Dip Galvanized to meet ASTM Specification A153 |
Size |
2 3/8”--8 5/8” round tube shaft |
Length |
3ft/5ft/7ft/10ft etc |
Helix Blade |
8", 10", 12" and 14" in diameter |
Blade thickness |
3/8” OR 1/2” |
Welding Standard |
AWS D1.1 |
Finish |
Hot dipped zinc coating, Painted, Powder coating, corrosion protection conform to ASTM A153 standard. |
Round Shank Anchors |
Hot Dip Galvanized to meet ASTM Specification A153 |
Helices Leading edge |
Beveled 45 degrees |
Sample |
Available |
OEM service |
Available |
Markets |
Europe, North America, South America |
|
Greater Section Modulus Strength to resist Twisting and Deflection. Greater Load Capacities. | |
Specifications | |||||
Shaft Size (inch) |
Wall Thick(inch) |
Helix Thick(inch) |
Lead Length (ft) |
Helix Size (inch) |
Extension Length (ft) |
2.375 OD. |
0.19 |
3/8 or 1/2 |
3ft/5ft/7ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
2.875 OD. |
0.203/0.217 |
3/8 or 1/2 |
3ft/5ft/7ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
3.50 OD. |
0.254/0.300 |
3/8 or 1/2 |
3ft/5ft/7ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
4.50 OD. |
0.290/0.337 |
3/8 or 1/2 |
3ft/5ft/7ft/10ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
5.50 OD. |
0.362 |
3/8 or 1/2 |
3ft/5ft/7ft/10ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
6.625 OD. |
0.562 |
3/8 or 1/2 |
3ft/5ft/7ft/10ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
Advantages:
1. High capacity deep foundation alternative.
2. All-weather installation.
3. Extremely fast installation
4. Superior corrosion protection.
5. Vibration-free installation
6. Safety Buildings.
7. A better conventional solid steel extra high strength helical screw pile.
8. Welded coupling for greater strength.
9. Eliminates shaft heat damage caused by upset coupling process.
10. Cost-effective – gets a structure back on solid ground.
11. Permanent solution – prevents further vertical movement.
Pakaging and Shipping:
1. Packaging: Usually we shipping the products in 20ft or 40ft container, or according to your demand.
2. Shipping: 5 to 6 weeks after confirming your order.
Service:
1. Professional staffs reply your inquiry in 24 working hours.
2. Professional factory : We are the first class helical screws products supplier for Residential, Commercial and Industrial Projects as well as Underpinning and Anchoring.
3. Competitive pricing, good quantity and timely service.
4. OEM and ODM service are available here.
5. Sample: Available.
Please contact our friendly and knowledgeable team for the more info.
Sincerely hope we can build a long-term cooperative relationships with you.
Solar System Screw Anchor Products
Better Screw Co. is a subsidiary of Better Group Corp. Better Group Corp have several different subsidiaries focus on different fields such as Metal work, CNC Equipment, Investment, Construction, and Real Estate business. Better Screw Co. is the first class helical screws products supplier for Residential, Commercial and Industrial Projects as well as Underpinning and Anchoring. We offer a full range of helical piles, push piers, helical plates, lead sections, steel extensions, helical brackets, as well as all the accessories needed to put your job together. During the past 10 years, our reliable quality, crazy prices and professional service had been confirmed by customers from the USA, Canada, Australia, Europe, Asia and many other countries from all over the world.
We can take charge of the whole process including producing in China and shipping the products directly to your company. Our agent in your country can deal with the customs clearance and inland transportation affairs for you. Even if your company never import, please don’t worry about it. You just need to stay in your warehouse to receive the products, it’s very simple!
Whether you are faced with a foundation issue or structural challenge, our staffs are ready to assist you as needed from your project. Please feel free to contact us if you want to lower your cost and ensure quality. Our mad pricing will make you become much more competitive and input new energy to your company!
