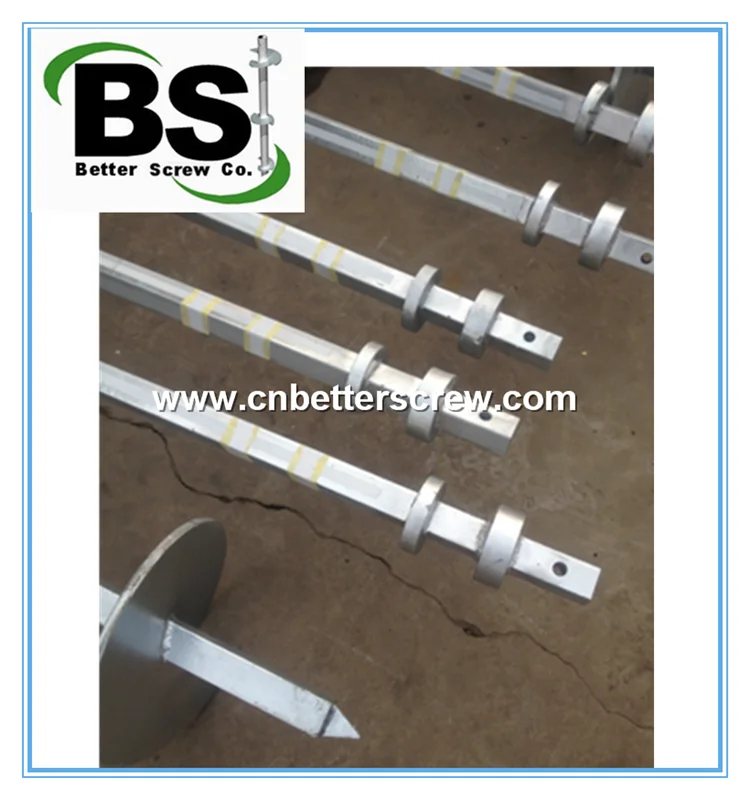

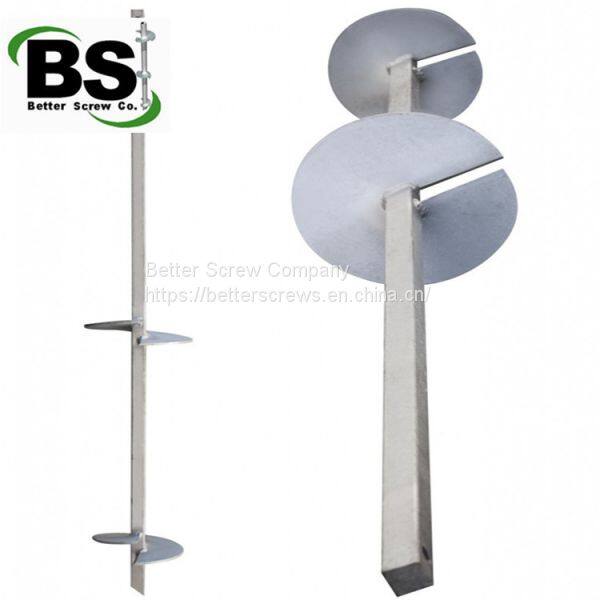

1-3/4 inch square bar helical anchor
Product name |
Square Bar Shaft Helical Piers |
Bar Material |
40Cr or 45# steel, round corner 5mm radius |
Helix Plate material |
ASTM A36 hot rolled plate |
Helix leading edges |
Sharpened and rock cut and 45 degree |
Finish |
Hot dipped zinc coating, Painted, Powder coating, corrosion protection conform to ASTM A153 standard. |
Helix Blade |
8", 10", 12" and 14" in diameter with 3/8", 1/2" thickness |
Square Bar |
1-1/2",1-3/4" ,2-1/4" |
Lead sections |
Available in 3, 5 and 7-foot lengths. |
Extensions |
Available in 3, 5, 7 and 10-foot lengths. |
Specifications | |||
Size |
Lead Length (ft) |
Helix Size (inch) |
Extension Length(ft) |
1-1/2" |
3ft/5ft/7ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
1--3/4" |
3ft/5ft/7ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
2" |
3ft/5ft/7ft/10ft |
8/10/12/15 |
3ft/5ft/7ft/10ft |
1. Ease of Installation.
2. Little to No Vibration.
3. Immediate Load Transfer upon Installation.
4. Installed Torque Correlates to Capacity.
5. Easily Load Tested to Verify Capacity.
6. Installs Below Active Soils.
7. All Weather Installation.
8. Little to No Disturbance to Jobsite.
9. OEM service is accepted.
Our Service:
1. Professional staffs reply your inquiry in 24 working hours.
2. Professional factory : We are the first class helical screws products supplier for Residential, Commercial and Industrial Projects as well as Underpinning and Anchoring.
3. Competitive pricing, good quantity and timely service.
4. OEM and ODM service are available here.
5. Sample: Available. The Shipment charges is usually paid by your side.
Sincerely hope we can build a long-term cooperative relationships with you.

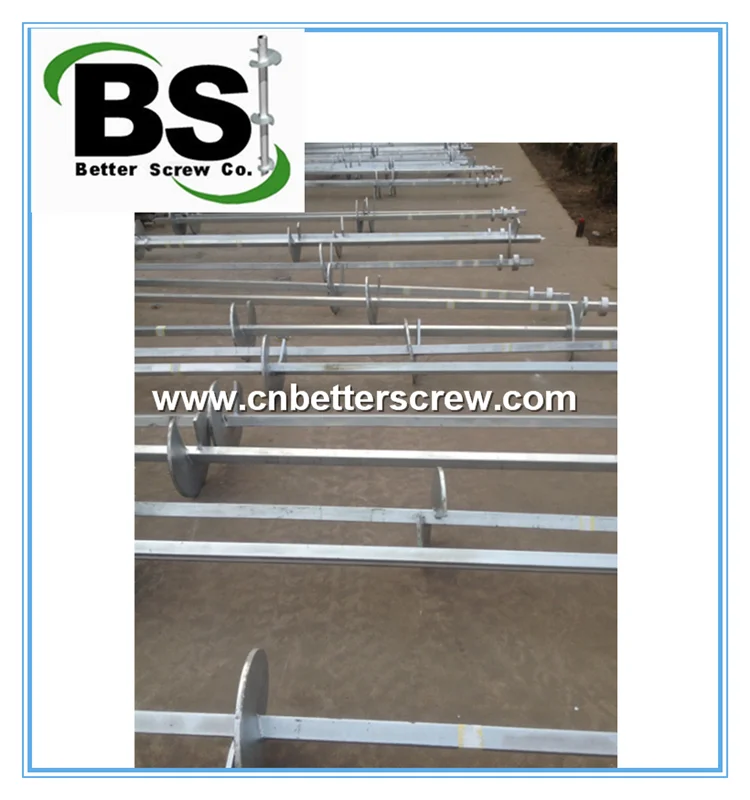

1-3/4 inch square bar helical anchor
Better Screw Co. is a subsidiary of Better Group Corporation. We are the first class helical screws products supplier for Residential, Commercial and Industrial Projects as well as Underpinning and Anchoring. We offer a full range ofhelical anchors, push piers, helical plates, lead sections, steel extensions, helical brackets, as well as all the accessories needed to put your job together. During the past 10 years, our reliable quality, crazy prices and professional service had been confirmed by customers from the USA, Canada, Australia, Europe, Asia and many other countries from all over the world.
We can take charge of the whole process including producing in China and shipping the products directly to your company. Our agent in your country can deal with the customs clearance and inland transportation affairs for you. Even if your company never import, please don’t worry about it. You just need to stay in your warehouse to check our products, it’s so simple!
Whether you are faced with a foundation issue or structural challenge, our staffs are ready to assist you as needed from your project. Please feel free to contact us if you want to lower your cost and ensure quality. Our mad pricing will make you become much more competitive and input new energy to your company!
