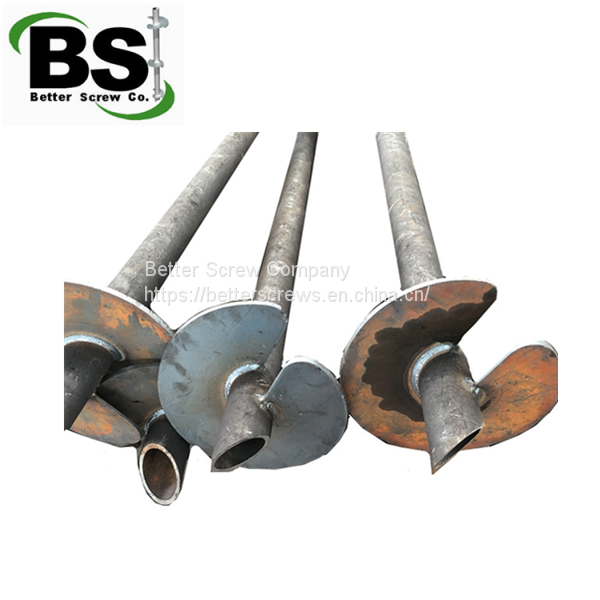

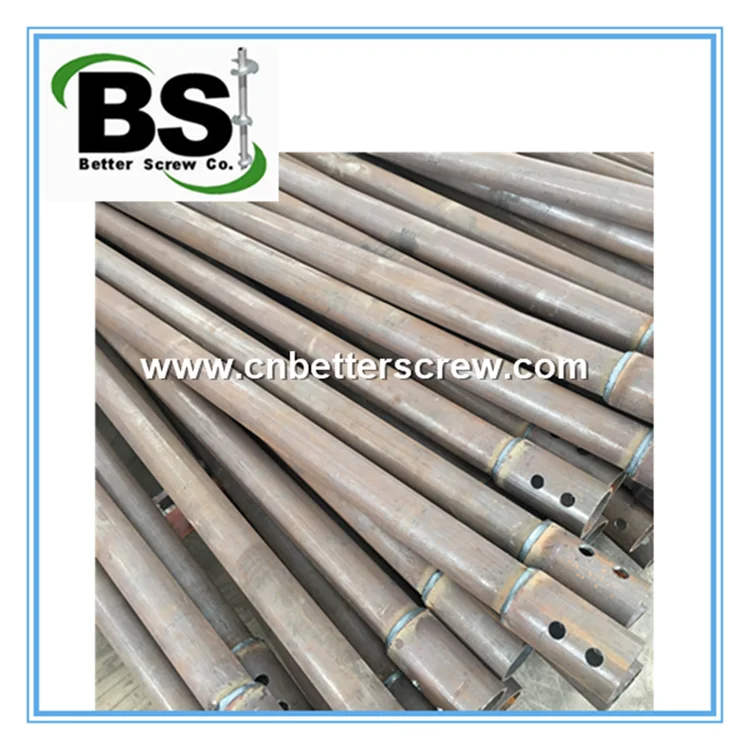

Round Tubular Helical Anchor for Basement Foundation
Round Tubular Helical Anchor Basement Foundation
Helical piers, also known as anchors, piles or screwpiles, are deep foundation solutions used to secure new or repair existing foundations. Due to their design and ease to install, they are most commonly used whenever soil conditions prevent standard foundation solutions. Instead of requiring large excavation work, they thread into the ground. This minimizes installation time, requires little soil disturbance, and most importantly transfers the weight of the structure to load bearing soil. All of our pier products are hot dipped galvanized for resistance to corrosion and to ensure long life. Our helical piers have been used all over the world to secure residential and commercial buildings.
Product name |
Round Tubular Shaft Helical Piers |
Shaft material |
Seamless high tensile pipe, confirms to ASTM A500 GRADE B |
Helices material |
ASTM A36 hot rolled plate |
Round Shank Anchors |
Hot Dip Galvanized to meet ASTM Specification A153 |
Size |
2 3/8”--8 5/8” round tube shaft |
Length |
3ft/5ft/7ft/10ft etc |
Helix Blade |
8", 10", 12" and 14" in diameter |
Blade thickness |
3/8” OR 1/2” |
Welding Standard |
AWS D1.1 |
Finish |
Hot dipped zinc coating, Painted, Powder coating, corrosion protection conform to ASTM A153 standard. |
Round Shank Anchors |
Hot Dip Galvanized to meet ASTM Specification A153 |
Helices Leading edge |
Beveled 45 degrees |
Sample |
Available |
OEM service |
Available |
Markets |
Europe, North America, South America |
|
Greater Section Modulus Strength to resist Twisting and Deflection. Greater Load Capacities. | |
Specifications | |||||
Shaft Size (inch) |
Wall Thick(inch) |
Helix Thick(inch) |
Lead Length (ft) |
Helix Size (inch) |
Extension Length (ft) |
2.375 OD. |
0.19 |
3/8 or 1/2 |
3ft/5ft/7ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
2.875 OD. |
0.203/0.217 |
3/8 or 1/2 |
3ft/5ft/7ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
3.50 OD. |
0.254/0.300 |
3/8 or 1/2 |
3ft/5ft/7ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
4.50 OD. |
0.290/0.337 |
3/8 or 1/2 |
3ft/5ft/7ft/10ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
5.50 OD. |
0.362 |
3/8 or 1/2 |
3ft/5ft/7ft/10ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
6.625 OD. |
0.562 |
3/8 or 1/2 |
3ft/5ft/7ft/10ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
Advantages:
1. High capacity deep foundation alternative.
2. All-weather installation.
3. Extremely fast installation
4. Superior corrosion protection.
5. Vibration-free installation
6. Safety Buildings.
7. A better conventional solid steel extra high strength helical screw pile.
8. Welded coupling for greater strength.
9. Eliminates shaft heat damage caused by upset coupling process.
10. Cost-effective – gets a structure back on solid ground.
11. Permanent solution – prevents further vertical movement.
Round Tubular Helical Anchor for Basement Foundation
1. Professional staffs reply your inquiry in 24 working hours.
2. Professional factory : We are the first class helical screws products supplier for Residential, Commercial and Industrial Projects as well as Underpinning and Anchoring.
3. Competitive pricing, good quantity and timely service.
4. OEM and ODM service are available here.
5. Sample: Available.
Please contact our friendly and knowledgeable team for the more info.
Sincerely hope we can build a long-term cooperative relationships with you.
Better Screw Co. is a subsidiary of Better Group Corp. Better Group Corp have several different subsidiaries focus on different fields such as Metal work, CNC Equipment, Investment, Construction, and Real Estate business. Better Screw Co. is the first class helical screws products supplier for Residential, Commercial and Industrial Projects as well as Underpinning and Anchoring. We offer a full range of helical piles, push piers, helical plates, lead sections, steel extensions, helical brackets, as well as all the accessories needed to put your job together. During the past 10 years, our reliable quality, crazy prices and professional service had been confirmed by customers from the USA, Canada, Australia, Europe, Asia and many other countries from all over the world.
We can take charge of the whole process including producing in China and shipping the products directly to your company. Our agent in your country can deal with the customs clearance and inland transportation affairs for you. Even if your company never import, please don’t worry about it. You just need to stay in your warehouse to receive the products, it’s very simple!
Whether you are faced with a foundation issue or structural challenge, our staffs are ready to assist you as needed from your project. Please feel free to contact us if you want to lower your cost and ensure quality. Our mad pricing will make you become much more competitive and input new energy to your company!
1. Are your products the same with the ones in our local market?
Yes, our welding performed to America Standard AWS D1.1&EURO Standard EB287 and we
manufactured millions of helical piers and a series of accessories for North American/European/
Australian etc market during the past 10 yearsand very familiar with every detail of these products.
We believe that there is no company in China is more professional than us on this product.
2. What is the minimum order quantity?
The MOQ for helical piers is 10 tons for per specification. You can mix different sizes of posts to
make up a full container. If you want to know the MOQ for other products, please feel free to contact us.
3. How long is your lead time?
Usually our production time for one container goods is about 5 to 6 weeks, and the shipping time depends on your place of delivery.
4. What is your payment term?
Usually our payment term is T/T. We can receive the payment 1-3 days after you made payment.
5. Is it complicated to purchase your products if we have never imported?
The whole process is very simple. We can take charge of the whole process including producing in China and shipping the products directly to your company. Our shipping agent in USA/Canada can deal with the customs clearance and inland transportation affairs for you. You just need to stay in your
office to receive your products.

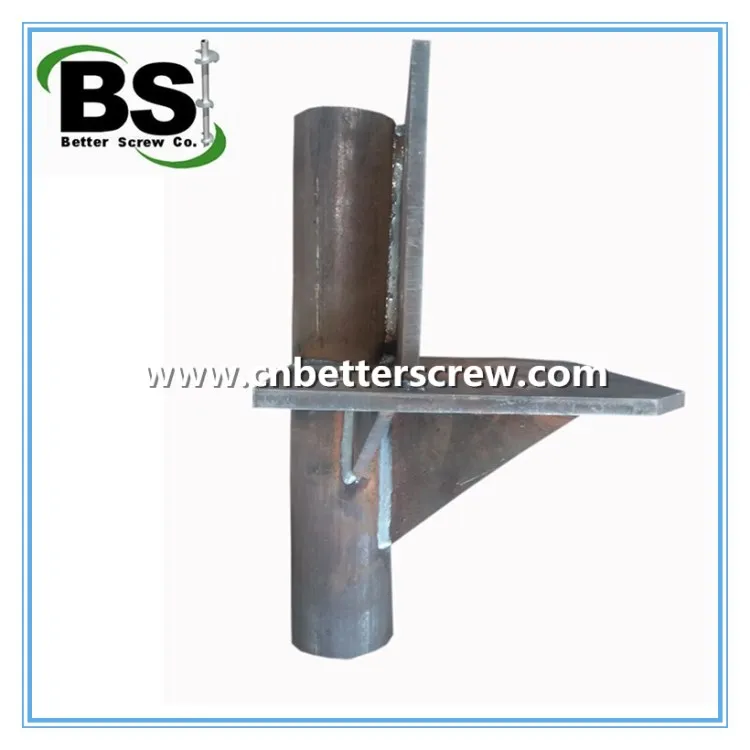

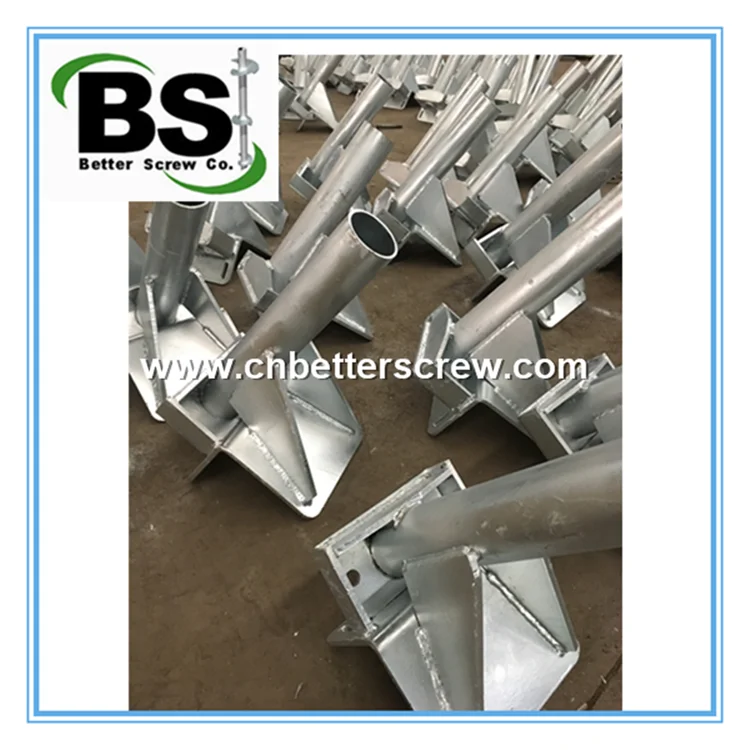

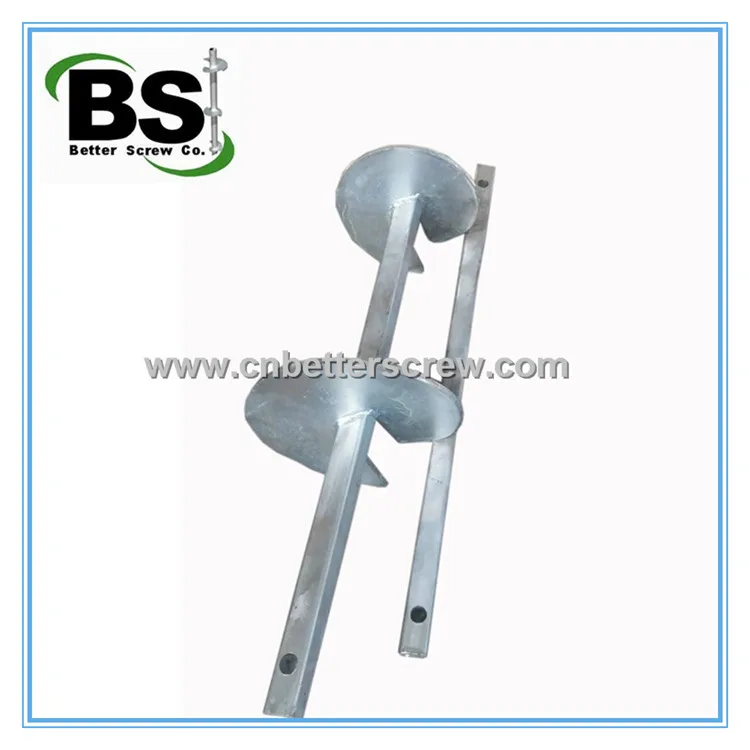

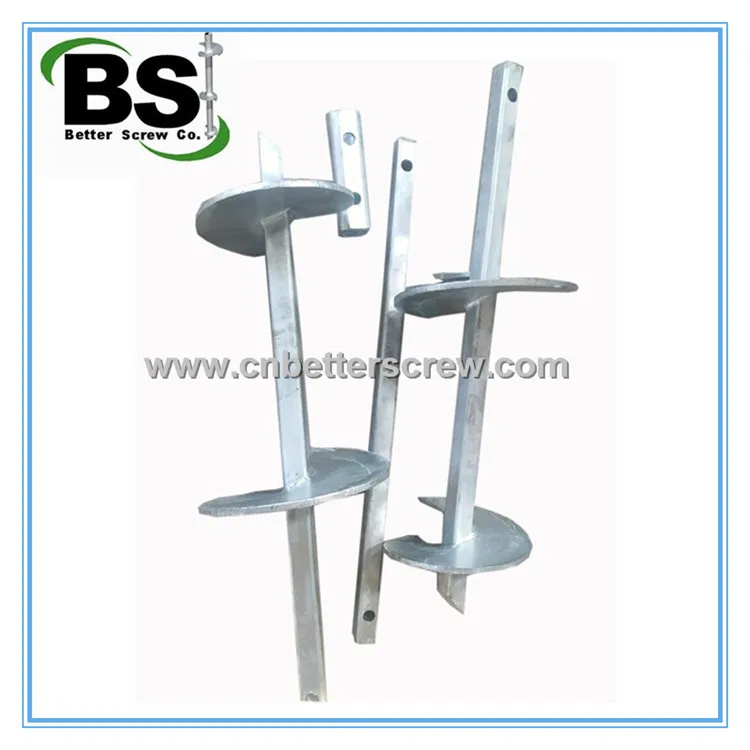

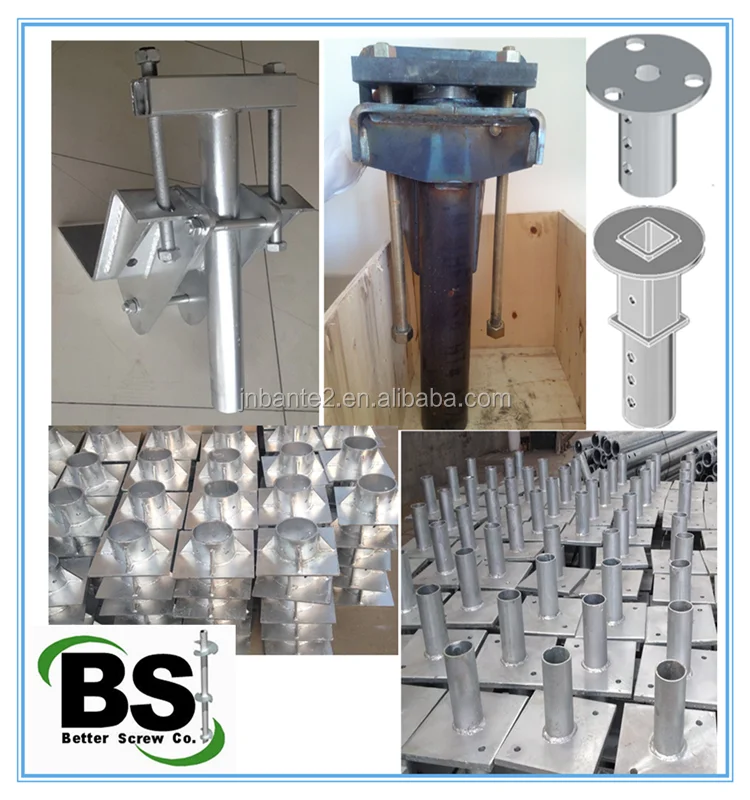

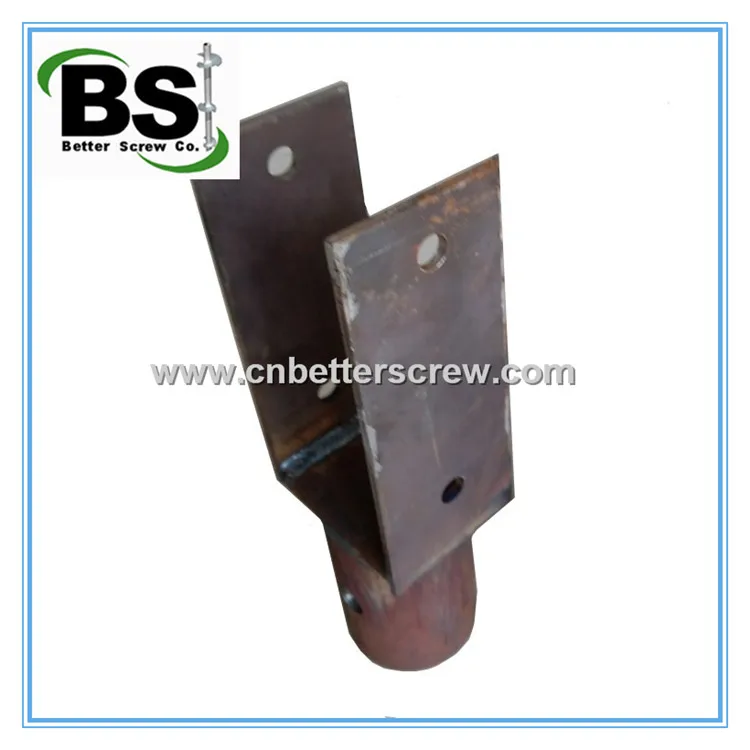

Square lead helical piers, helical screw underpinning brackets, pile caps
