Brand Name PMI
Place of Origin Taiwan, China
Model Number SA15E,MSA20E,MSA25E,MSA30E,MSA35E,MSA45E
Guide Length 500mm-4000mm

PMI slide block features



1. High positioning accuracy, high repeatability

2. Low frictional resistance, high precision maintained for long period

3. High rigidity with four-way load design

4. Suitable for high speed operation

5. Easy installation with interchangeability



PMI slide block MSA series application



Machine Center, NC lathe, XYZ axes of heavy cutting machine tools, Grinding head feeding axis of grinding machines,

Milling machine, Z axis of boring machine and machine tools, EDM, Z axis of industrial machine, Measuring equipment,

Precision XY table, Welding machine, Binding machine, Auto packing machine



PMI slide block description of specication



PMI Slide Block MSA35A,MSA35LA

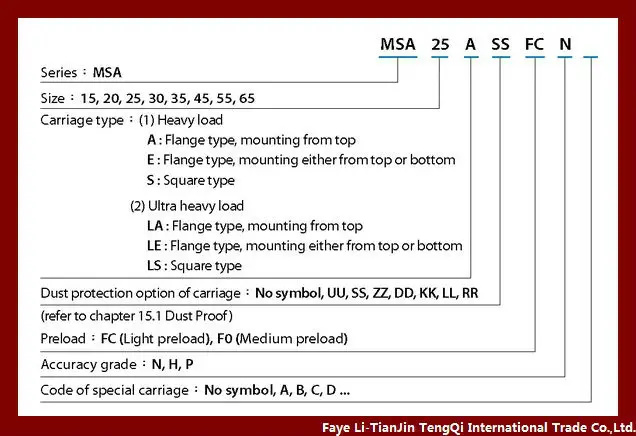

PMI slide block model number



PMI Slide Block MSA35A,MSA35LA




 External dimension Carriage dimension Rail dimension Weight

Height Width Length



Width Height Pitch Carriage Rail
ModelNo. H W L W2 H2 B C W1 H1 P kg kg/m
MSA15A 24 47 56.3 16 4.2 38 30 15 15 60 0.18 1.5
MSA20A 30 63 72.9 21.5 5 53 40 20 18 60 0.4 2.4
MSA20LA 88.8 0.52
MSA25A 36 70 81.6 23.5 6.5 57 45 23 22 60 0.62 3.4
MSA25LA 100.6 0.82
MSA30A 42 90 97 31 8 72 52 28 26 80 1.09 4.8
MSA30LA 119.2 1.43
MSA35A 48 100 111.2 33 9.5 82 62 34 29 80 1.61 6.6
MSA35LA 136.6 2.11
MSA45A 60 120 137.7 37.5 10 100 80 45 38 105 2.98 11.5
MSA45LA 169.5 3.9



PMI slide block series



1.MSA series : MSA-A/MSA-LA,MSA-E/MSA-LE,MSA-S/MSA-LS

MSA 15A MSA 20A MSA 20LA MSA 25A MSA 25LA MSA 30A MSA 30LA MSA 35A MSA 35LA MSA 45A
MSA 45LA MSA 15E MSA 20E MSA 20LE MSA 25E MSA 25LE MSA 30E MSA 30LE MSA 35E MSA 35LE
MSA 45E MSA 45LE MSA 55E MSA 55LE MSA 65E MSA 65LE MSA 15S MSA 20S MSA 20LS MSA 25S
MSA 25LS MSA 30S MSA 30LS MSA 35S MSA 35LS MSA 45S MSA 45LS MSA 55S MSA 55LS MSA 65S



2.MSB series: MSB-TE/MSB-E,MSB-TS/MSB-S

MSB 15TE MSB 15E MSB 20TE MSB 20E MSB 25TE MSB 25E MSB 30TE MSB 30E MSB 15TS MSB 15S
MSB 20TS MSB 20S MSB 25TS MSB 25S MSB 30TS MSB 30S MSB 35S MSB 35LS



3.MSR series: MSR-E/MSR-LE,MSR-S/MSR-LS

MSR 25E MSR 25LE MSR 30E MSR 30LE MSR 35E MSR 35LE MSR 45E MSR 45LE MSR 55E MSR 55LE MSR 65LE
MSR 25S MSR 25LS MSR 30S MSR 30LS MSR 35S MSR 35LS MSR 45S MSR 45LS MSR 55S MSR 55LS MSR 65LS



4.MSC series: MSC-M/MSC-LM

MSC 7M MSC 7LM MSC 9M MSC 9LM MSC 12M MSC 12LM MSC 15M MSC 15LM



5.SME series: SME-EA/SME-LEA,SME-EB/SME-LEB,SME-SA/SME-LSA,SME-SB/LSB SME-SV/LSV

SME 15EA SME 15LEA SME 20EA SME 20LEA SME 25EA SME 25LEA SME 30EA SME 30LEA SME 35EA SME 35LEA
SME 45EA SME 45LEA SME 15EB SME 15LEB SME 20EB SME 20LEB SME 25EB SME 25LEB SME 15SA SME 15LSA
SME 20SA SME 20LSA SME 25SA SME 25LSA SME 30SA SME 30LSA SME 35SA SME 35LSA SME 45SA SME 45LSA
SME 15SB SME 15LSB SME 20SB SME 20LSB SME 25SB SME 25LSB SME 25SV SME 25LSV SME 30SB SME 30LSB
SME 35SB SME 35LSB SME 45SB SME 45LSB SME 15SB SME 15LSB SME 20SB SME 20LSB SME 25SB SME 25LSB
SME 25SV SME 25LSV SME 30SB SME 30LSB SME 35SB SME 35LSB SME 45SB SME 45LSB



6.SMR series: SMR-E/SME-LE,SMR-S/SME-LS

SMR 25E SMR 25LE SMR 30E SMR 30LE SMR 35E SMR 35LE SMR 45E SMR 45LE SMR 55E SMR 55LE SMR 65LS
SMR 65LE SMR 25S SMR 25LS SMR 30S SMR 30LS SMR 35S SMR 35LS SMR 45S SMR 45LS SMR 55S SMR 55LS


Contacts:

Name:Andy Zhang

E-mail:sales01@aresmotion.com

Tel: +86-17782970829

Wechat/Skype: 17782970829

Email: sales@ aresmotion.com

website:



FAQ:

1.Q:Are you a factory or trading company?

A:Areswin is specialized in manufacturing and exporting bearings.

We have own factory and warehouse.

2.Q:Can I get some samples and do you offer the sample free?

A:Yes, sure, We are honored to offer you samples.

3.Q:What is the payment?

A: 30% T/T In Advance, 70% T/T Against Copy Of B/L

B: 100% L/C At Sight

4.Q:What is the MOQ for bearing?
A: The  MOQ is 1 pc.

5.Q:What kind of service you can offer?

A:Technology support;Installation guidance;OEM.
