China Bearing Assembly Ball Screw for CNC Machines (SFU/DFU Series)

Xi'an Areswin Precision Machinery Co.,Ltd. Verified Business License
China Bearing Assembly Ball Screw for CNC Machines (SFU/DFU Series) thumbnail-1
China Bearing Assembly Ball Screw for CNC Machines (SFU/DFU Series) thumbnail-2
China Bearing Assembly Ball Screw for CNC Machines (SFU/DFU Series) thumbnail-3
China Bearing Assembly Ball Screw for CNC Machines (SFU/DFU Series) photo-1

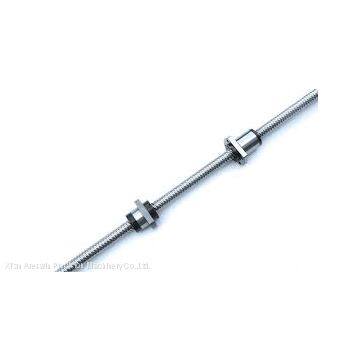

China Bearing Assembly Ball Screw for CNC Machines (SFU/DFU Series) photo-2

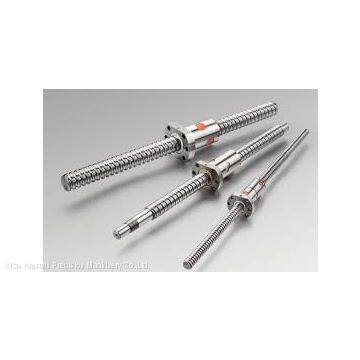

China Bearing Assembly Ball Screw for CNC Machines (SFU/DFU Series) photo-3
US$ 10 - 55 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Gten
Place of Origin:
Taiwan, China
Model Number:
SFU,DFU
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Gten
Place of Origin Taiwan, China
Model Number SFU,DFU
Material Steel
Length 500mm-4000mm
Manufacturing Process Milled Thread

Product Description
Ball Screw is made of screw and ball nut. It's function is to turn the rotary motion into linear motion which is a future extension and development of ball screw. The significance of the development is to move into a rolling bearing from sliding action. With little frication, Ball Screw are widely used into various industrial equipment and precision instruments.

Product NameChina bearing Assembly Ball Screw for CNC Machines (SFU series 12-80mm)
Model No.SFU1204, SFU1604, SFU1605, SFU1610, SFU2004, SFU2005, SFU2504, SFU2505, SFU2506,
SFU2508, SFU2510, SFU3204, SFU3205, SFU3206, SFU3208, SFU3210, SFU4005, SFU4006,
SFU4008, SFU4010, SFU5010, SFU5020, SFU6310, SFU6320, SFU8010, SFU8020mm
MaterialGcr15 (Different named of different countries: 52100 /SUJ2 /100Cr6 /100C6 /SKF3 .)
Feature1.High-speed operation
2.Low friction and noise
3.High precision, duration, and reliability
4.Smooth movement
5.High efficiency of transferring
6.No gap and preloading
End machining1. We can make end machining or without end machining ball screw.
2.For end machining ball screw, if you have special requirement, please show us the drawing.
3. Moreover, we also make the components of ball screw, such as ball screw nut housing, ball screw end support, couplings, etc.
Necessary PartsWith end machining: Ball screw + ball nut + nut bracket + ball screw support + coupling;
Without end machining: Ball screw + ball nut + nut bracket
Applications1.Machine tools
2.Industrial machinery
3.Printing, paper-processing, automatic machines, textiles, etc.
4.Electronic machinery
5.Robot, measuring instruments, medical equipment, X-Y table, factory automation equipment
6.Transport machinery
OEM&CustomziedWe can make the same size as other famous brand ball screw; If you need, please feel free to contact and show us with the drawing while inquiry. Thank you.

.
High Precision Ball Screw for Automatic Machinery
High Precision Ball Screw for Automatic Machinery




Other Models:

Tbi Standard Ball Screw for Robotic Parts



Ball Screw Working Principle:

On the screw and nut processing line with arc spiral groove, when they suit together, they form the spiral groove, and the race was full of ball bearing.
The ball is along the groove rolling, and the back bead tube as the cycle of circular motion.
Back bead also ACTS as blocking bead on both ends of the tube, in case the ball along the fell out of the race.

Ball Screw Model No. List:

Pitch 4mmSFU1204, SFU1604, SFU2004, SFU2504, SFU3204
Pitch 5mmSFU1605, SFU2005, SFU2505, SFU3205, SFU4005
Pitch 6mmSFU1610, SFU2510, SFU3210, SFU4010, SFU5010, SFU6310, SFU8010
Double NutDFU1604,DFU1605, DFU2005, DFU2505, DFU2510, DFU3205, DFU3210, DFU4005, DFU4010, DFU5010



SFU Ball Screw Model No.
SFU1204, SFU1604, SFU1605, SFU1610, SFU2004, SFU2005, SFU2504, SFU2505, SFU2506,
SFU2508, SFU2510, SFU3204, SFU3205, SFU3206, SFU3208, SFU3210, SFU4005, SFU4006,
SFU4008, SFU4010, SFU5010, SFU5020, SFU6310, SFU6320, SFU8010, SFU8020
DFU Ball Screw Model No.
DFU1604, DFU1605, DFU1610, DFU2004, DFU2005, DFU2504, DFU2505, DFU2506, DFU2508,
DFU2510, DFU3204, DFU3205, DFU3206, DFU3208, DFU3210, DFU4005, DFU4006, DFU4008,
DFU4010, DFU5010, DFU5020, DFU6310, DFU6320, DFU8010, DFU8020
Ball Screw End Supports Model No.
BKBF12, BKBF15, BKBF17, BKBF20, BKBF25, BKBF30
Ball Screw Nut Housings Model No.
DSG16H, DSG20H, DSG25H, DSG32H

Ball Screw Applications:

Electronic machinery: measuring instruments, x-y platform, medical equipment, factory automation equipment, PCB drilling machine, IC packaging machine, semiconductor equipment, factory automation equipment,Etc.

Precision machine tool: milling machine, grinding machine, discharge machine, cutter grinding machine, gear machine, drilling machine, planer

CNC machinery: CNC machining center, CNC lathe, CNC milling machine, CNC electric discharge machine, CNC grinding machine, CNC wire cutting machine, CNC drilling machine, machine...

Conveying machinery: material handling equipment, nuclear reactor, high actuator...

Aerospace industry: aircraft flap, airport load equipment...

Other industry applications: such as antenna using the actuator, the valve switch device...



Contacts:

Name:Andy Zhang

E-mail:sales01@aresmotion.com

Tel: +86-17782970829

Wechat/Skype: 17782970829

Email: sales@ aresmotion.com

website:



FAQ:

1.Q:Are you a factory or trading company?

A:Areswin is specialized in manufacturing and exporting bearings.

We have own factory and warehouse.

2.Q:Can I get some samples and do you offer the sample free?

A:Yes, sure, We are honored to offer you samples.

3.Q:What is the payment?

A: 30% T/T In Advance, 70% T/T Against Copy Of B/L

B: 100% L/C At Sight

4.Q:What is the MOQ for bearing?
A: The MOQ is 1 pc.

5.Q:What kind of service you can offer?

A:Technology support;Installation guidance;OEM.
