Hot sale zinc spray equipment, aluminum spraying equipment, SX-600 arc spray zinc wire equipment
Do you need a zinc spray equipment? Aluminum spraying equipment? Arc spray machine?Please contact :Guangzhou Sanxin Metal S&T COM.,LTD(in China), thanks!
We have different models of high velocity electric wire arc spray equipment set series which would meet requirements for any scale of your project. We can even do customized equipment according to your requests. Our machines are developed on our own basing on the latest technology of the industry. And our company has intellectual property rights of our equipment. No matter you are looking for coating device for test on small object or you are looking for coating spray equipment for big project construction, we will provide you the most efficient way to complete your project with our high quality products and professional service. Here I will introduce the application on automobile engine cylinder cover coating .
nstruction of zinc spray equipment, aluminum spraying equipment, arc spray machine

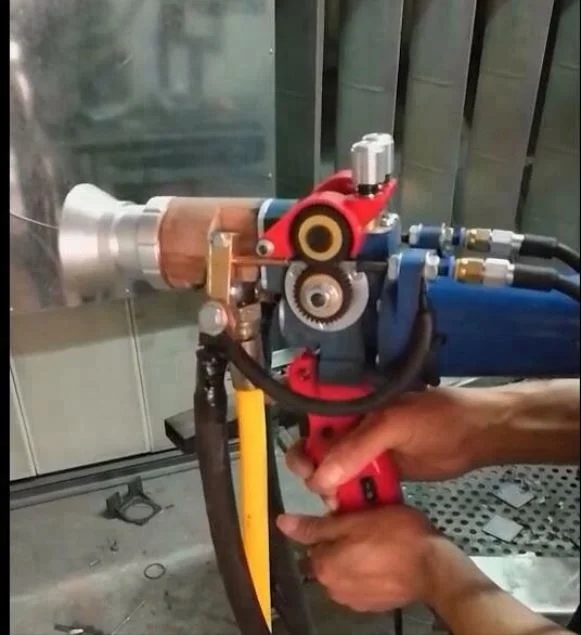

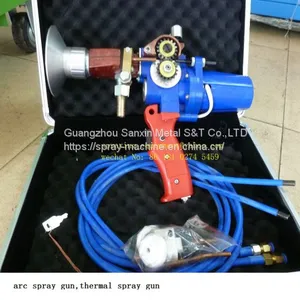

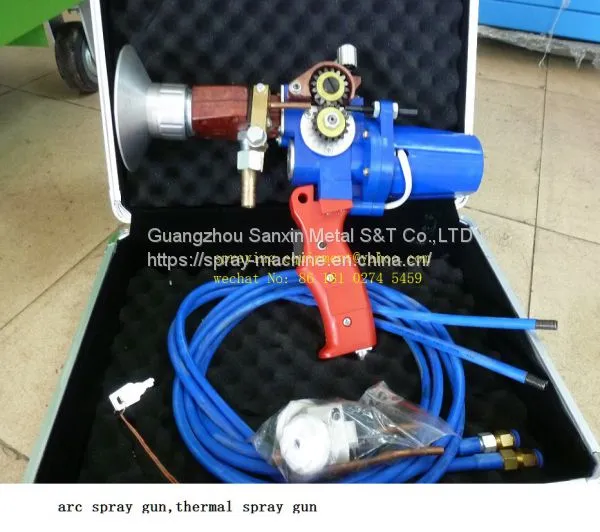

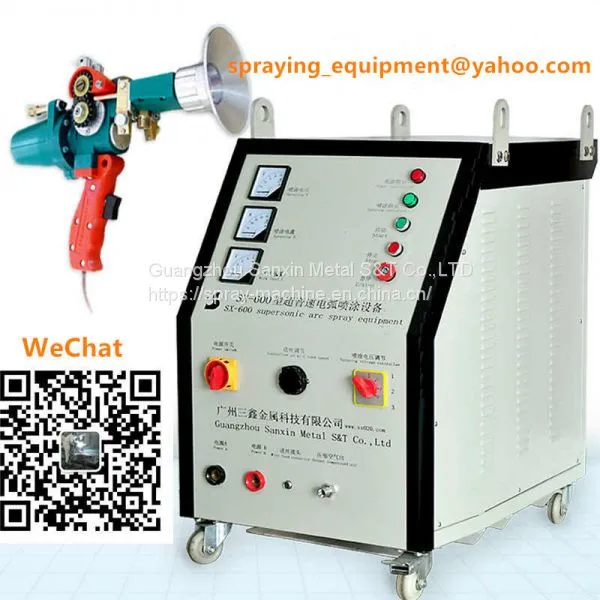

control cabinet +spray gun
2. characteristic of zinc spray equipment, aluminum spraying equipment, arc spray machine
(1) SX series arc coating machine is easy for operation and use. Operator only needs to control a few buttons to manage the spraying process. High efficency without hassle.
(2) Electric arc spray are characterized in high spraying efficiency,excellent coating quality and low production cost,especially applicable for large area anticorrosive spray.
(3)Models from SX-800 to SX-4000 are with automatic function which will improve efficency more. Wide extending range push/pull spray gun is visually and clearly connected with equipment. Power distribution system with current leakage protection is applied.
3.application of zinc spray equipment, aluminum spraying equipment, arc spray machine
control cabinet +spray gun

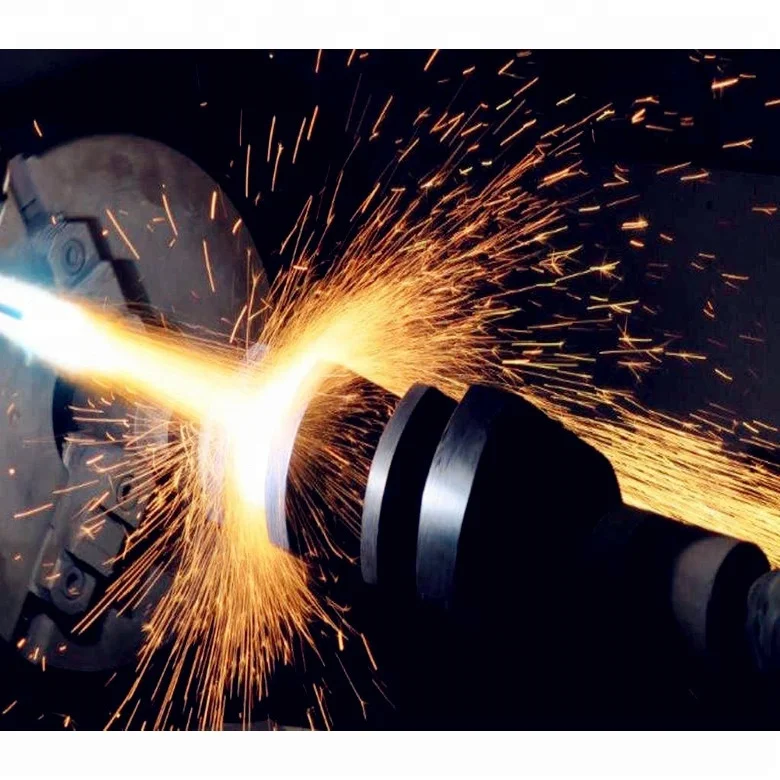

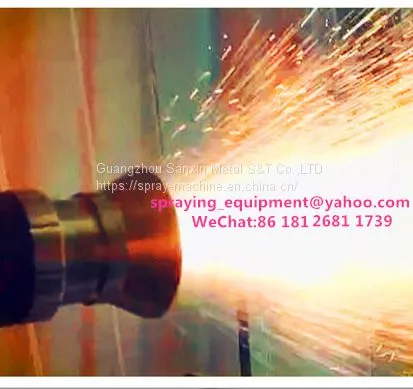

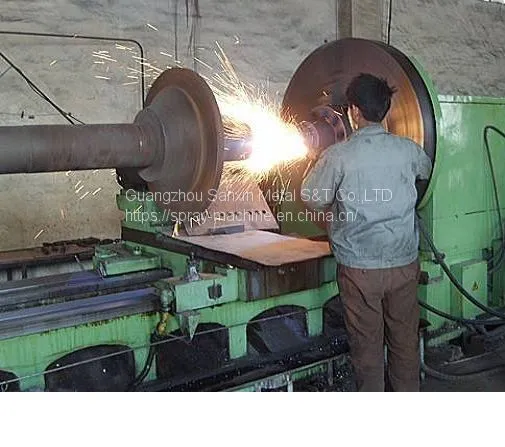

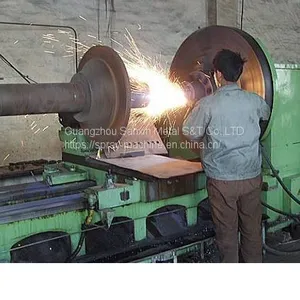

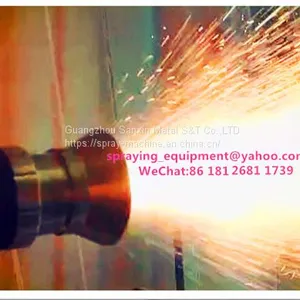

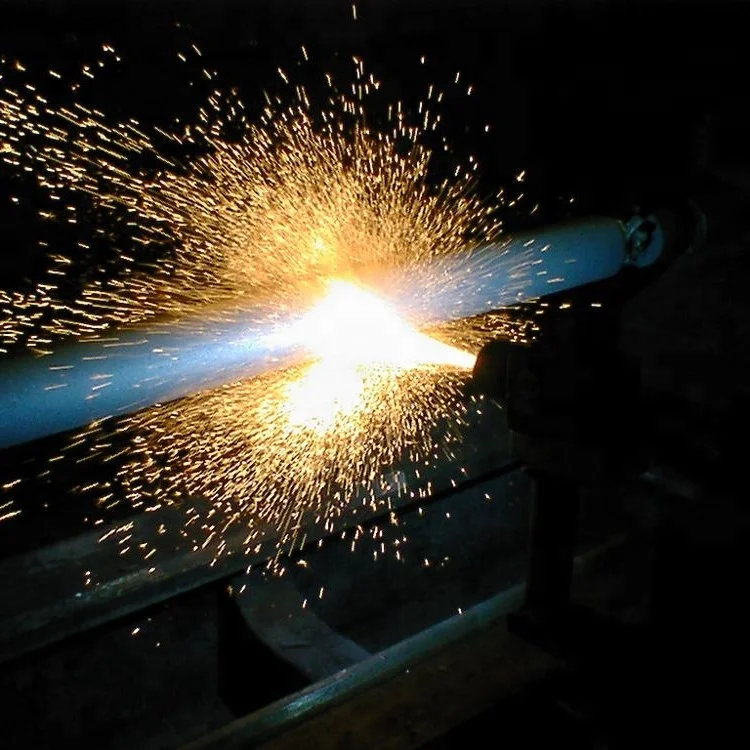

wire arc coating machine is used for spraying zinc, aluminum, copper, molybdnum, titanium, stainless steel, high carbon steel, nickel chromium alloy, wear-resistant alloy, Babbitt alloy material, etc, which can improve the wear-resistant ,and an-corrosion of the workpieces, also, can repair the broken workpieces.
4.Main technical parameter of arc spray machine, hot zinc spray, aluminum coating equipment, repairing machine sx600
Spray material |
Wire diameter |
Working current |
No-load volt |
Air hat diameter |
Maximum spray efficiency |
Zinc wire |
1.2-3.0 |
80-210 |
18-30 |
6-8 |
30 |
Al wire |
1.2-3.0 |
120-240 |
25-38 |
6-8 |
9.5 |
Steel wire |
2.0 |
150-200 |
35-40 |
7-8 |
6 |
High carbon steel wire |
2.0 |
150-220 |
10-44 |
8 |
5.5 |
Stainless steel wire |
2.0 |
150-220 |
10-44 |
8 |
5.5 |
Zn-Al, Pb-Sn alloy wire |
1.2-2.0 |
80-110 |
18-28 |
7 |
Air pressure |
Input power supply |
Output efficiency |
Output no-load volt |
Power supply weight |
Regulating volt |
>0.5Mpa |
Three phase 380V,50HZ |
16KW |
18-44V |
178kg |
0-24V |
