1. principle of arc spray machine
This high velocity arc spraying (high velocity arc spraying) is a technology which uses arc to melt metal,the arc is formed by combustion in two continuous feeding metal wire,then the melting metal is atomized by high speed airflow.Through the laval nozzle,the atomizing metal particles are accelerated to make them to exceed supersonic to spray to the workpieces to form a coating

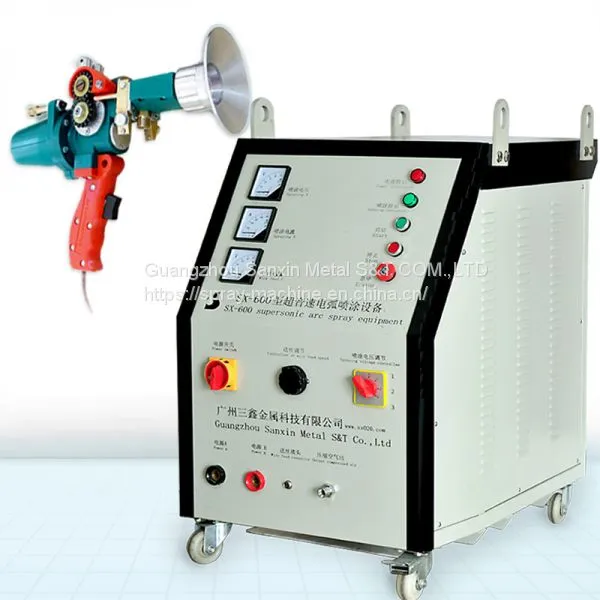

nstruction of arc spray gun : cabinet +spray gun
We have different models of high velocity arc spraying machine set series which would meet requirements for any scale of your project. We can even do customized equipment according to your requests. Please check the catalogue of our arc spray machine as below:
3.Sanxin high velocity arc spray equipment
model No |
power (KW) |
gun Qty |
wire diameter (mm) |
gas consumption (m3/min) |
application |
SX-150 |
7 |
1 |
1.6-2 |
2.3 |
Test and research on a small amount of spraying and coating |
SX-300 |
12 |
1 |
1.6-2 |
2.3 |
Spray zinc and aluminum ,small scale repair |
SX-400 |
15 |
1 |
2 |
2.3 |
Zinc ,aluminum, partial repairing process |
SX-500 |
18 |
1 |
2 |
2.3 |
Hardware repairing, small project construction |
SX-600 |
21.6 |
1 |
2 |
2.3 |
Spray hard alloy wire, boiler construction |
SX-800 |
28.8 |
2 |
2 |
4.6 |
Spray zinc and aluminum in big area, works automatically |
SX-1000 |
36 |
2 |
2 |
4.6 |
project construction ,big quantity process, works automatically |
SX-2000 |
72 |
4 |
2 |
9.2 |
Big project construction ,long time spraying project, big quantity of spraying work |
SX-4000 |
144 |
8 |
2 |
18.4 |
Big project construction ,long time spraying project, big quantity of spraying work |
The biggest difference of the arc spray machines above is the power ,data after code "SX "stand of electronic current ,from 150 to 4000,then power is from 7kw to 144kw accordingly ,of course ,with different price ,you can choose the economical and practical model based on your requirement ; we can recommend you after discussing more details
4. some parameter of arc spray wire materials
Spray material |
Wire diameter |
Working current |
No-load volt |
Air hat diameter |
Maximum spray efficiency |
Zinc wire |
1.2-3.0 |
80-210 |
18-30 |
6-8 |
30 |
Al wire |
1.2-3.0 |
120-240 |
25-38 |
6-8 |
9.5 |
Steel wire |
2.0 |
150-200 |
35-40 |
7-8 |
6 |
High carbon steel wire |
2.0 |
150-220 |
10-44 |
8 |
5.5 |
Stainless steel wire |
2.0 |
150-220 |
10-44 |
8 |
5.5 |
Zn-Al, Pb-Sn alloy wire |
1.2-2.0 |
80-110 |
18-28 |
7 |
Also,the velocity of micro paticles can reach above 420m/s. The axial direction air speed can reach 600m/s. The deposition rate of coating can reach 75%
5. advantage of arc spray machine
1) Stable and convenient
2) High adhesive force of coating: can reach 70Mpa)
3) Workpiece won’t be deformed and its structure won’t be changed.(℃)
4) High efficiency and wide application
5)Spray gun for long distance(30-meter-long-cable)
6)Unnecessary to change the wearing parts frequently
7)Convenient maintain and repair
6. Application of arc spray machine

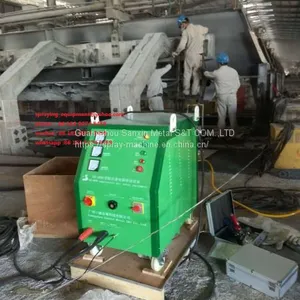

(1)It's suitable for on-site construction, and can use all kinds of metal and metal ceramic materials, such as alloy wires, Mo, Al, Zn, red copper, copper alloy, Babbitt etc.

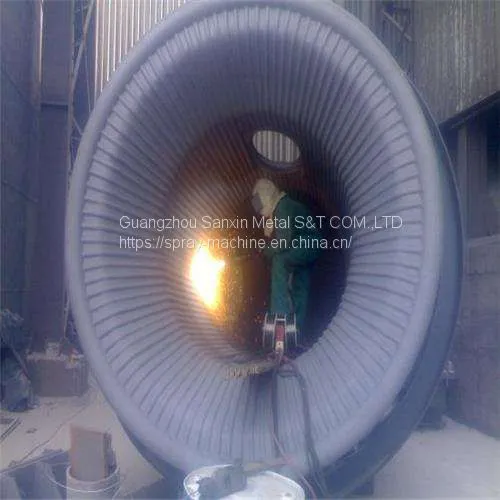

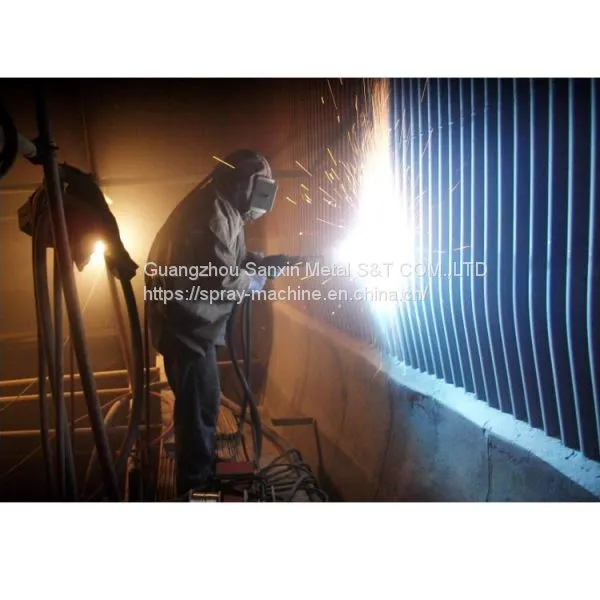

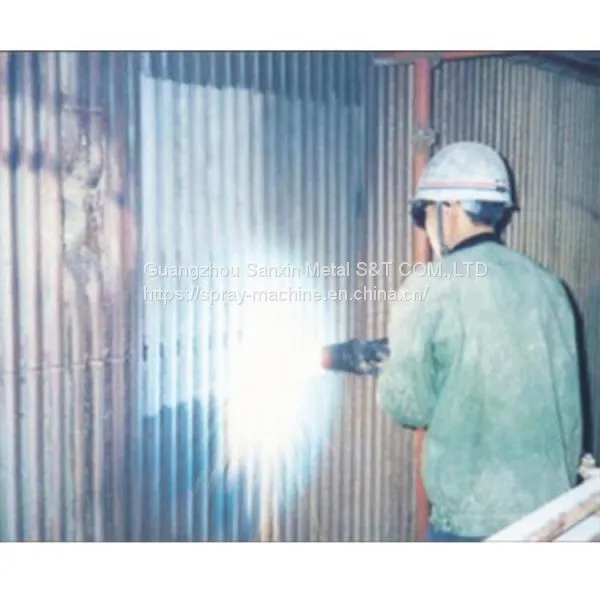

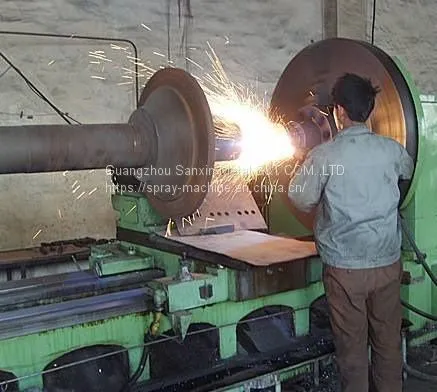

(2)It is widely applied in spraying anti-wearing and anti-rust coatings for boiler’s four kinds of tubes, coal pulverizing system (fan impeller and scroll casing), roller, dryer, axis, mould,etc.

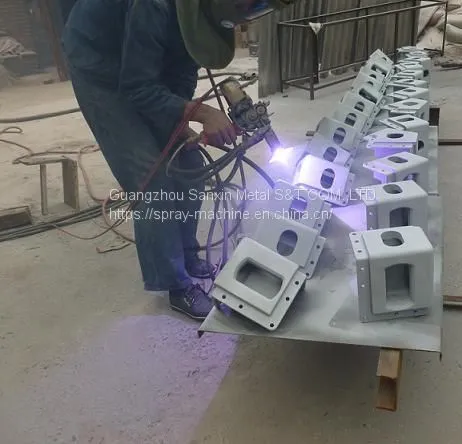

(3) can spray zinc or aluminum on the metal chairs ,metal facilities in the garden ,to improve the wear resistant ,wear corrosion of them, so as to lengthen their usage life .
(4) SX1000/SX2000/SX4000 even can spray big project construction ,long time spraying project
(5)new application in electrolytic aluminium field about cable conductor burning-out issue
If you are interested in our arc spray machine, please contact me , I will advise you accordingly ,thnaks
phone No:+86-181 2681 1739.
wechat No: 86 181 2681 1739
email: spraying_equipment@yahoo.com
