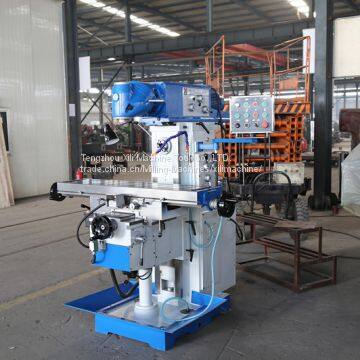

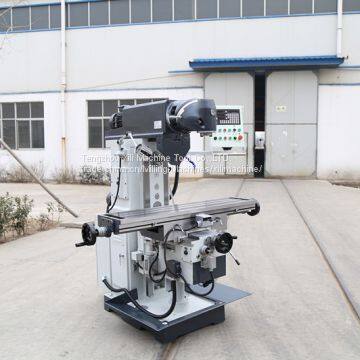

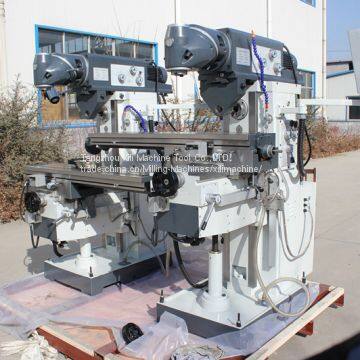

XQ6432 Medium Size Universal Milling Machine

Name: XQ6432 Medium Size Universal Milling Machine
Brand: yourongxili
SKU: 135044897
Availability: InStock

Tengzhou Xili Machine Tool Co.,LTD.

US$ 1000 - 8000 MOQ: 1 Set

Key Specifications

Brand Name:

yourongxili

Place of Origin:

China

Model Number:

XQ6432

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

30 days

Brand Name yourongxili

Place of Origin China

Model Number XQ6432

Type Universal

Certification CE ISO90

After-sales Service Provided Engineers available to service machinery overseas

Warranty 12 months

Weight 2800

Dimension(L*W*H) 1720*1680*1860

Voltage as customer request

Condition New

Power(W) 3

CNC or Not Normal

XQ6432 medium size universal milling machine

1. XQ6432 features X Y Z auto feed by Servo Motor

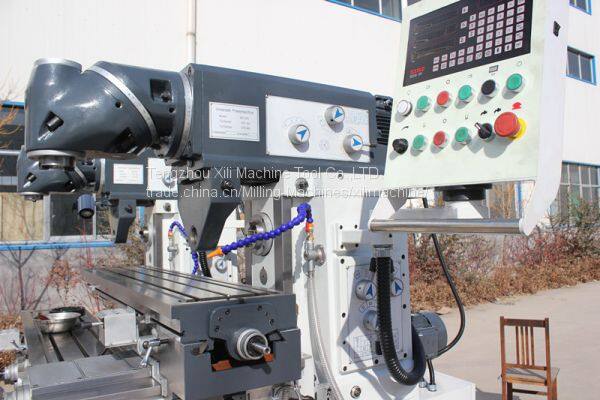

2. Universal swivel head can mill any angle surface through front half-sphere

3. Horizontal spindle with large speed range, suitable for low-speed heavy load process and high-speed precision process

4. 3-axis Digital Readout, Rotary table, Protective cover are available

Specification

Specifications	Unit	XQ6432	XQ6432A	XQ6432B	XQ6432C
Table size	mm	1270*320	1370*320	1270*320	1370*320
T-slots(NO./width/pitch)	mm	31480	31480	31480	31480
Max table travel - X/Y/Z	mm	720/300/400	820/300/400	900/380/400	1000/380/400
Spindle taper	-	7:24 ISO40	7:24 ISO40	7:24 ISO40	7:24 ISO40
Max rotary angle of table	-	±45°	±45	±45	±45
Distance between spindlecenter line and table surface	mm	75-475	75-475	75-475	75-475
Distance between spindle nose and table surface	mm	260-660	260-660	260-660	260-660
Distance from horizontal spindle center line to arm surface	mm	180	180	180	180
Spindle speed range	r.p.m	(V)11 steps 45-1660; (H)12 steps 35-1500	(V)11 steps 45-1660; (H)12 steps 35-1500	(V)11 steps 45-1660; (H)12 steps 35-1500	(V)11 steps 45-1660; (H)12 steps 35-1500
Arm travel	mm	400	400	400	400
Table feed(X/Y/Z)	mm/min	X Y:30-830 Z: 23-625	X Y:30-830 Z: 23-625	X Y:30-830 Z: 23-625	X Y:30-830 Z: 23-625
Table rapid speed		1335/1335/1000	1335/1335/1000	1335/1335/1000	1335/1335/1000
Main motor power	kw	3	3	3	3
Torque of X/Y/Z axis AC servo motor	Nm	10	10	10	10
Cooling pump motor power	W	40	40	40	40
Flow of cooling pump	L/m	12	12	12	12
Overall size	mm	172016801860	182016801860	172016801860	182016801860
Net weight	kg	1875	1925	1925	1975

Standard accessories

NO.	Name	Detail	QUA
1	ISO40 sets milling chuck	7:24 ISO40 4,5,6,8,10,12,14,16	1
2	Taper shank sets milling cutter arbor	7:24 ISO40-Φ27	1
3	Draw bar	M16(vertical, horizontal)	1
4	Machine vise	QB136	1
5	Allen Wrench	17*19	1
6	Double-ended wrench	22*24	1
7	Double-ended wrench	32*36	1
8	milling cutter arbor	Φ27	1
9	Nut	M16	2
10	Washer	16	2
11	Operation manual		1
12	Certification		1
13	EP1C series servo drive manual		1
