Low Temperature Heat Pump Evi Air Source Floor Heaint and Cooling

Guangzhou Mango Energy Technology Co., Ltd.
Low Temperature Heat Pump Evi Air Source Floor Heaint and Cooling thumbnail-1
Low Temperature Heat Pump Evi Air Source Floor Heaint and Cooling thumbnail-2
Low Temperature Heat Pump Evi Air Source Floor Heaint and Cooling thumbnail-3
Low Temperature Heat Pump Evi Air Source Floor Heaint and Cooling thumbnail-4
Low Temperature Heat Pump Evi Air Source Floor Heaint and Cooling thumbnail-5
Low Temperature Heat Pump Evi Air Source Floor Heaint and Cooling photo-1
Low Temperature Heat Pump Evi Air Source Floor Heaint and Cooling photo-2
Low Temperature Heat Pump Evi Air Source Floor Heaint and Cooling photo-3
Low Temperature Heat Pump Evi Air Source Floor Heaint and Cooling photo-4
Low Temperature Heat Pump Evi Air Source Floor Heaint and Cooling photo-5
US$ 1000 - 1500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Mango
Place of Origin:
China
Model Number:
MG-05KFGRS
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Huang Pu Port
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Mango
Place of Origin China
Model Number MG-05KFGRS
ModelMG-03KFGRSMG-03KFGRS/380MG-05KFGRSMG-10KFGRSMG-20KFGRS
Standard componentsCabinet/colorSpray coating
RefrigerantR407C
Power supply220V~240V/50Hz/1ph380V~415V/50Hz/3ph

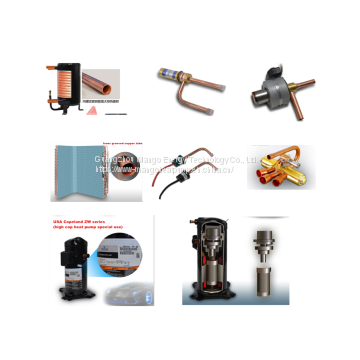

Compressor typeCopeland EVI compressor
Compressor model * quantityZW30KSE*1ZW34KSE*1ZW61KSE*1ZW61KSE*2ZW108KSE*2

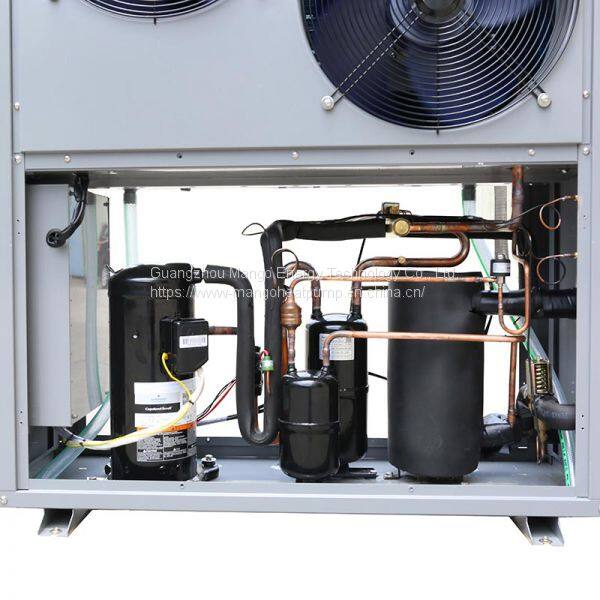

CondenserHigh efficiency shell and tube heat exchanger
Economy unitPlate heat exchanger
EvaporatorBlue hydrophilic aliuminium foil,wavy fin  and copper tube heat exchanger
Throttle unitHeat expansion valve
A/C contactorFuji
Thermal relayFuji
ControllerMuti-function controller
Protection functionTempreature protection, time protection, water flow protection, antifreeze protection, current protection
Low pressure switch0.05/0.15MPa
High pressure switch3.0/3.2MPa
Power supply line size2.5mm22.5mm24mm26mm210mm2
Package
W*D*H910*500*1320910*500*13201160*500*14101510*820*13201940*1120*2180
SpecificationsHeating capacity 20ºCkW10.811.820.640.674.4
Input power when heatingkW2.813.15.410.719.6
Rated currentA12.45.9917.635.2
COP
3.843.813.813.793.80
Hot water capacityL/H2322544438731599
Heating capacity -10ºCkW6.3712.624.443.2
Input power when heatingkW2.582.95.19.917.4
COP
2.442.412.472.462.48
Hot water capacityL/H135150271524929
Heating capacity -20ºCkW4.95.410.319.631
Input power when heatingkW2.452.685.059.815.36
COP
2.002.012.042.002.02
Hot water capacityL/H105116221421666
Rated outlet water tempºC55
Max outlet water tempºC60
Water flowm3/H241526384606907816636
Level of protection
IPX4IPX4IPX4IPX4IPX4
Electric shock proof grade
IIIII
NoisedB(A)≤55≤55≤58≤66≤75
Net weightkg112112164320556
Gross weightkg118118174333606
DimensionW*D*H830*490*1160830*490*11601090*480*12601450*740*11501850*1000*1950
Pipe sizemmDN25DN25DN25DN32DN50
Working mode

heating













Product Tags: heat pump , air to water heat pump , EVI air source heat pump , heating pump , water to water heat pump , swimming pool heat pump , geothermal/water source heat pump , high temperature air source heat pump , cascade system heat pump
