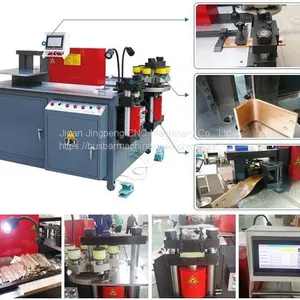

This machine is for copper/aluminum busbar bending, punching and shearing.
This machine is widely used in high-low switchgear manufactuting, electrical control panels building, power station establishment etc.
The technology parameters of CNC Hydraulic Copper Busbar Fabrication Machines
| Function | Item | Model | |
| JPMX-303ESK | JPMX-503ESK | ||
| Punching | Max. Punching Force (KN) | 300 | 500 |
| Punching Diameter Range (MM) | 4.3-25 | 4.3-34 | |
| Max. Thickness (MM) | 12 | 16 | |
| Max. Width (MM) | 150 | 250 | |
| Shearing/Cutting | Max. Shearing Thickness (MM) | 12 | 16 |
| Max. Shearing Width (MM) | 150 | 250 | |
| Vertical Bending | Max. Bending Force (KN) | 300 | 500 |
| Max. Width (MM) | 150 | 250 | |
| Max. Thickness (MM) | 12 | 16 | |
| Honrizental Bending | Max. Width (MM) | 100(10mm THK) | 120(10mm THK) |
| Max. Angle (Degree) | 90° | 90° | |
| Out Dimension | MM | 1750*1350*1260 | 1850*1500*1400 |
| Power | KW | 3*4KW | 3*5.5KW |
| Weight | KG | 1350KG | 1950KG |
The Accocessories of CNC Hydraulic Copper Busbar Fabrication Machines
8 sets of punching die. (6 round dies, 2 oblong dies) 1 set of shearing mold
2 sets of horizontal bending mold 2 sets of vertical bending mold
1 set of embossing mold 1 set of U bending mold
1 set of oil filler 1 set of inner hexagon spanner
3 sets of foot switches 1 set of hydraulic system sealing ring
1 set of random tools 2 pieces of Limit Switch
1 piece punching location needle.
Product Features
1. The cut surface is smooth and neat, no droop, no burrs, no waste
2. Rotary turret punch unit installed 6 dies, less replacing, high efficiency
3. More work space added by double work table, three work positions can be used at the same time
4. Easily to be moved with four castors
5 Manual button and foot switch are optional
6. Adjustable working stroke
7. on users requirement, special mold for special shape
8.Controlling the bending unit by the PLC control system.
Only need to input the busbar thickness and bending angle,the machine will process automatically.
Welcome to visit our company and factory.
And you will realize that our machine is your best choice.
In order to attract more customers and to extend machines' influence,our company offers the factory prices.
We just hope to finf a way to cooperate with you and your company longer.
Packaging & Shipping
Firstly, the CNC Hydraulic Copper Busbar Fabrication Machines is to be packed with plastic sheet for cleaning and damp proofing.
Secondly, fasten the CNC Hydraulic Copper Busbar Fabrication Machines into the wood case for safety and against clashing.
1. Our quality certificate,
We are professional manufacturer for CNC Hydraulic Copper Busbar Fabrication Machines in China for more than ten years.
Our CNC Hydraulic Copper Busbar Fabrication Machines are approved by ISO & CE certificate, the machine quality is highly respected among customers in North America, Europe and most Asia countries.
