Product Description:

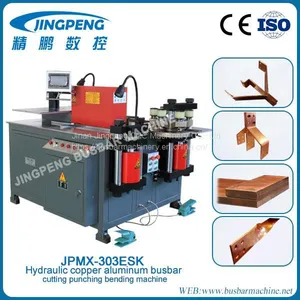

This series three in one JPMX-303ESK busbar machine for HV/LV electrical switchgear has three units:punching, shearing and bending.It is easy to adjust each unit to shorten the processing time and improve the production efficiency.
Processing material:
Brass/Copper and Aluminum Busbar.
Functions:
1. Bending at vertical and horizontal direction.
2. Punching for round and oblong hole.
3. Cutting busbar.
4. Special for embossing, knurling, twisting, cable joints pressing.
Detailed Images:
Detailed Parameters:
Function |
Item |
JPMX-303ESK |
Punching |
Max. Punching Force (KN) |
300 |
Punching Diameter Range (MM) |
Ø4.3-Ø25 |
|
Max. Thickness (MM) |
12 |
|
Max. Width (MM) |
160 |
|
Shearing/Cutting |
Max. Shearing Thickness (MM) |
12 |
Max. Shearing Width (MM) |
160 |
|
Vertical Bending |
Max. Bending Force (KN) |
300 |
Max. Thickness (MM) |
12 |
|
Max. Width (MM) |
160 |
|
Horizontal Bending |
Max. Width (MM) |
100 |
Max. Angle (Degree) |
90° |
|
Out Dimension |
MM |
1800*1400*1480 |
Power |
KW |
3*4kw |
Weight |
KG |
1420kg |
CNC Precision |
Bending Precision |
±1° |
Repeat Bending Precision |
±0.3° |
Accessories of JPMX-303ESK busbar machine for HV/LV electrical switchgear:
8 sets of punching die. (Ø7, Ø9, Ø11, Ø13, Ø15, Ø17, Ø13 * 18, Ø17 * 21 or as per customer's requirement)
1 set of shearing die
2 sets of horizontal bending die
2 sets of vertical bending die
1 set of embossing die
1 set of U bending die
1 set of oil filler
1 set of tool for die installing
3 sets of foot switches
1 set of hydraulic system sealing ring
2 pieces of Limit Switch
1 piece punching location pin.
Applicable Industry:
This JPMX-303ESK busbar machine for HV/LV electrical switchgear is widely used in Switch cabinet, electric control panel manufacturing , high low voltage switchgear, electric transformer station,Electric panel ,voltage transformer,appliance switch, ship manufacturing,electric elevator manufacturing,electric cabinet manufacturing , Power distribution system product manufacturing.
Main Characteristics:
1. The cut surface is smooth and neat, no droop, no burrs, no waste
2. Rotary turret punch unit installed 6 dies, less replacing, high efficiency
3. More work space added by double work table, three work positions can be used at the same time.
4. Controlled by PLC, bending precision at ±1 degree and repeat degree at ±0.3 degree
5. Easily to be moved with four casters
6. Manual button and foot switch are optional
7. Adjustable working stroke
8. On users requirement, special mold for special shape
Certificate : CE & ISO 9001
Contacting person:Garfield(Sales manager)
Skype/Whatsapp/Mob:+86 13853189175
Send Inquiry to This Supplier
