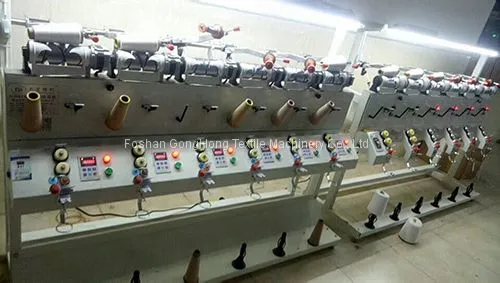

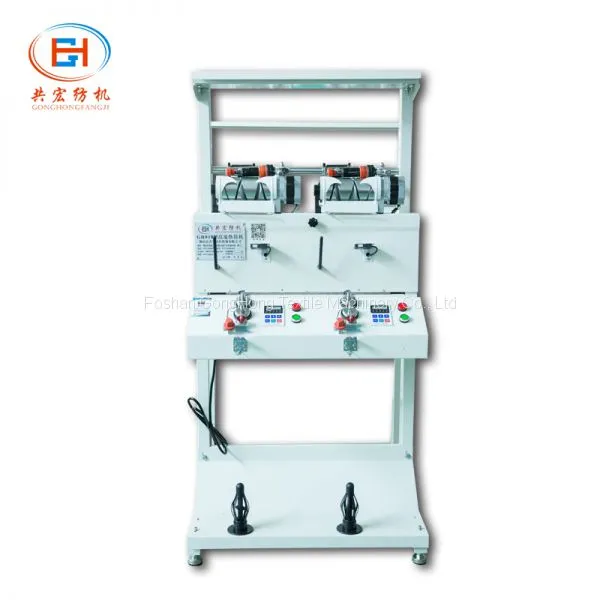

GH018-B High speed yarn cone to cone rewinding machine (Within Length Calculator )

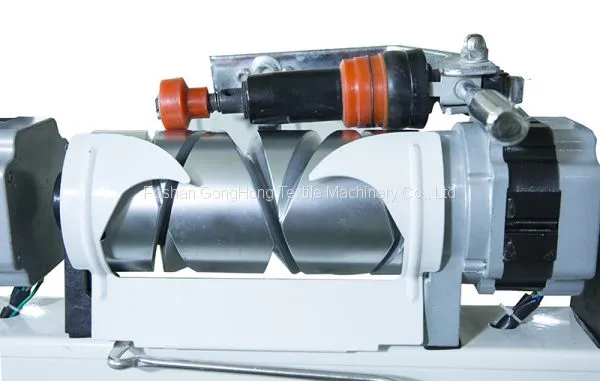

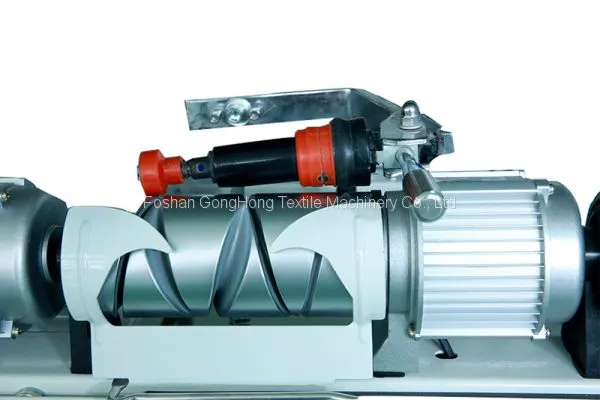

Grooved drum

O/D 82mm,pitch 2.5,symmetrical 0°

Take-up package

0°Cylindrical tubes, or conical 3°30′,4 °20′

( Selection )Automatic length fixing

Electronic winding length setting based on finished product, max. :999999m

( Selection )Slow start

For smooth start and better winding quality

Yarn brake with weights

It avoids the fluttering of the feeding yarn, provide suitable winding tension

Electric waxing device

Adjusting the clearing gap

Configuration

12spindles / section

Composition

Max. :9 section / set(108 spindles)

Motorization

1 coaxial 3phased AC motor per spindle, controlled by 1 inverter in each line of 54 spindles

Max. speed

1100m /min

Traverse

Standard:147mm

Balancer

The winding pressure can be controlled by balance of spring

Yarn detector

With optical sensor

Max. package

250mm

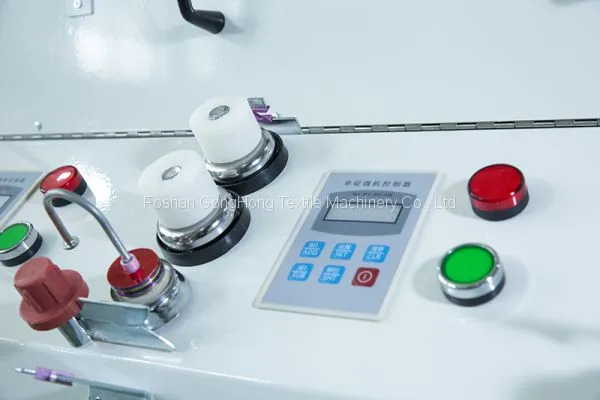

Start / stop

By film switch, general control for single side by LCD

Radial anti patterning system

The anti patterning parameter is controlled by computer

(Selection)Blowing and suction cleaner

1100W motor power of cleaner

Absorbed power

100W per spindle at max. speed, excluding the moto power of cleaner

Power supply

3 phased 400V ±105, 50/60Hz

Machine(12spindles)weight and dimension

350kg 2250mm (length)×1100mm(width)×1400mm(height)

Weight for cleaner

132 kg According to spindle quantity

Weight and dimension for electric box

45kg 700mm(length)×300mm(width)×1320mm(height)

Lighting system

Lamp

Air splicer

Ordered separately
