Home > Products > Dedicated high-speed type > GH018-A High speed yarn cone to cone rewinding machine

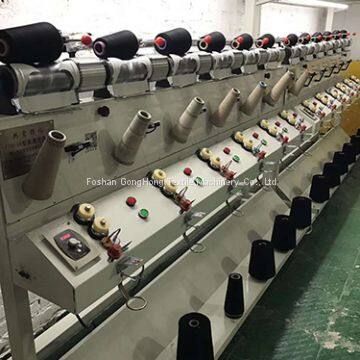

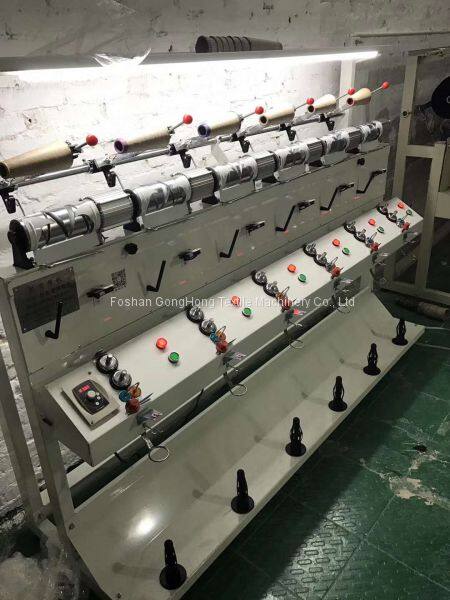

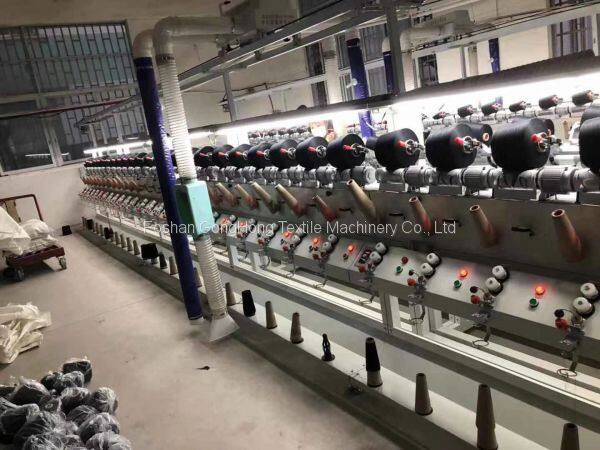

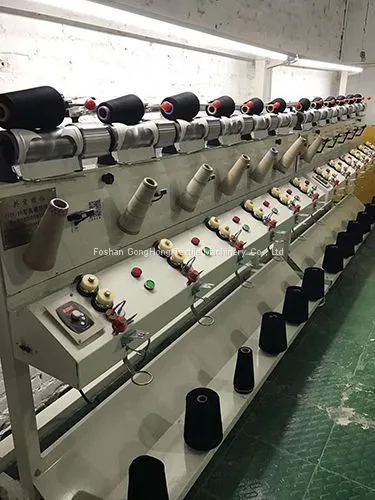

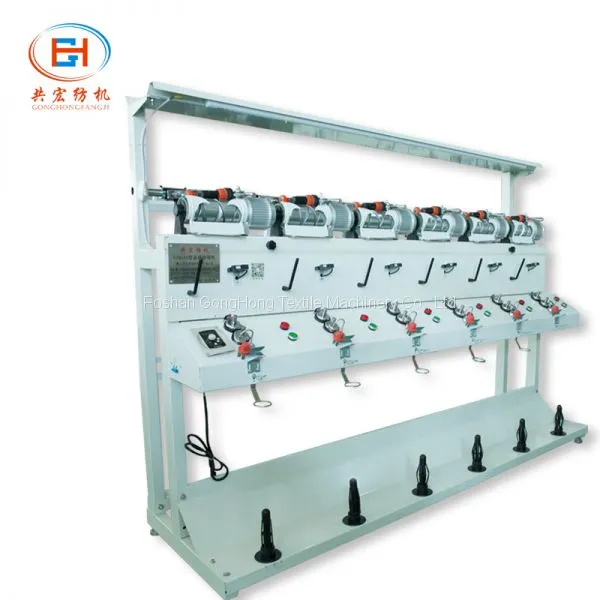

GH018-A High speed yarn cone to cone rewinding machine
- 5000 Set / Sets per Month
- Foshan
- T/T Other
- 30 days
Product Details
Brand Name: | GongHong | Place of Origin: | China | Model Number: | GH018-A |
After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | One year Warranty | Weight: | 350 KG |
Dimension(L*W*H): | 2048*1100*1650 mm | Production Capacity: | 10000 Spindles/ Year | Voltage: | 220V, 380V |
Application: | Suitable for winding yarn of cotton, flax, silk, chemical fiber | Condition: | New | Power(W): | 90 W/ Spindle |
Automatic Grade: | Semi-Automatic | Memory Capacity: | 6 Spindles/ Set |
Product Description
GH018-A High speed yarn cone to cone rewinding machine used in chemical fiber, cotton yarn, filament, low stretch yarn, winding into a cone or a cylinder, for the next process, good forming, without the phenomenon of edge collapse. GH018-A type to alleviate the labor intensity of the process,adaptation high speed production.(For the major manufacturers: lace factory, knitting factory, circular knitting machine, hosiery machine etc..)
GH018-B type High speed yarn cone to cone rewinding machine contain Length calculator
GH018 A Technical Parameters
Technical characteristics | Technical Parameters |

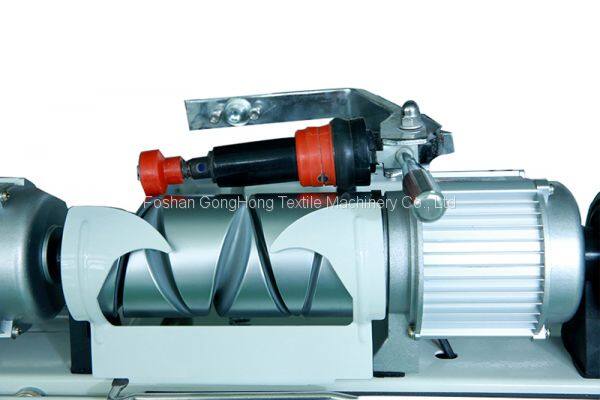

Grooved drum | O/D 82mm,pitch 2.5,symmetrical 0° |
Take-up package | 0°Cylindrical tubes, or conical 3°30′,4 °20′ |
( Selection )Automatic length fixing | Electronic winding length setting based on finished product, max. :999999m |
( Selection )Slow start | For smooth start and better winding quality |
Yarn brake with weights | It avoids the fluttering of the feeding yarn, provide suitable winding tension |
Electric waxing device | Adjusting the clearing gap |
Configuration | 12spindles / section |
Composition | Max. :9 section / set(108 spindles) |
Motorization | 1 coaxial 3phased AC motor per spindle, controlled by 1 inverter in each line of 54 spindles |
Max. speed | 1100m /min |
Traverse | Standard:147mm |
Balancer | The winding pressure can be controlled by balance of spring |
Yarn detector | With optical sensor |
Max. package | 250mm |
Start / stop | By film switch, general control for single side by LCD |
Radial anti patterning system | The anti patterning parameter is controlled by computer |
(Selection)Blowing and suction cleaner | 1100W motor power of cleaner |
Absorbed power | 100W per spindle at max. speed, excluding the moto power of cleaner |
Power supply | 3 phased 400V ±105, 50/60Hz |
Machine(12spindles)weight and dimension | 350kg 2250mm (length)×1100mm(width)×1400mm(height) |
Weight for cleaner | 132 kg According to spindle quantity |
Weight and dimension for electric box | 45kg 700mm(length)×300mm(width)×1320mm(height) |
Lighting system | Lamp |
Air splicer | Ordered separately |
