Home > Products > Bobbin winding machine > GH018-D 280 type high speed large volume winder

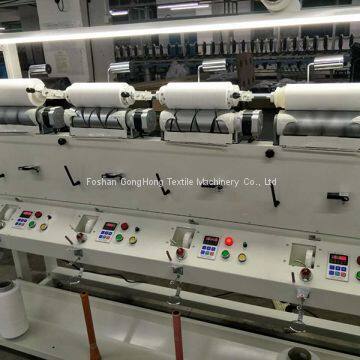

GH018-D 280 type high speed large volume winder
- 5000 Set / Sets per Month
- Foshan
- T/T Other
- 30 days
Product Details
Brand Name: | GongHong | Place of Origin: | China | Model Number: | GH018-D 280 |
After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | One year Warranty | Weight: | 350 KG |
Dimension(L*W*H): | 2048*1100*1650 mm | Production Capacity: | 10000 Spindles/ Year | Voltage: | 220V, 380V |
Application: | Used in cotton, wool, silk, linen and blended yarn, 2-5 ply yarns together | Condition: | New | Power(W): | 180 W/ Spindle |
Automatic Grade: | Semi-Automatic | Memory Capacity: | 4 Spindles/ Set |
Product Description
GH018-D 280 type high speed large package winder, used in chemical fiber, cotton yarn, industrial filament, low elastic yarn, mop line, winding into a conical or cylindrical, for the next process, good forming, high efficiency, without the phenomenon of edge collapse, GH018-D 280 type high-speed automatic function to alleviate the labor intensity of the process,adaptation high speed production.
Elastic type: the yarn bobbin inverted into a soft, for the next process (high temperature and high pressure dyeing machine)
GH018-D 280 type Technical parameters
Technical characteristics | Technical parameters |
Bobbin spec | 10″(280mm-300mm) |
Layout | Double sides, per machine has (4-48)spindles |
Power supply | Three-phase 380V 50/60HZ |
Transmission | Every spindle is driven by a AC motor individually |
Power consumption | 0.18KW/spindle |

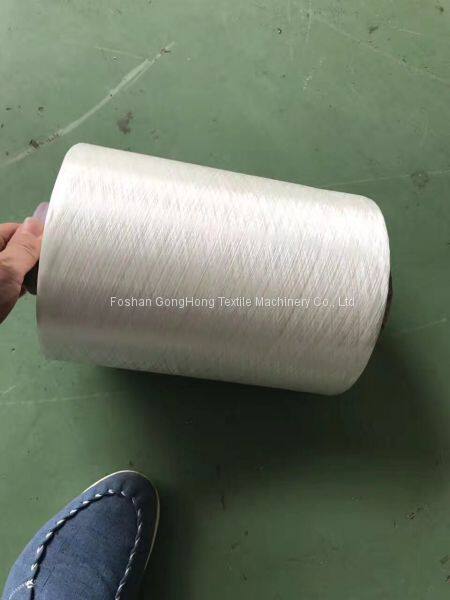

Take-up package | Cylindrical(0°);cone |
Package diameter | Max.200 and 300mm |
Yarn speed | 300-1000m/min |
Anti overlapping electronic device | Inverter control |
Length counting device | Programmable controller (PLC) centralized control / display meter |
Tension device | Every spindle has a self-cleaning yarn tension and waxer adjusting device |
Slub catcher | Every spindle has a mechanical slub catcher |
Yarn break control device | The spindle will stop when the yarn breaks by a yarn break control device |
Speed regulation | Frequency control |
Electronic slub catcher | Ordered separately |
Air splicer | Ordered separately |
Lighting system | Lamp |
Dimensions | 1920(length)×850(width)×1650(height)mm 4 spindles size |
