Home > Electrical & Electronics > Transmitter > Pressure Transmitter > 316L Stainless Steel Diaphragm 19mm Silicon Piezoresistive Pressure Sensor

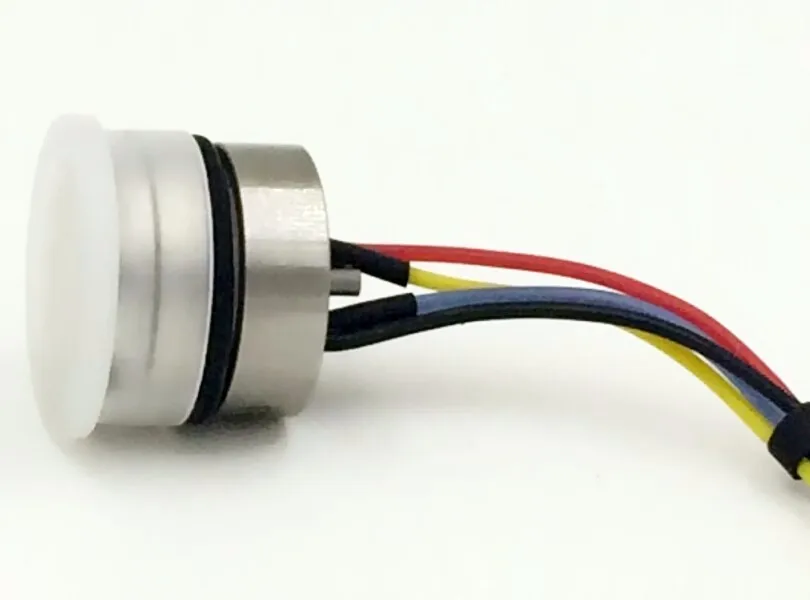

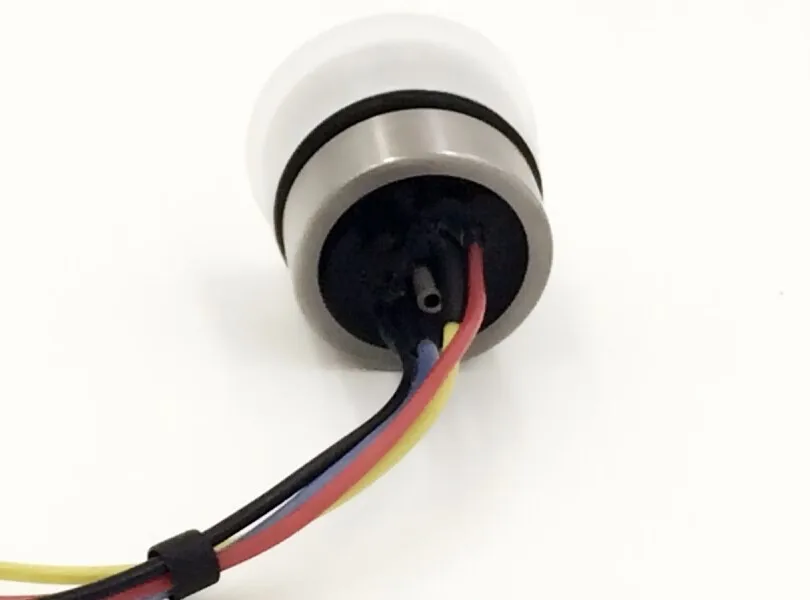

316L Stainless Steel Diaphragm 19mm Silicon Piezoresistive Pressure Sensor

Xi`an Shelok Instrument Technology Co., Ltd
316L Stainless Steel Diaphragm 19mm Silicon Piezoresistive Pressure Sensor thumbnail-1
316L Stainless Steel Diaphragm 19mm Silicon Piezoresistive Pressure Sensor photo-1
US$ 13 - 18 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Shelok
Place of Origin:
China
Model Number:
SLK-19S
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
All port
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Shelok
Place of Origin China
Model Number SLK-19S

piezoresistive silicon pressure sensor, the main element is a diffused silicon with high stability. It utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to sensing element. The sensing  element uses 316L stainless steel to packing and thick film circuit to do temperature compensation and zero correction. It has high reliability and stability.

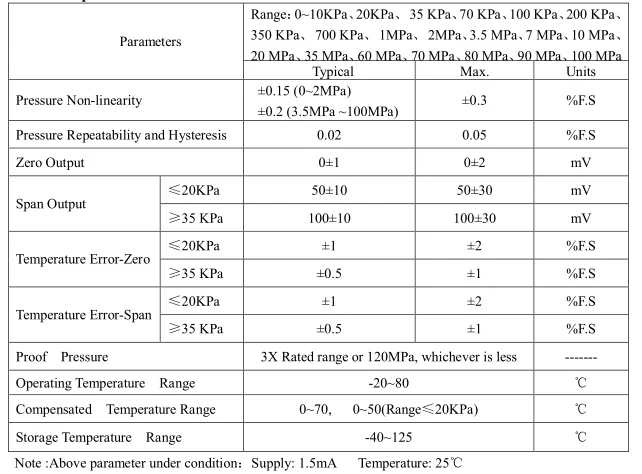

Wide measurement range:0~10KPa~100Mpa
Piezoresistive silicon sensing element
Full316LSS,Full Titanium or Hastelloy diaphragm
O-ring mount
High Accuracy and stability


Measurement pressure of gas and liquid
Petroleum exploitation
Water supply、warm supply of town
Process control system
Aviation and navigation inspection
Hydraulic pressure






Product Tags: 316L stainless steel pressure sensor , piezoresistive pressure sensor , diaphragm pressure sensor
