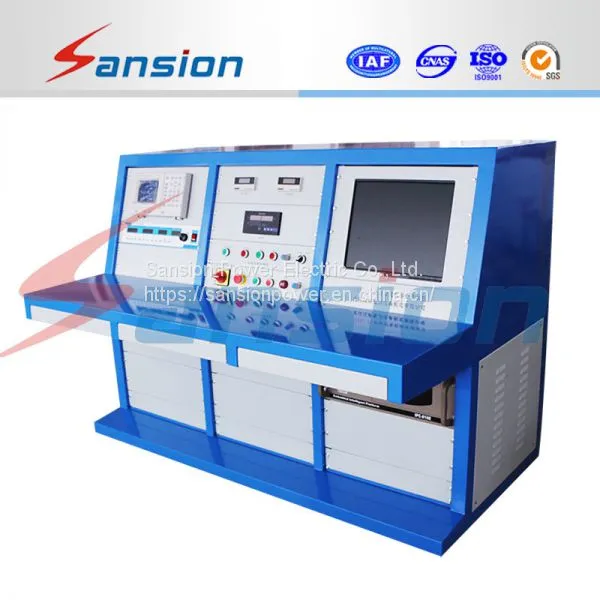

Help CenterAutomatic Intergrated AC/DC Motor Test Bench
Related Products
-
Variable Frequency AC Motor Test BenchUS$ 1000 - 21000MOQ: 1 Set -
Automatic Intergrated AC/DC Motor Test BenchUS$ 1000 - 21000MOQ: 1 Set
-
Variable Frequency AC Motor Test BenchUS$ 1000 - 10000MOQ: 1 Set
-
Motor Generator Test System of 30kVA 150HzUS$ 1000 - 10000MOQ: 1 Set
-
Auto Controlled AC Hipot Test SetUS$ 1000 - 10000MOQ: 1 Set
General Information:
The SXDJ is applied for ex-work and after maintaining testing on AC motor, DC motor and variable frequency motor with which capacity of 0-10000KW and voltage degree 0-10KV.
The system is integrated with industry PC, power source system, controlling system, sensor, signal adjusting module, data sampling hardware & software, numerical computing software, graphical display & operation software, test report generating, waveform & measuring results storage and printing software.
Features:
Fully English interface, auto printing, easy to operate.
Motor AC hipot testing part is portably designed, easy to move.
For HV motor of capacity 630KW-9000KW, voltage 6KV-10000V, it is needed to be equipped with 10KV booster, 10KV HV CT/PT and etc.
Specification:
| Main Testing Items: |
Electric Strength |
| Measuring condition | |
| Insulation Resistance | |
| Cold Resistance | |
| Low Starting Current | |
| Locked-rotor Current | |
| No-Load Power | |
| No-Load Current | |
| Leakage Current | |
| Turn-To-Turn Insulation |
More details, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation. Thank you!
