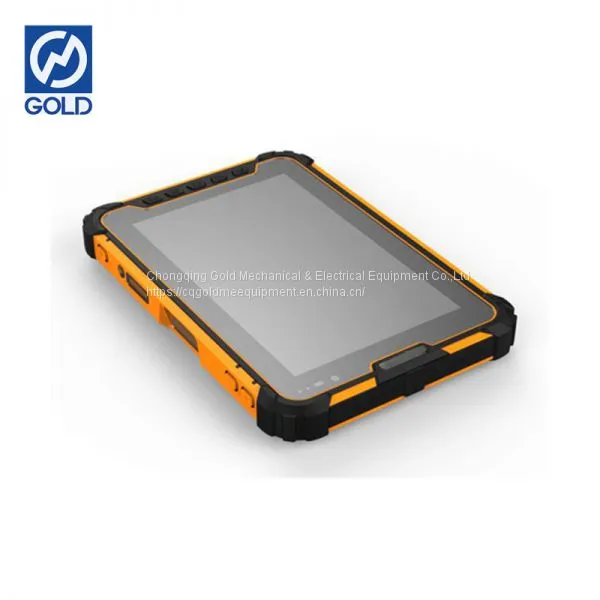

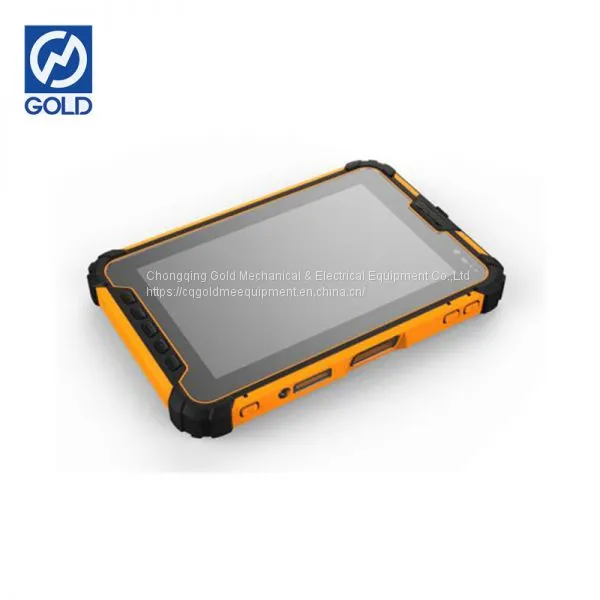

Anti-shock IP67 GIS Tablet GPS & GLONASS Dual Satellite Technology
Technical Specification
CM Module
GPS L1, L2, L2C
GLONASS L1 L2
BDS B1 B2
SBAS(WAAS/ EGNOS/ MSAS)
Support RTCM 2.1/2.3/3.0/3.1/3.2, CMR, CMR+ and RTCA
Accuracy (RMS)
Single positioning: 2m
Network RTK: 2cm
Static: ±5mm+ 1ppm
DM Module
GPS L1, L2
GLONASS L1
BDS B1
SBAS (WAAS/ EGNOS/ MSAS)
Support RTCM 2.3/ 3.1/ 3.2
Accuracy (RMS)
Single positioning: 2.5m
Network correction: 50cm
Barcode scanning: Optional
RFID function: Optional
Product Features

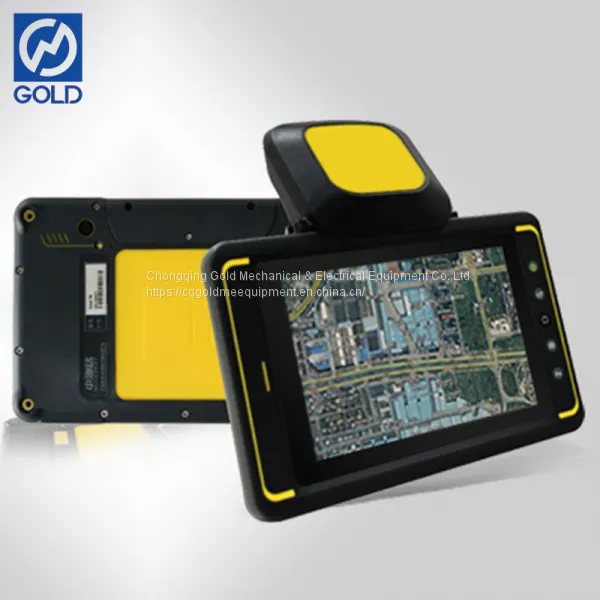

The QpadX5 tablet is a high-precision rugged tablet designed for harshfield work. Connected to a high-accuracy GNSS module, the Qpad X5 can achieve 2cm accuracy RTK performance. With professional mobile GIS software, the Qpad X5 is the best choice for your GIS field work and industry solution.
High-accuracy GNSS module realize RTK performance
Connected with optional high-accuracy GNSS module, the Qpad X5 can achieve RTK performance with 2cm accuracy.
2 Centimeter Solution, Sub-meter Solution
Industry rugged design for field work
7-inch highlight screen give you a comfortable working and viewing experience
Highlightdisplay designenable the visible capacity even in direct sunlight.
Industry rugged designIP 67
High performance tablet computer
Android 5.0 OS and 8-core processor makes the Qpad X5 impressive high speed
More than 8 hours battery life ensures the whole day work in the field.
WiFi, Bluetooth, and dual SIM card for 3G/4G enable the convenient connectivity.
Professional mobile GIS software and application solution
Mobile GIS data collection
Forest inventory solution
Cadastral solution
