Horizontal & Vertical Static GNSS Surveying RTK System China Supplier
US$ 1000 - 5000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
GOLD
Place of Origin:
China
Model Number:
V90
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai, Ningbo, Shenzhen, Guangzhou etc.
Delivery Detail:
7 days
Related Products
-
Intelligent GNSS RTK Survey System With Bluetooth Work With Network RTKUS$ 1000 - 5000MOQ: 1 Set -
Network GNSS RTK System Supports GPS/ GLONASS/ GALILEO/ BDS/ SBAS SignalsUS$ 1000 - 5000MOQ: 1 Set
-
Highly Efficiency Network GNSS RTK System With Ultimate Compact DesignUS$ 1000 - 5000MOQ: 1 Set
-
New High Quality GNSS Receiver GNSS RTK Surveying System SupplierUS$ 1000 - 5000MOQ: 1 Set
-
GNSS RTK System GNSS Integrated Solution for Surveying and MappingUS$ 1000 - 5000MOQ: 1 Set
Brand Name
GOLD
Place of Origin
China
Model Number
V90
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd is specialized in manufacturing and developing of Geophysical Exploration Instrument such as Resistivity Meter, IP Instrument, Resistivity Image, Seismic Instrument, Electromagnetic Instrument, Borehole Camera, Borehole Logging System, Water Level Meter; Borehole Drilling Equipment including Core/ Water Well/ Tunnel/ Engineering/ Anchor Drilling Rigs&Accessory and Geodetic Surveying Instrument(GNSS RTK System, Total Station, GIS Mapping and Echo Sounder.
Horizontal & Vertical Static GNSS Surveying RTK System China Supplier

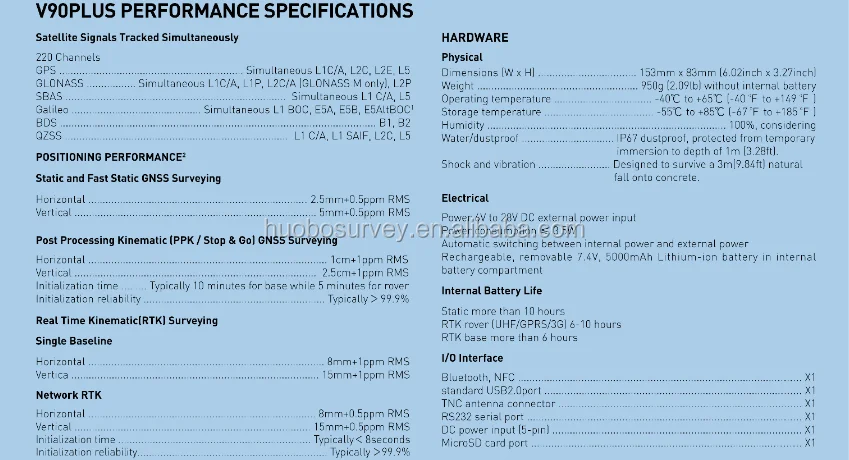

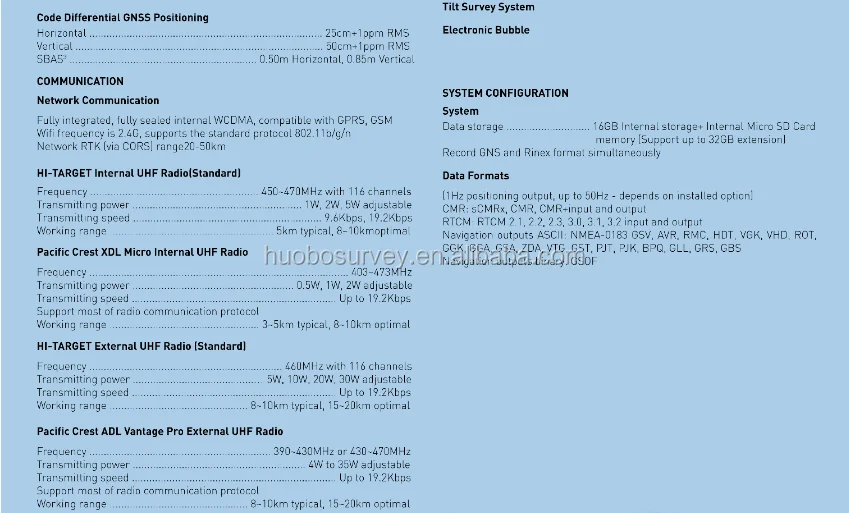

Technical Specification
Product Features

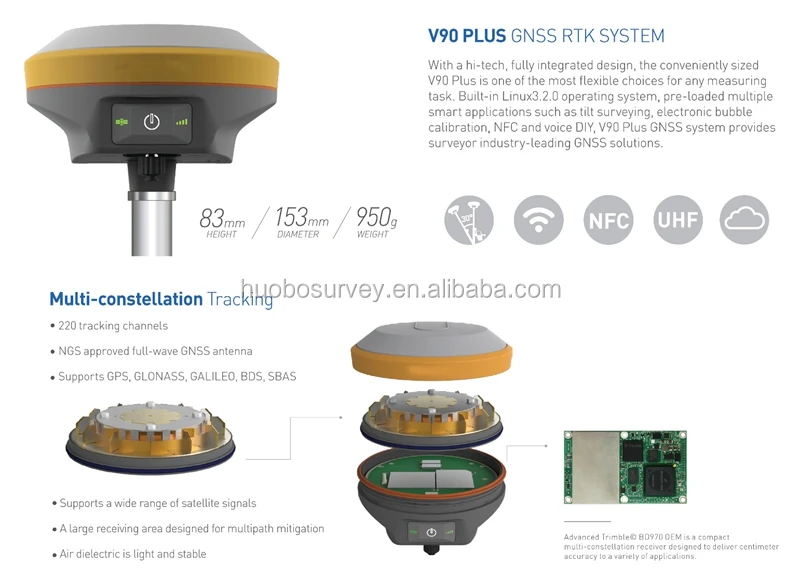

V90 PLUS GNSS RTK GPS
With a high-technical, fully integrated design, the conveniently sized V90Plus is one of the most flexible choices for any measuring task. Built-in Linux3.2.0 operating system, pre-loaded multiple smart applications such as tilt surveying, electronic bubble calibration, NFC and voice DIY, V90Plus GNSS system provides surveyor industry-leading GNSS solutions.
With a high-technical, fully integrated design, the conveniently sized V90Plus is one of the most flexible choices for any measuring task. Built-in Linux3.2.0 operating system, pre-loaded multiple smart applications such as tilt surveying, electronic bubble calibration, NFC and voice DIY, V90Plus GNSS system provides surveyor industry-leading GNSS solutions.
Key Features
1) Advanced GNSS engines
2) Support GPS, GLONASS, BDS, GALILEO
3) Tilt sensor and electronic bubble integrated
4) NFC and WiFi functionality
1) Advanced GNSS engines
2) Support GPS, GLONASS, BDS, GALILEO
3) Tilt sensor and electronic bubble integrated
4) NFC and WiFi functionality
Small and Lightweight
· Only weighs 950g.
· Measures Diameter 153mm x Height 83mm.
· Only weighs 950g.
· Measures Diameter 153mm x Height 83mm.

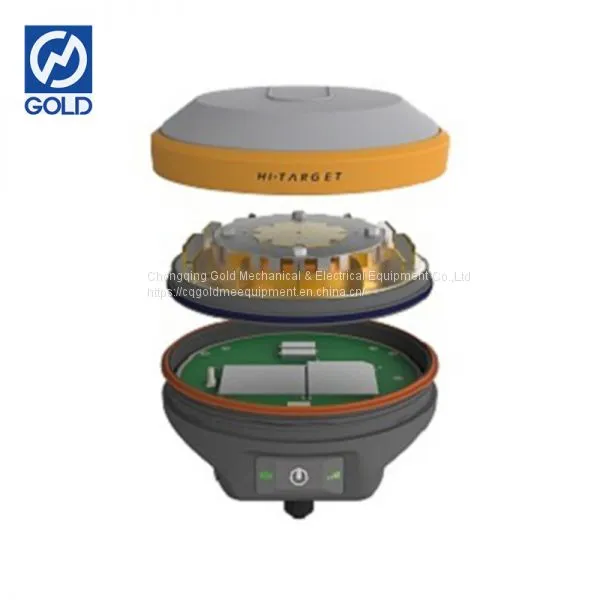

Multi-constellation Tracking
· 220 tracking channels
· Supports GPS, GLONASS, GALILEO, BDS, SBAS
· NGS approved full-band GNSS antenna
· 220 tracking channels
· Supports GPS, GLONASS, GALILEO, BDS, SBAS
· NGS approved full-band GNSS antenna

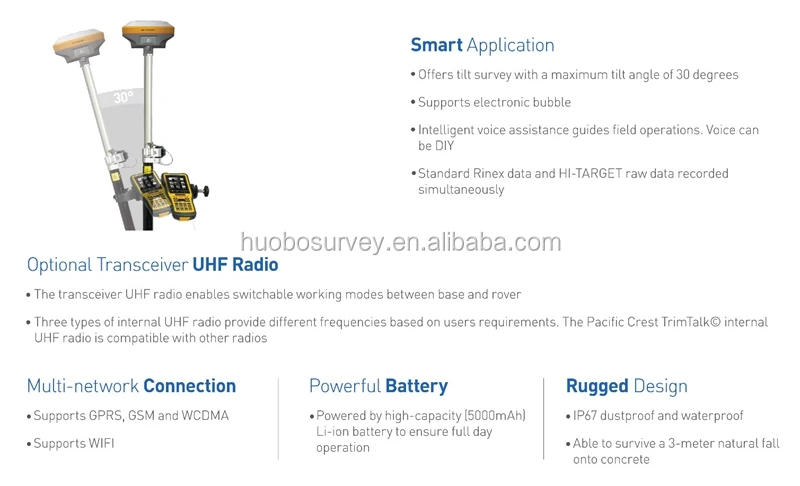

Smart Application
· Offers tilt survey with a maximum tilt angle of 30 degrees.
· Supports electronic bubble calibration
· The internal NFC module makes Bluetooth communication quick and easy.
· Intelligent voice assistance guides field operations. Voice can be DIY.
· Standard Rinex data and HI-TARGET raw data recorded simultaneously.
· Offers tilt survey with a maximum tilt angle of 30 degrees.
· Supports electronic bubble calibration
· The internal NFC module makes Bluetooth communication quick and easy.
· Intelligent voice assistance guides field operations. Voice can be DIY.
· Standard Rinex data and HI-TARGET raw data recorded simultaneously.
Optional Transceiver UHF Radio
· The transceiver UHF radio enables switchable working modes between base and rover.
·Three types of internal UHF radio provide different frequencies based on users requirements. The Pacific Crest TrimTalk
· The transceiver UHF radio enables switchable working modes between base and rover.
·Three types of internal UHF radio provide different frequencies based on users requirements. The Pacific Crest TrimTalk
