Home > Instruments & Meters > Test Instrument > Test Machine > New High Quality GNSS Receiver GNSS RTK Surveying System Supplier
New High Quality GNSS Receiver GNSS RTK Surveying System Supplier
US$ 1000 - 5000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
GOLD
Place of Origin:
China
Model Number:
iRTK5
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai, Ningbo, Shenzhen, Guangzhou etc.
Delivery Detail:
7 days
Related Products
-
GNSS RTK System GNSS Integrated Solution for Surveying and MappingUS$ 1000 - 5000MOQ: 1 Set -
IRTK5 GNSS RTK Receiver Work With IHand30 Handheld ControllerUS$ 1000 - 5000MOQ: 1 Set
-
336 Channels Satellite Signals Tracking GNSS RTK System China SupplierUS$ 1000 - 5000MOQ: 1 Set
-
Single / Double Frequency Digital Echo Sounders for Measuring HydrographicUS$ 1000 - 5000MOQ: 1 Set
-
Marine Surveying Solution Instrument Digital Echo Sounder Hot SaleUS$ 1000 - 5000MOQ: 1 Set
Brand Name
GOLD
Place of Origin
China
Model Number
iRTK5
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd is specialized in manufacturing and developing of Geophysical Exploration Instrument such as Resistivity Meter, IP Instrument, Resistivity Image, Seismic Instrument, Electromagnetic Instrument, Borehole Camera, Borehole Logging System, Water Level Meter; Borehole Drilling Equipment including Core/ Water Well/ Tunnel/ Engineering/ Anchor Drilling Rigs&Accessory and Geodetic Surveying Instrument(GNSS RTK System, Total Station, GIS Mapping and Echo Sounder.
New High Quality GNSS Receiver GNSS RTK Surveying System Supplier
Technical Specification
About Product
Product Introduction
iRTK5 is the new high quality GNSS receiver of Hi-Target, benefiting from the next-generation GNSS engine, supporting the PPP service. It has full band support for cellular mobile networks (LTE, WCDMA, EDGE,GPRS,GSM), and supports most of the radio protocols on an internal UHF transceiver radio.
iRTK5 has an innovative designs, a magnesium alloy structure and the Linux 3.2.0 operating system. The HD OLED color touch screen has a better display, and operates in rain. iRTK5 is an industry-leading GNSS RTK surveying solution.
iRTK5 has an innovative designs, a magnesium alloy structure and the Linux 3.2.0 operating system. The HD OLED color touch screen has a better display, and operates in rain. iRTK5 is an industry-leading GNSS RTK surveying solution.
Key features
1. With the next-generation GNSS engine BD990, the new intelligent iRTK5 can provide an intelligent, integrated solution for surveying and mapping. It supports full constellation and multiple channels with Maxwell7 technology, can achieve a four-star tri-band solution and can fix a position quickly and reliably. It supports the PPP service, has the accuracy of stand-alone precision positioning to an accuracy of 4cm globally. The HD OLED color touch screen can do a better display, and it’s operational in rain.
2. With 16GB internal storage, it supports OTG functions. Full band support for cellular mobile network with a built-in 4G network antenna. With a 360° omni-directional wireless radio antenna and internal UHF radio, it supports multiple radio protocols. It supports WiFi, bluetooth and NFC (near field communication). It support tilt survey with the internal electronic bubble. With a 6800mAh lithium-ion rechargeable and removable smart battery, it supports a quick charge and power display with the LED. Stronger with innovative designs and magnesium alloy structure.
3. Double format storage of static data (*.GNS / RINEX). With the new generation controller iHand30 supports 4G, WiFi, OTG, quick charge and so on. With the new Hi-Survey software with new UI, multiple base maps and so on.
1. With the next-generation GNSS engine BD990, the new intelligent iRTK5 can provide an intelligent, integrated solution for surveying and mapping. It supports full constellation and multiple channels with Maxwell7 technology, can achieve a four-star tri-band solution and can fix a position quickly and reliably. It supports the PPP service, has the accuracy of stand-alone precision positioning to an accuracy of 4cm globally. The HD OLED color touch screen can do a better display, and it’s operational in rain.
2. With 16GB internal storage, it supports OTG functions. Full band support for cellular mobile network with a built-in 4G network antenna. With a 360° omni-directional wireless radio antenna and internal UHF radio, it supports multiple radio protocols. It supports WiFi, bluetooth and NFC (near field communication). It support tilt survey with the internal electronic bubble. With a 6800mAh lithium-ion rechargeable and removable smart battery, it supports a quick charge and power display with the LED. Stronger with innovative designs and magnesium alloy structure.
3. Double format storage of static data (*.GNS / RINEX). With the new generation controller iHand30 supports 4G, WiFi, OTG, quick charge and so on. With the new Hi-Survey software with new UI, multiple base maps and so on.

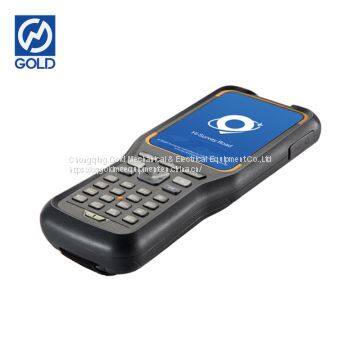

The iHand30 hand-held controller is a professional data collector, based on the Android system. Using a combination of physical buttons and touch screen to operate, the default input languages are Chinese and English, and it supports multiple languages. The industrial-standard design can withstand 1.2 meters drop to a cement floor, is IP67 waterproof and dustproof standard to adapt to a complex operating environment. At the same time, the super capacity lithium battery can handle all weather requirements.
The iHand30 hand-held controller configs 3.7 inches 640 * 480 highlighted LCD; 1.5GHZ, quad-core 64-bit CPU; and 16GB ROM +2 GB RAM memory. It has a built-in Micro SD card slot, and maximum support 128GB expansion card (it only supports FAT32 format SD card, the NTFS format SD card can not be supported); dual card dual stand-by, and supports the entire 4G network. With the Android 6.0 operating system, the interface is optimized and easy to use.
Key Features
1. Industrial-standard design, with IP67 it can withstand a 1.2 meters drop to a cement floor and adapt to a complex operating environment.
2. Highlighted LCD, the LCD screen is normally readable under strong sunlight.
3. Supports Bluetooth, Wi-Fi and 4G,which is convenient to carry out a variety of wireless data transmissions with the receiver. Wi-Fi and 4G can be used at the same time. Refer to the Hi-Survey Road Software User's Guide for more details.
4. Internal 8 million pixel camera: for field collection of image information.
5. Internal removable large capacity lithium battery for more than 15 hours of work.
6. Internal NFC chip, supports NFC data transmission for a rapid connection between the RTK and hand-held controller.
7. Fast charge technology: for a rapid battery charge.
8. Full keyboard input method.
9. Local online upgrade to facilitate quick changes.
The iHand30 hand-held controller configs 3.7 inches 640 * 480 highlighted LCD; 1.5GHZ, quad-core 64-bit CPU; and 16GB ROM +2 GB RAM memory. It has a built-in Micro SD card slot, and maximum support 128GB expansion card (it only supports FAT32 format SD card, the NTFS format SD card can not be supported); dual card dual stand-by, and supports the entire 4G network. With the Android 6.0 operating system, the interface is optimized and easy to use.
Key Features
1. Industrial-standard design, with IP67 it can withstand a 1.2 meters drop to a cement floor and adapt to a complex operating environment.
2. Highlighted LCD, the LCD screen is normally readable under strong sunlight.
3. Supports Bluetooth, Wi-Fi and 4G,which is convenient to carry out a variety of wireless data transmissions with the receiver. Wi-Fi and 4G can be used at the same time. Refer to the Hi-Survey Road Software User's Guide for more details.
4. Internal 8 million pixel camera: for field collection of image information.
5. Internal removable large capacity lithium battery for more than 15 hours of work.
6. Internal NFC chip, supports NFC data transmission for a rapid connection between the RTK and hand-held controller.
7. Fast charge technology: for a rapid battery charge.
8. Full keyboard input method.
9. Local online upgrade to facilitate quick changes.
