Friendly Design Echo Sounder for Marine Surveying and Mapping

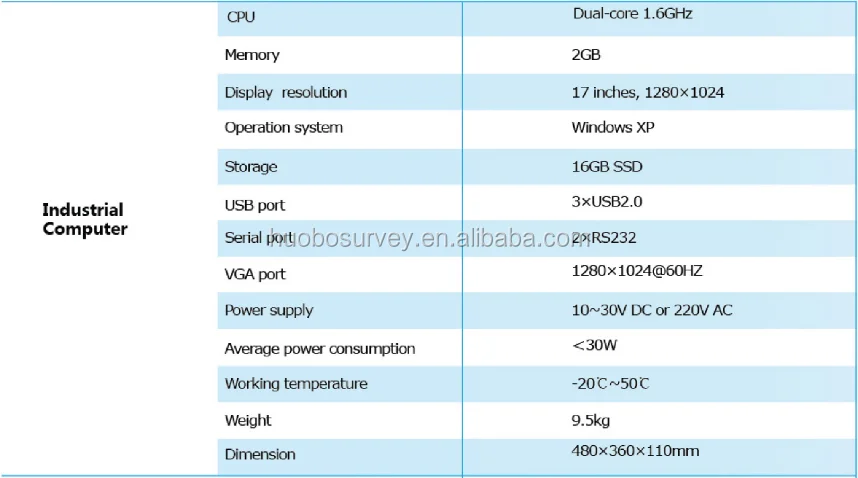

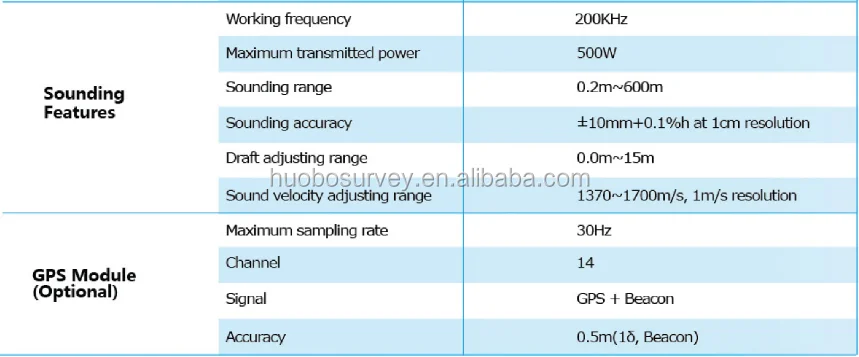

Technical Specification
Product Features

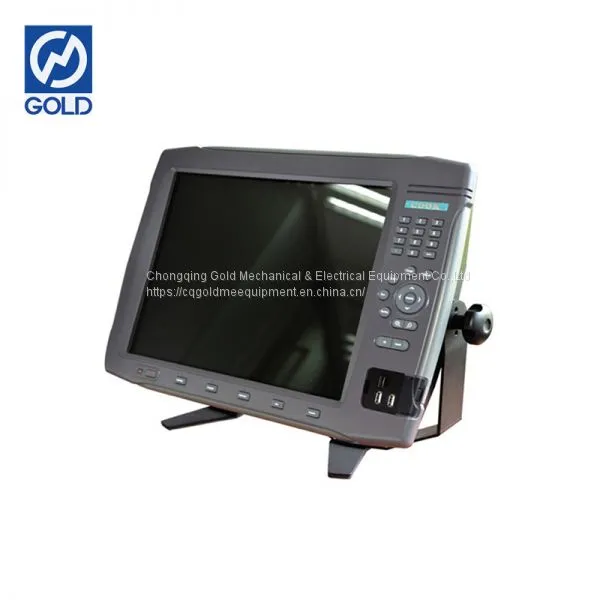

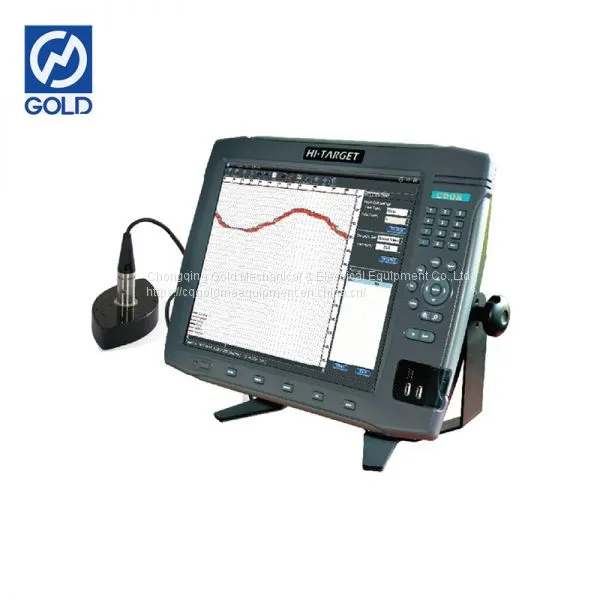

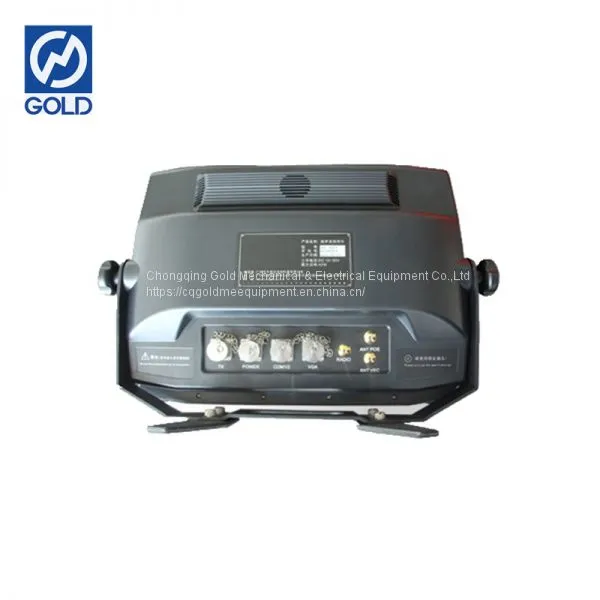

HD-MAX Echo Sounder

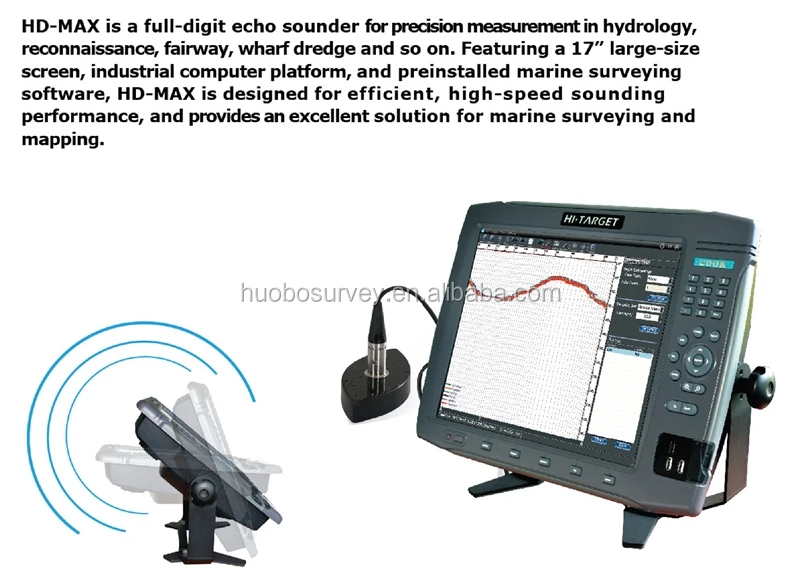

HD-MAX is a full-digit echo sounder for precision measurement in hydrology, reconnaissance, fairway, wharf dredge and so on. Featuring a 17” large-size screen, industrial computer platform, and preinstalled marine surveying software, HD-MAX is designed for efficient, high-speed sounding performance. The integrated Hi-Max Sounder software provides an excellent solution for marine surveying and mapping.
Optimized Sounding Technology
*Advanced signal tracking gate technology
*Sampling rate up to 30Hz
*Optimized TVG curve delivers improved sounding performance
*Upgrading data processing framework to adapts to a more complex terrain environment
*Easy to record and replay analog signals and water depth information

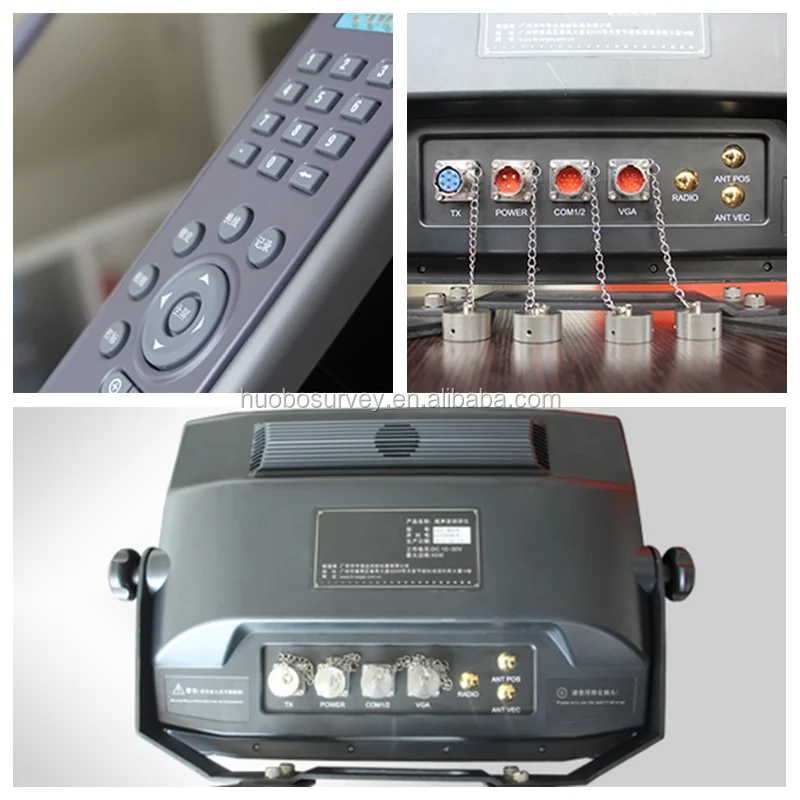

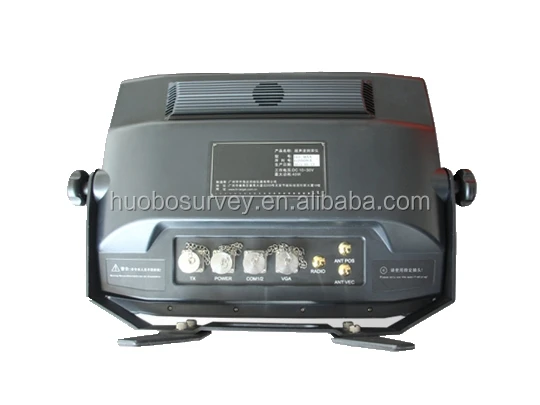

Industrial Computer Platform

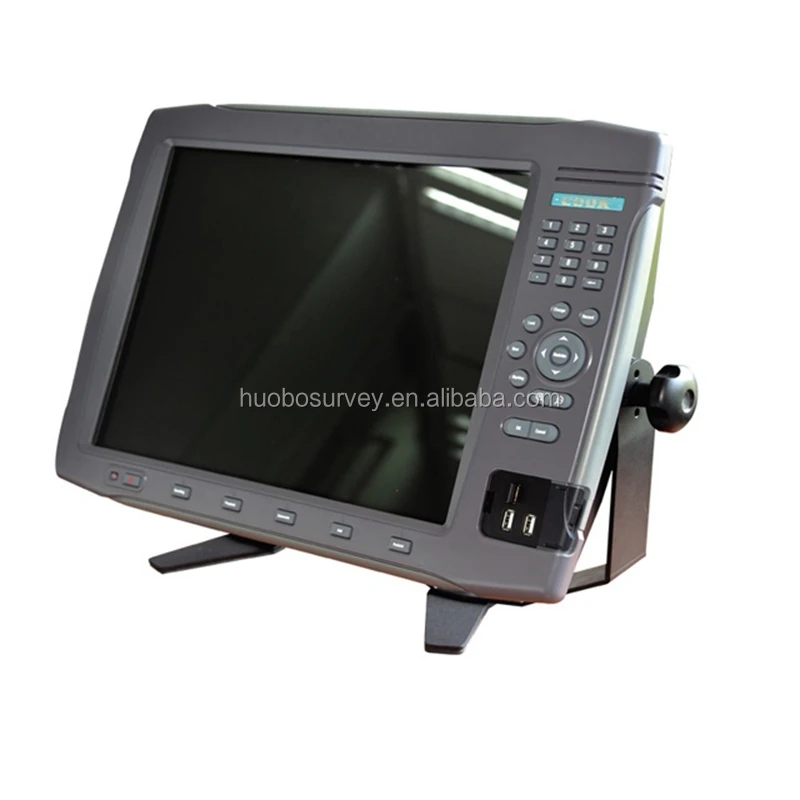

*17” large-size screen
*16GB SSD and one-key reset function
*Waterproof, sturdy and durable with high strength polyethylene plastic shell
Friendly Design

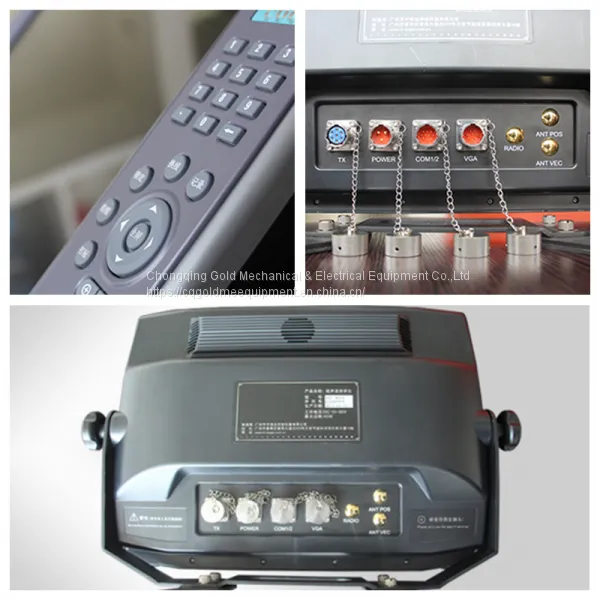

*Multiple shortcut buttons ensure convenient field operation
*Supports multi-screen display with VGA
*Adjustable screen display angle
Compatibility and Development
*Supports other devices such as GNSS receivers, attitude indicators, sound velocimetersand electric gyrocompasses and so on
*Optional built-in beacon module with precision up to 0.5 meters
