wifi antenna tes 2.4GHz dipole antenna with SMA male connector wifi antenna upside down

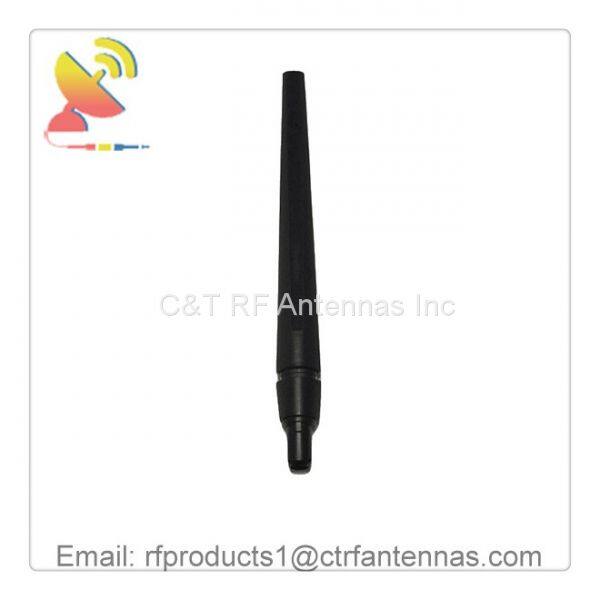

This dipole rubber duck Wifi 2.4GHz antenna is supplied by C&T RF Antennas Inc.
Electrical specifications:
RF Antenna Type |
Omnidirectional Dipole Rubber Duck 2.4GHz Wifi Antenna |
Frequency -MHz |
2400-2483Mhz |
Material |
Plastic ABS+PC |
Gain-dBi |
5dBi |
Storage Temperature range |
-40~+65°C |
VSWR |
≤1.8 |
Impedance-Ω |
50 ohms |
Polarization |
Vertical |
Max.Power-W |
50W |
Working Temperature range |
-40~+65°C |
Color |
Black |
Connector |
SMA Male or custom |
Size |
16x188mm |
Radiation pattern |
Omnidirectional |
Lightning protection |
DC ground |
Test Items |
Test Condition and Procedure |
Requirements |
Result |
|
C1 |
V.S.W.R. |
Set DUT on Network Analyzer; make individual calibration to test |
Directive DUT specification |
PASS |
C2 |
Insertion Loss |
Set DUT on Network Analyzer; make individual calibration to test |
Directive DUT specification |
N//A |
C3 |
Antenna Gain |
Set DUT on Antenna Chamber; make individual calibration to test |
Directive DUT specification |
PASS |
C4 |
Voltage Breakdown |
Test voltage should be applied between insulated portions, or between ground as specified. |
Max Voltage≥ 500 V or directive material specifications |
N//A |
C5 |
Insulation Resistance |
Set Voltage: 500 ± 50V;5 between the insulated portions, or between ground as specified. |
Resistance≥500 M ohm or directive material specifications |
N//A |
C6 |
Contact Resistance |
Air Temp: 26°C; measured with test equipment |
Directive material specifications |
N//A |
M1 |
Vibration |
GB / T2423.48-2008 Amplitude: 0.03 inch (1.5mm); Freq: 20 to 80 to 20 Hz 3 directions; 2 hours for each direction |
1.1 No Visual Damage 2.2 Frequency Tol.≤5%
|
PASS |
M2 |
Random Drop
|
GB / T2423.8-1995 Single：Height: 1.00 Meter; 3 directions; 1 time for each direction |
1.1 No parts separated、fracture 2.2 Frequency Tol.≤5% |
PASS |
|
Packing：Height: 0.760 Meter; 1 corner, 3 edges, 6 surface
|
PASS |
|||
|
Antenna + Machine: Height: 0.76 Meter; 1 corner, 3 edges, 6 surface. |
N//A |
|||
There are nearly as many different types of rubber duck antennas of The C&T RF Antennas Inc as there are radios and wireless peripheral devices that use them. When comparing two antennas together, it is sometimes easier to look at them in terms of frequency and gain. The frequency of an antenna is predicted by its application.
This single band rubber duck portable antenna of The C&T RF Antennas Inc has a frequency range of 2.4 GHz to 2.4835 GHz and a 5 nominal dBi gain. Our portable rubber duck antenna uses SMA male connector and is rated for 50 Watts input.
Warmly welcome customers come to negotiate, mutual benefit and common development!
The C&T RF antennas Inc is Providing a wide range of off-the-shelf products along with a large volume of RF OEM and some contract manufacturing, The C&T RF antennas Inc has the experience, knowledge and capabilities to engage with companies and individuals that need very high product quality, no matter the order volume.
The C&T RF Antennas Inc offers maximum coverage designed for WLAN and Cellular/LTE frequency bands. Single, dual, tri-band and concurrent radio, as well as switched Smart Antenna options are available.
It comes in a compact, robust articulated lightweight design, making it an ideal choice for handheld RF Explorer Spectrum Analyzer.
