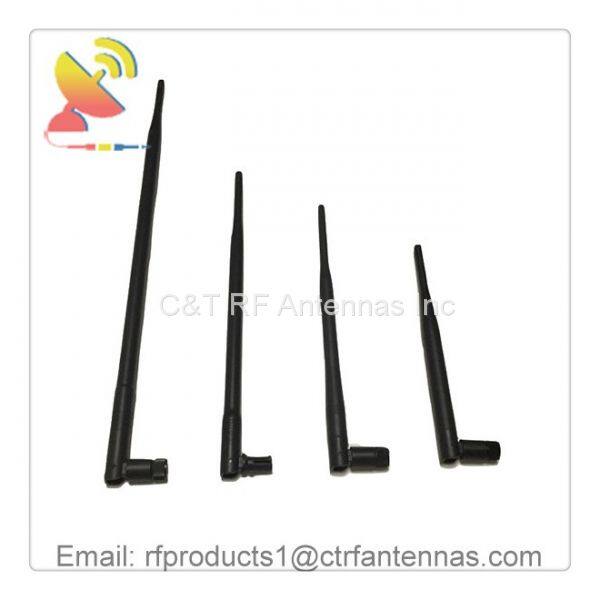

9dBi Omnidirectional 2.4GHz dipole antenna wifi antenna 2.5G antenna for Wireless Lan, Wireless Data Transmission
This dipole rubber duck Wifi 2.4GHz antenna is supplied by C&T RF Antennas Inc.
Electrical specifications:
RF Antenna Type |
Omnidirectional Dipole Rubber Duck 5.8GHz Wifi Antenna |
Frequency -MHz |
2400-2483Mhz |
Material |
Plastic ABS+PC |
Gain-dBi |
9dBi |
Storage Temperature range |
-40~+65°C |
VSWR |
≤1.8 |
Impedance-Ω |
50 ohms |
Polarization |
Vertical |
Max.Power-W |
50W |
Working Temperature range |
-40~+65°C |
Color |
Black |
Connector |
SMA Male or custom |
Size |
13x294mm |
Radiation pattern |
Omnidirectional |
Lightning protection |
DC ground |
The C&T RF Antennas Inc "Rubber-Duck" Wireless LAN antennas provide broad coverage with an omni-directional pattern. All antennas feature tilt-and-swivel connectors and are available in models ranging from 1 dBi to 9 dBi.
Features:
Compact size
Flexible "Rubber Duck" antenna
Tilt and swivel design
SMA Connector
Optional Magnetic Mount Available
The C&T RF Antennas Inc’s Rubber duck antennas can be connected directly to the wireless device or alternately attached to a magnetic base, which can be mounted vertically or horizontally on any metal surface. The base is then connected to the device with an extension cable.
The C&T RF Antennas Inc is a Professional company in the design, manufacture, and distribution of various high-quality RF antennas, RF coaxial cable assembly, RF connectors for wireless AP, mobile phone, and industrial applications.
We are the professional global supplier of communication and RF connection products for over 8 years, our corporate mission is leading the market to develop and manufacture the new generation wireless RF antennas and RF connection products offering the best value for booming new communication industry.
Welcome to send your BOM list for our quotation.
Qualified and experienced R&D staff
● mechanical engineering
● electronics / RF engineering
● process engineering
New methods and procedures
High-level equipment and CAD-Systems
Easy data exchange system
Our service:
●8 years experience of C&T RF Antennas Inc. mainly manufactures outdoor antenna, indoor antenna, marine antenna, the base station antenna, and tv antenna products.
● Our sales will reply your inquiry within 24 working hours.
● Customized design is available, OEM is welcomed.
● Excellent after-sales service.
