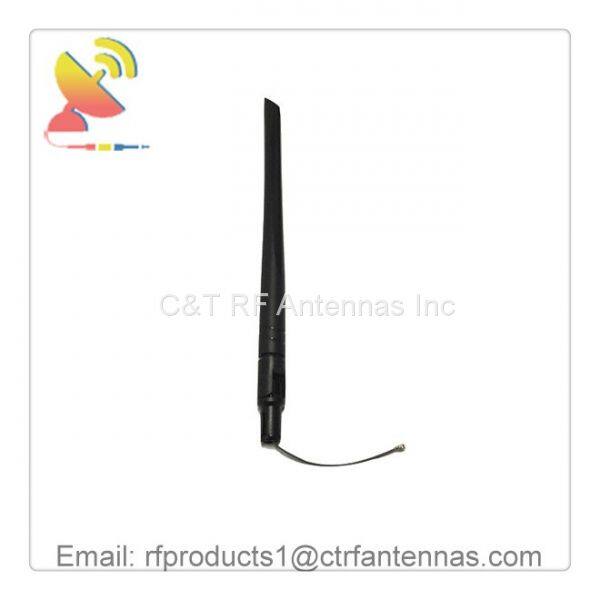

Internal-external omnidirectional 3dbi 2.4ghz rubber duck wifi antenna dipole antenna
This dipole rubber duck Wifi 2.4GHz antenna is supplied by C&T RF Antennas Inc.
Electrical specifications:
Frequency Center |
2400-2483 Mhz |
V.S.W.R |
2.0 |
Gain (dBi) |
3 dBi |
Polarization |
Vertical |
Connector |
U.FL or Customize |
Radiation pattern |
Omnidirectional |
Working Temperature ( DegreeC) |
-40℃~ +75℃ |
Impedance (ohms) |
50 |
Maximum Power (W) |
50 |
Dimension (mm) |
10x133 |
Operation Temperature ( DegreeC) |
-40℃~ +75℃ |
Net Weight (gm) |
12 |
Cable Type |
RG1.13 |
Cable Length |
70mm, or custom |
Radome Material |
Plastic ABS |
Welcome to send your BOM list for our quotation.
Application:
WIFI / CDMA / RFID / GSM / WiMAX / BLUETOOTH / WLAN
Direction and multi-point applications
Public wireless hotspots
Wireless Video System
The C&T RF Antennas Inc "Rubber-Duck" Wireless LAN antennas provide broad coverage with an omni-directional pattern. All antennas feature tilt-and-swivel connectors and are available in models ranging from 1 dBi to 9 dBi.
Features:
Compact size
Flexible "Rubber Duck" antenna
Tilt and swivel design
SMA Connector
Optional Magnetic Mount Available
The C&T RF Antennas Inc’s Rubber duck antennas can be connected directly to the wireless device or alternately attached to a magnetic base, which can be mounted vertically or horizontally on any metal surface. The base is then connected to the device with an extension cable.
Our products are deployed in applications using LTE, 4G, GPS/GLONASS, WiFi, VHF, UHF, and many other wireless technologies.
We also assemble a wide range of RF cabling, including custom-terminated low loss cables and a wide variety of pigtail/adapter cables made to order in-house.
