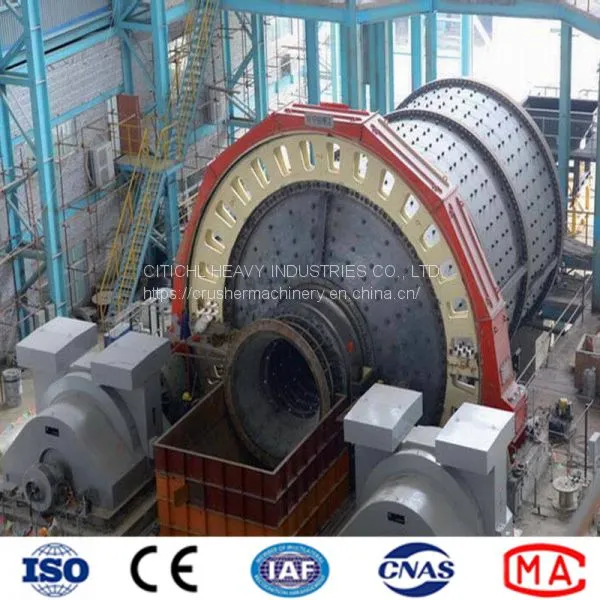

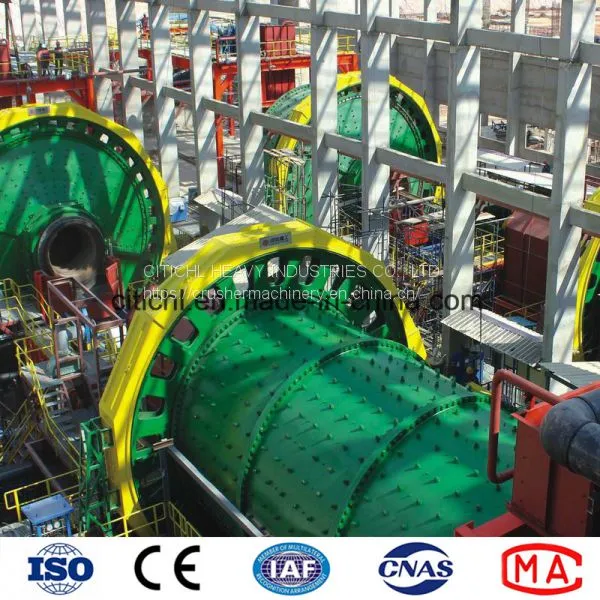

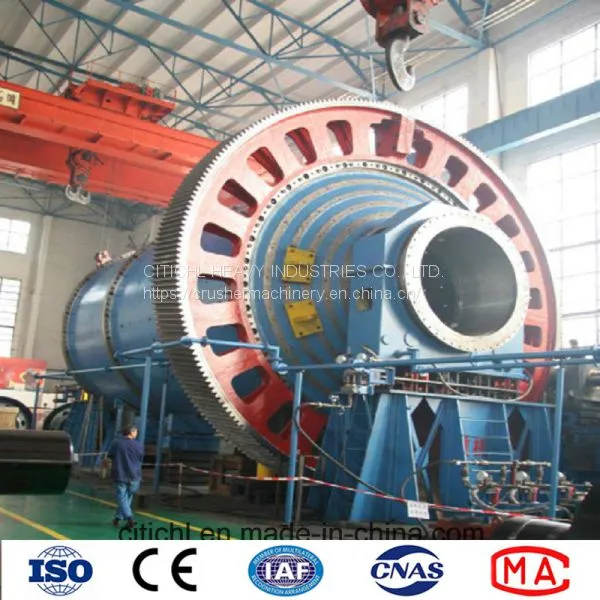

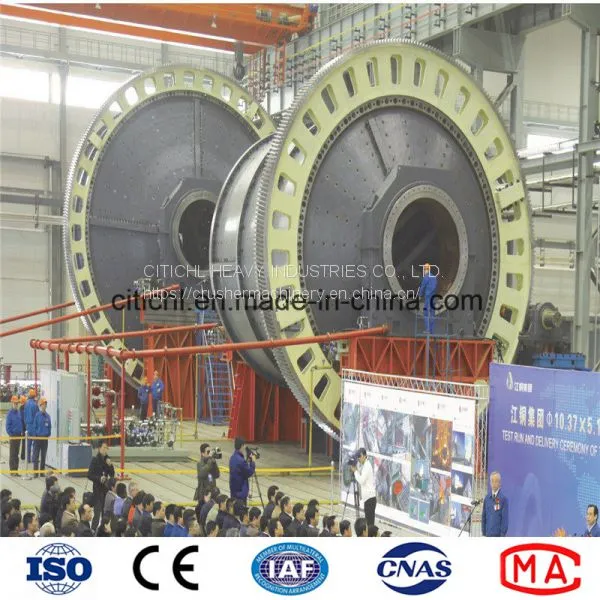

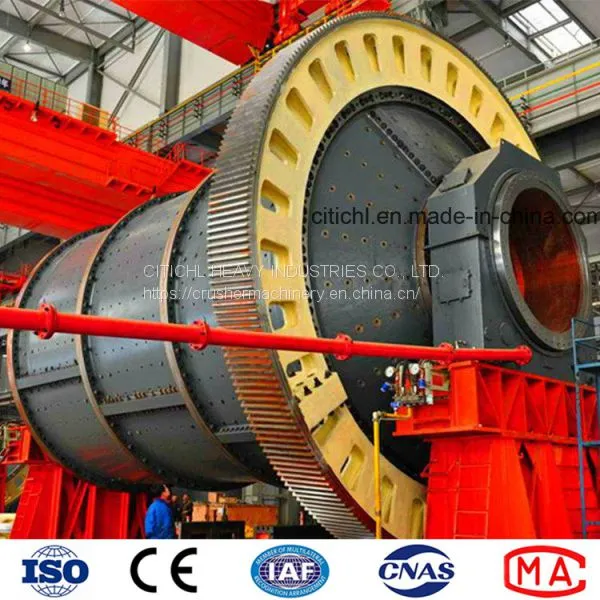

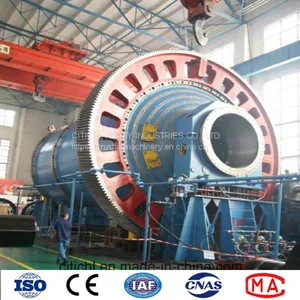

Energy-Saving Mining Machine Grinding Ball Mill

Product Introduction:

Mill is the key equipment for grinding materials to get the product as per the requirement of process, used widely in electric, ferrous (non-ferrous) metal, nonmetal mining, chemical & building material industries.
Mill could be sorted as following:

As per the grinding media:ball mill, rod mill and AG mill (without grinding media)
As per material discharging mode: wet grid mill, dry grid mill & overflow mill.
As per driving mode:side & central driving. The former is more popular now.
As per driving configuration:
a. Asynchronous motor driving: Asynchronous motor + Reducer + Pinion + Girth gear
b. Synchronous motor driving: Synchronous motor + Air clutch +Pinion + Girth gear
c. Asynchronous motor + reducer +diaphragm coupling

• Main bearing, adopting slide bearing, rolling bearing or sliding-shoe-bearing as per requirement.

• Liner, adopting wear-resistant metal liner, rubber liner, magnetic liner and alumina liner (high aluminum lining brick).

•


• Following items as per options: inching driving device, high & low pressure lubrication station, spraying lubrication device of gear, jacking device & PLC control system.

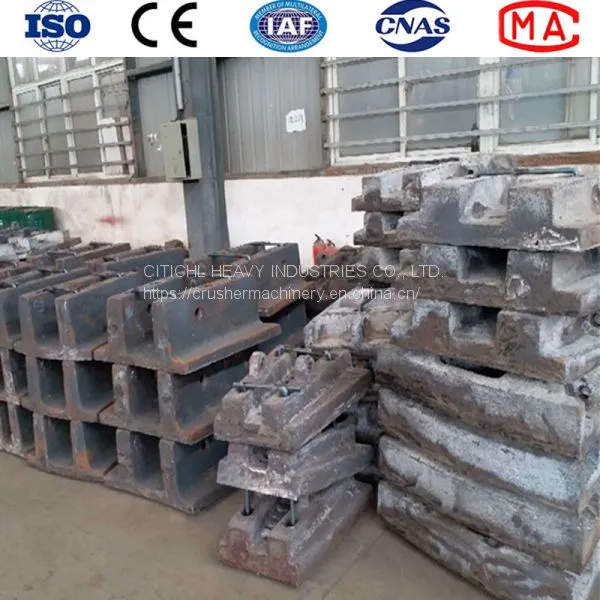

Ball mill liner

SAG/AG Mill Liners:
Integrated and/or plate and lifter designs for head and shell liners
Grates
Pulp lifters
Filler rings

Ball Mill Liners:
Single wave liners
Modified single wave liners
Double wave liners
Shell liners
Feed head liners
Discharge end liners
Rod  Mill Liners:
Shell liners
Head liners
"Wedge" shell liners

Advantages:
l More than 30 years experience
l ISO9001:2008 Standard certified
l Custom-made design
l High abrasion resistance
l Long service duration
l Easy and fast installation and replacement
l OEM and ODM are available.

Specification for Steel Castings for Grinding Mills
Applicable Specifications
 a. ASTM A609
b. ASTM A609 S1
For ASTM A 216 WCA Steel (modified):

If any questions pls contact us freely:   Mobile: 0086-18238804869
