Variable AC Resonance Test System Withstand Voltage for Generator

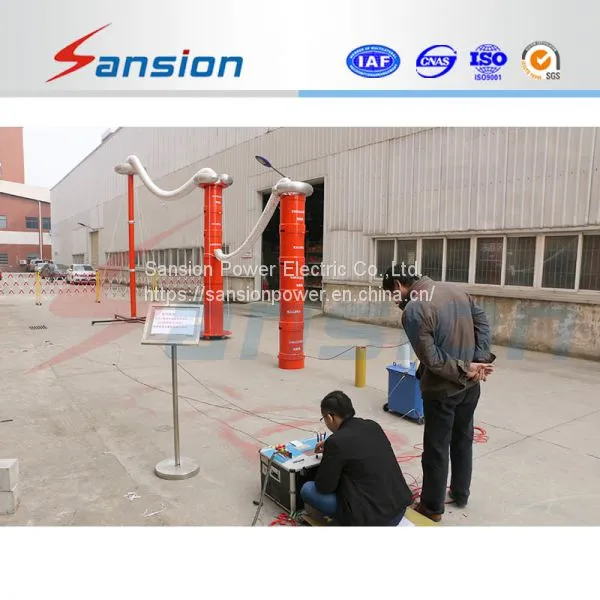

AC resonant test system is used for factory testing of middle, high and ultra-high voltage cables, capacitors, generators, motors, power transformers and gas-insulated switchgears.
Test object and requirements
1. 220KV 800mm2 cable 3000m , testing frequency is 30-300Hz, testing voltage 216KV.
2. 110KV line insulator, switchgear, GIS, which test object without capacity. Testing frequency is 30-300Hz, the largest testing voltage 265kV.
3. 35KV,300mm2 cable 12000m, testing frequency is 30-300Hz, testing voltage 52KV.
4. 110KV/6300000KVA neutral point connect with earth main transformer directly, testing frequency is 30-300Hz, testing voltage 76KV.
5. 110kV,500mm2 cable 6000m, testing frequency is 30-300Hz, testing voltage 128kV.
6. 110KV busbar, testing frequency is 20-300Hz, testing voltage 185kV.
