Application : electroplated CBN wheels are used for woodturning tools sharpening. Compare with traditional grinding wheels, our CBN wheels have the cutting fast and high speed feed grinding, will not cause rough surface and burn problems, leaves fine finish on tool bevel and don't need any dressing,etc
Introduction of Electroplated CBN Grinding Wheel: CBN (cubic boron nitride) grinding wheels have advantages for grinding woodturning tools. They are the latest must-have kit. Unlike conventional wheels, they don’t require dressing to clean and true them, so make less dust, and they don’t wear down to a smaller diameter. They are said to be very long-lasting. This means that any jigs used with them never need adjusting after initial set-up. They have a thin layer of grit on a heavy steel or aluminium wheel. They are available with very fine grit and produce an excellent sharp edge on the tools. They are suitable for high speed steel and hardened carbon steel, but unhardened steel may clog them.
Features of Electroplated CBN Grinding Wheel:
1. Produces a superbly sharp cutting edge.
2. Fine finish on tool bevel.
3. Fast, cool cutting action without coolant.
4. Side surface for flat grinds on skews, scraper cutters and tool bits.
5. No dressing or shaping required.
6. Wheel stays flat, never changes shape.
Regular Specifications of Electroplated CBN Grinding Wheel:
Diameter |
Arbor hole |
Thickness |
Available Grit |
Radius edge |
6 inch |
1/2 inch |
1 inch |
80#, 100#, 180#, 220#, 240#, 300#, 350#, 400#, 600#, 800#, 1200#, 1600# etc. |
1/4inch |
6 inch |
1/2 inch |
1.5 inch |
||
6 inch |
5/8 inch |
1.5 inch |
||
8 inch |
5/8 inch |
1 inch |
||
8 inch |
5/8 inch |
1.5 inch |
||
8 inch |
1-1/4 inch |
1 inch |
||
8 inch |
1-1/4 inch |
1.5 inch |
||
Other sizes are customized as required. Please contact:miya@moresuperhard.com | ||||

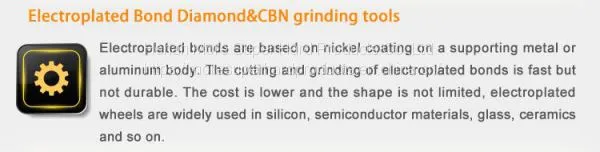

About Electroplated CBN & Diamond Grinding Wheel:

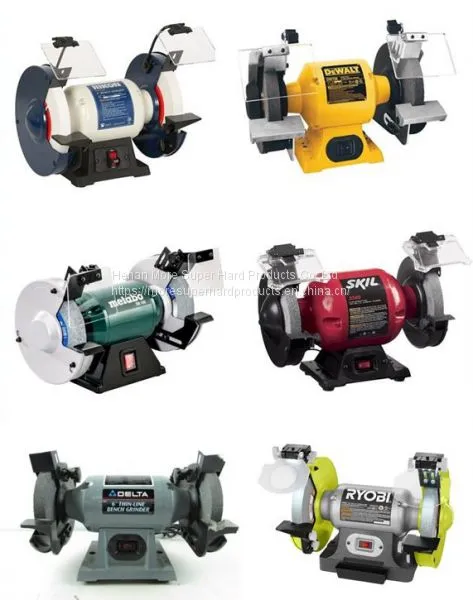

Applicable grinder: Bench grinder
The following are some commonly used grinder. Our customers have a good result of using our grinding wheel on this machine.
Service
-packge
Use carton and foam to ensure the safety of your wheel.The exclusive logo of More SuperHard Products CO.,Ltd.The package also can be customized.
-Express service
Fedex,DHL and TNT express are commonly used.Air transportation allows goods to reach you faster.If your shipment is large enough, we can also provide sea transportation service.
