General information:

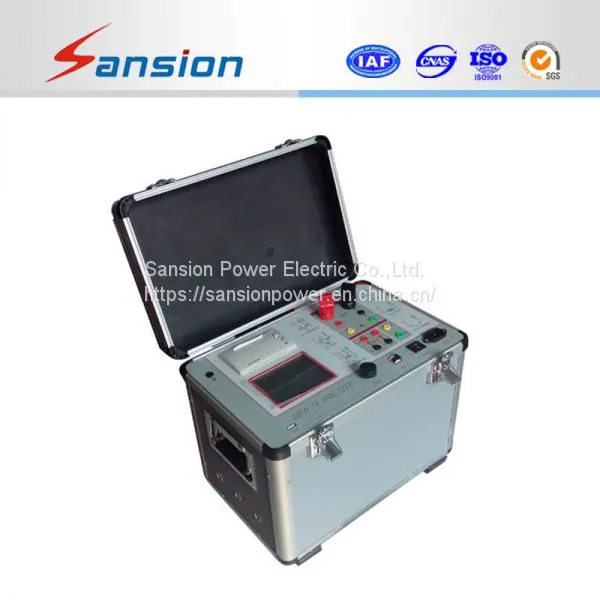

SXFA-V CT/PT Analyzer is designed to test on protection and measurement CT/PT automatically, suitable for laboratory and on site testing.
Features:
√ Support CT and PT testing.
√ The external connected auxiliary device is unnecessary.
√ Build-in printer.
√ Intelligent controller, easy to operate.
√ Large LCD screen, English interface, cursor operation, display test result and curve by real-time.
√ Auto provides CT/PT (excitation) knee point value.
√ Auto provides 5% and 10% error curve.
√ 3000 groups' data storage no lost even power failure.
√ U disk to save data, and generate to test report via PC.
√ Light weight, less than 22kG, suitable for on-site test.
Specifications:
| CT(Protection/measurement type) | PT |
| Volt-ampere characteristic(excitation) curve | Volt-ampere characteristic(excitation) curve |
| Auto calculates knee point value | Auto calculates knee point value |
| 5%and 10% error curve | Turns ratio |
| Turns ratio | Polarity |
| Ratio error | Ratio error |
| Angular error | Angular error |
| Polarity | AC withstand test |
| Primary Flow Injection | Secondary Load |
| AC withstand test | Secondary winding |
| Secondary load | Demagnetization |
| Secondary Winding | |
| Demagnetization |
| Working supply | AC220V±10% , 50Hz | |
| Output | 0~1000V(0-20A) | |
| Output Current | 0~600A(0-5V) | |
| Secondary Winding Resistance | Range | 0.1~300Ω |
| Precision | 0.5%±1mΩ | |
| Secondary Real Load | Range | 5~300VA |
| Precision | ≤0.5% | |
| CT/PT Angular Error |
Precision | ±4min |
| Resolution | 0.1min | |
| CT/PT Ratio Error |
Precision | ≤0.05% |
| Resolution | 0.1 | |
| CT Turns Ratio |
Range | 5-25000A/5A(5000A/1A) |
| Precision | ≤0.5% | |
| PT Turns Ratio |
Range | 1-10000 |
| Precision | ≤0.5% | |
| Working Environment | Temperature: -10ºC ~ 40ºC,Humidity: ≤90%,Altitude: ≤1000m | |
| Size | 380mm × 240mm × 260mm | |
| Weight | ≤22Kg | |
Warranty: One year quality guarantee after shipment.
