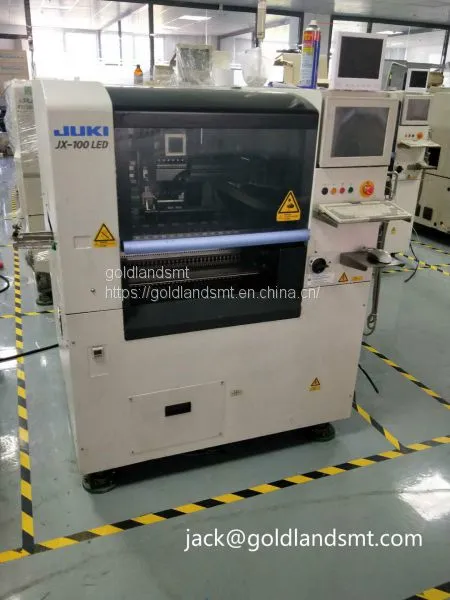

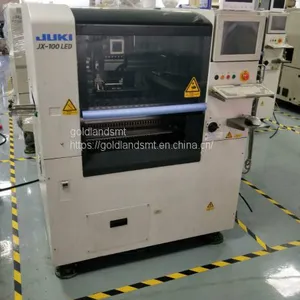

JUKI JX100 Pick and Place machine
1. Model : JX-100LED
2. Substrate size: Min. 50 * 50 ~ Max. 800 * 360mm
3.The substrate position positioning method corresponds only to the shape reference mode
4. Component height : 12.0mm
5. Component size: 0201 (metric 0603) chip ~ 33.5mm
6. Element Identification Device: Laser Identification (LNC60)
7. Component Mounting Speed: 0.187 sec / Chip (19,300 CPH)(Best Condition); IPC9850:15,300CPH
8. Placement accuracy: ± 0.05mm
9. Component type : Up to 30 types of component mounting (converted to 8mm)
10.Power supply: three-phase AC200 ~ 415V
11. Rated power: 1.5KVA
12. Use air pressure : 0.5 ± 0.05Mpa
13.Air consumption : (standard state) standard maximum 345L / min
14.Use air pressure vacuum pump (optional) up to 50L / min
15.Dimensions : (W * D * H) 1,390 * 1,270 * 1,440mm
16.Weight : about 1,000kg
contact:jack@goldlandsmt.com
Send Inquiry to This Supplier
