China Plasma Cutting Machine Box Packing
Basic configuration
Host specification 4000mm
The rail length is 12,000 mm.
CNC mobile body 1 set
CNC plasma cutting device Huayuan 160 plasma 1 set
Digital Control System Shanghai Jiaotong University
Horizontal Pipeline Drive Drag Chain
Longitudinal Pipeline Drive Drag Chain
Bilaterals driven
Function configuration
Arcing pressure raising device
1 set of initial positioning and anti-collision devices
III. Key technical indicators
Effective cutting width(except ventilation channel 2700mm) 3200mm
After the effective cutting length is integrated, 12,000 mm
Operation speed 100-120000mm/min
See Jane Plasma for details on plasma cutting thickness
Cure torch lift distance 200 mm
Accuracy of linear positioning ± 0.2 mm/10M
Repeated accuracy ± 0.2 mm/10M
Longitudinal guidance accuracy ± 0.2 mm/10M
Horizontal degree ± 0.3 mm/10M between the two rails
The degree of parallelism between the two rails: <UNK> ± 1mm
Automatic adjustment of precision ≤ 0.5 mm
The underline accuracy ≤ 0.5 mm
<UNK> Set speed error ≤ ± 5 <UNK>
Cutting surface roughness Ra12 .5

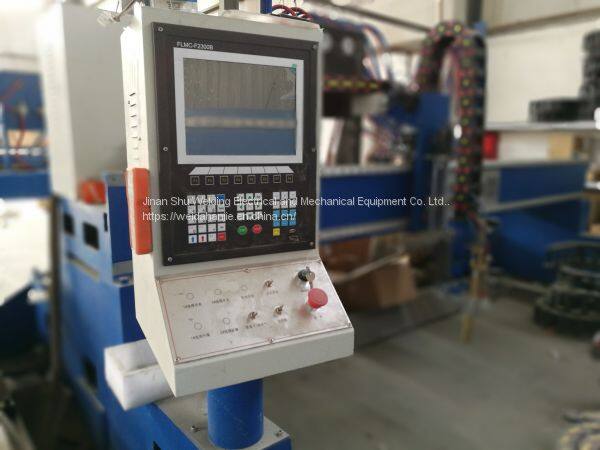

Control MCU: Industrial ARM9 chip
• Control axis number: 2-axis linkage(customizable 3-axis)
• Maximum number of lines: 150,000
Maximum single procedure: 4M
File storage: electronic storage disk, 512M
User programming space: 256M
• Control accuracy: ± 0.001mm
• Coordinates range: ± 99999.99 mm
• Maximum pulse frequency: 250 KHz; Maximum operating speed: 25 m/min
Time class resolution: 10ms
• System power supply: DC +24 V DC power supply input
System operating environment: temperature 0 °C to +55 °C; Relative humidity 0-95 % No condensation
External interface: USB
• Keyboard: PCB film keyboard, PS/2 interface, Omron button
• Boxes: Full metal structure completely shielded, anti-electromagnetic radiation, anti-interference, anti-static
