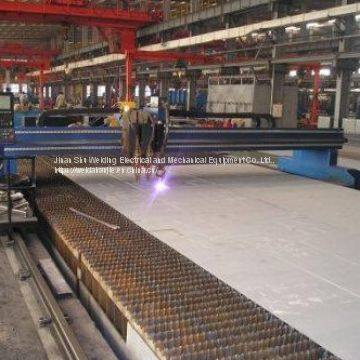

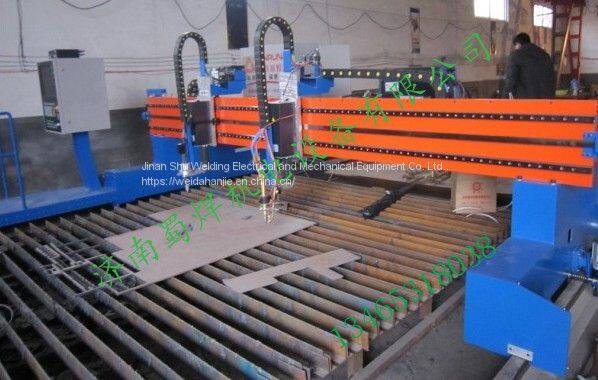

SQG-II series CNC cutting machine
Its main characteristics are stable performance, smooth operation, high positioning accuracy, simple and beautiful appearance. Modular design makes the machine parts interchangeability is strong, the function of the equipment expansion is extremely simple. Users can configure the corresponding functional components according to the actual process requirements, such as flame single cut torch, flame straight three-cut torch, automatic height adjustment, high and low pressure three-stage perforation, automatic ignition and so on. This model is widely used in petrochemical, shipbuilding, steel structure, automobile manufacturing and other industrial fields. It is a reliable and efficient industrial product used for sheet material.
The longitudinal guide rail device mainly consists of precision grinding guide rail, high-precision rack, guide rail adjustment pad, end limit plate and so on. The guide rails are made of high-strength heavy rails. The top and sides of the guide rails are subjected to precision mechanical grinding. Precision teeth are installed on the outer side of the guide rails.
Guide rail material: U71Mn
Tensile strength: not less than 883MPa
Processing method: high precision special guide rail grinder grinding
Guide rail accuracy: the parallelism between the base surface and the guide rail side of the rack installation ≤ ± 0.02 mm
Dimensional tolerances of the two sides of the main track ≤ ± 0.02 mm
Vertical degree of the two sides and the top surface of the main track ≤ ± 0.02 mm
Rail length: 2m / root
Teeth accuracy: Level 7(± 0.06 mm/800 mm)
Vertical and transverse teeth are made of pitch teeth. Since the distance of the CP gear is an integer for each turn, it can greatly reduce the cumulative error of the transmission, especially for machines with longer guide rails. The advantages are even more prominent.
