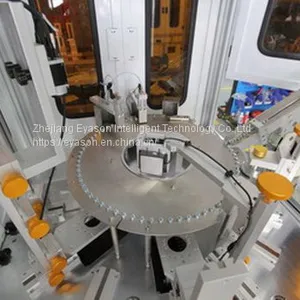

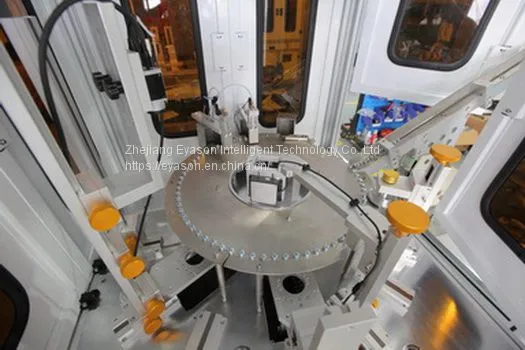

LM (Linear Vision): Mini split belt conveyor inspection machine US/CE Compliant.
1000 thru 4000: Standard, Non-Telecentric lens, 4 camera limit. Camera quantity (1000 = 1 Camera)
Product Description
Product Type: Ferrous and Non-Ferrous base headed fasteners. Sizes M1 to M4 x 15mm in length.
Production Rate: 600 to1200ppm, based on M2-.4 x 10mm long fastener. Vision Field of
View (FOV): 20mm Horizontal x 20mm Vertical
Inspection Machine Capabilities
Camera 1:
Top down view with adjustable front lighting (20mm FOV), Resolution >.0005″
Perimeter and open burst cracks, open cracks visible at OD, in silhouette view
of part, part standing on head viewed down ? Diameter; min/max/avg ? Ovality/Roundness
of head OD ? Hex(no flange) min/max diameter
Camera 2:
Side view with backlight (20mm x 20mm FOV), Resolution >.0005″
Length ? Head Height ? Shank Length ? Shoulder Diameter, min/max/avg/angle and variance ?
Point (Pilot) attributes. Threads: Major diameter ? Major Variance ? Minor diameter ?
Maximum ? Average ? Thread Match ? % Pattern detection of filled or missing threads
Camera 3 @ 90°:
Side view with backlight (20mm x 20mm FOV), Resolution .0014″Turned Head; Side view
comparison and average of hex head width ? Bolt straightness, features of bolt can
affect reading
