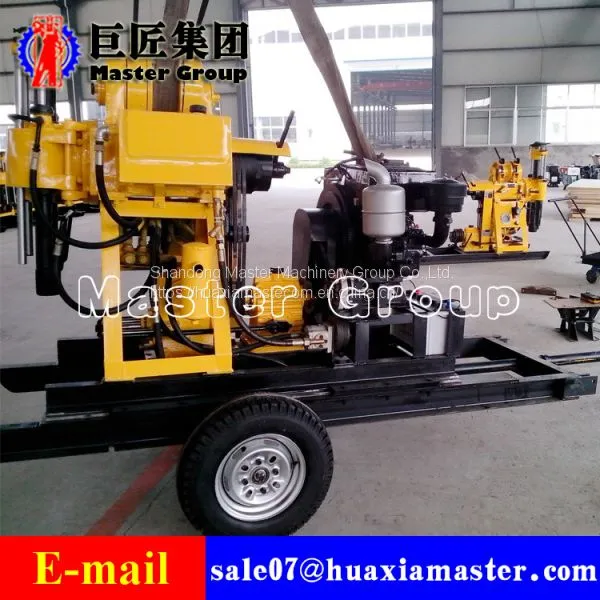

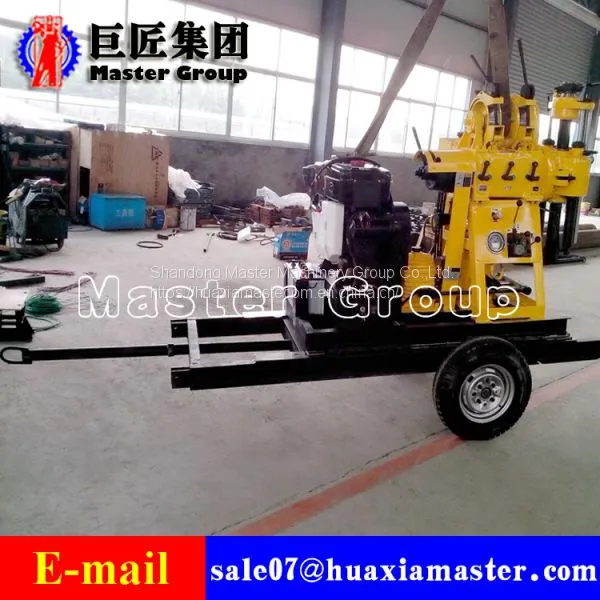

Help CenterXYX-200 Wheeled Water Well Drilling Rig Walking Water Well Drilling Rig
Related Products
-
XYD-200 Crawler Water Well Drilling Rig Depth of 200mUS$ 12000 - 12500MOQ: 1 Set -
XYC-200 Hydraulic Water Well Drilling Rig Hydraulic Press MachineUS$ 6600 - 7100MOQ: 1 Set
-
Geological Investigation YC-200A Tricycle Water Well Drilling RigUS$ 6600 - 7100MOQ: 1 Set
-
XY-1 Water Well Drilling Rig Rock Core Geological and Physical Survey DrillingUS$ 6600 - 7100MOQ: 1 Set
-
XY-1 Water Well Drilling Rig Rock Core Geological and Physical Survey DrillingUS$ 6600 - 7100MOQ: 1 Set
1. The features of XYX-200 water well drilling rig
l It has oil pressure feed mechanism to improve drilling efficiency.
l Wheel walking mechanism,very convenient for transport and adjusting the drilling rig level.
l Pressure gauge display the condition of the bottom of the drill hole.
l The machine is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod. The working is high efficiency, convenient operation, safe and reliable.
2.The specifications of XYX-200 water well drilling rig
XYX-200 water well drilling rig | |
Drilling hole depth |
200m |
Maximum opening hole diameter |
300mm |
End hole diameter |
75mm |
Drilling pipe diameter |
60mm |
Drilling angel |
90°-75° |
Rig weight (without power) |
1300kg |
Triangular belt |
B950×4 B1700×3 |
Active moving distance |
300mm |
Power |
diesel engine/ motor 20hp/16.2kw |
Vertical spindle | |
Rotation speed |
64 128 287 557 r/min |
Stroke |
450mm |
Windlass | |
Maximum lifting power of a single rope |
2400kg |
Lifting speed of a single rope |
0.41/ 0.82/ 1.64m/s |
Wire rope diameter |
13mm |
Wire rope capacity |
35m |
Band-type break diameter |
260mm |
Band-type break belt width |
70mm |
Mud pump | |
Model |
horizontal single cylinder double action |
Maximum displacement |
diesel engine 170L/min Matching motor 150L/min |
Maximum pressure |
3mpa |
Work pressure |
1.5mpa |
Water inlet pipe diameter |
40mm |
Water outlet pipe diameter |
30mm |
Triangular belt |
B1728mm |
Model |
CBT—F—314 |
Triangular belt |
B1100× 1 |
