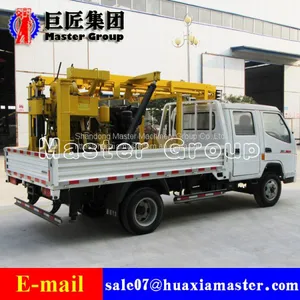

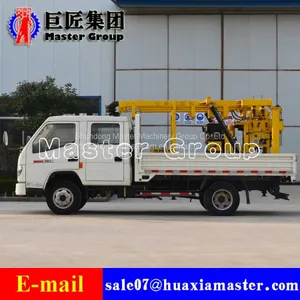

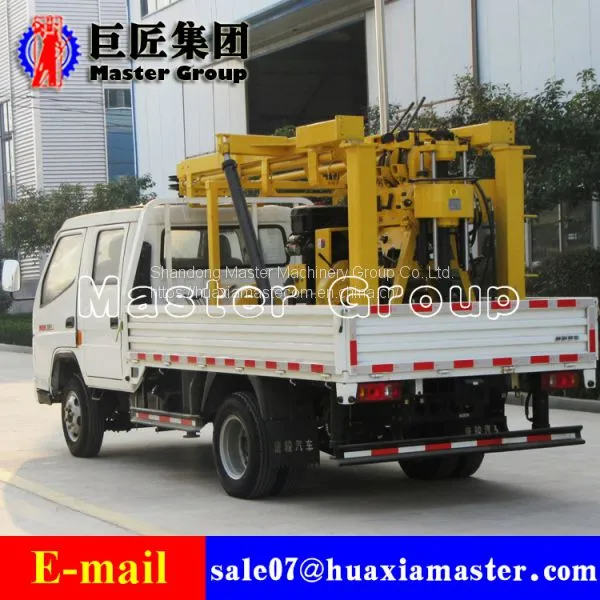

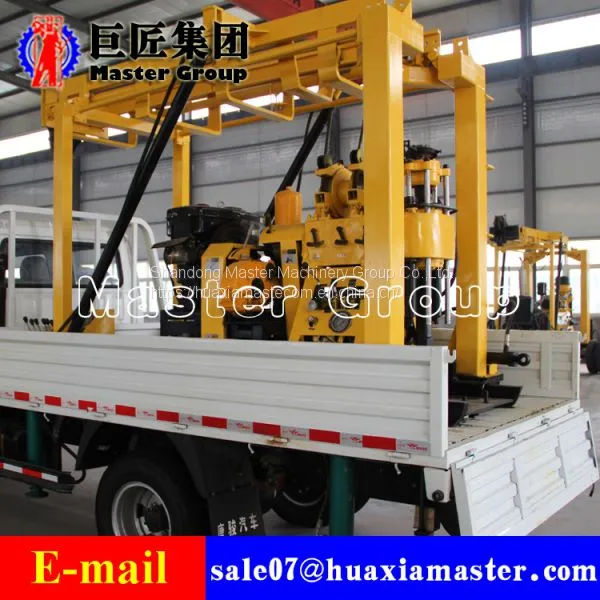

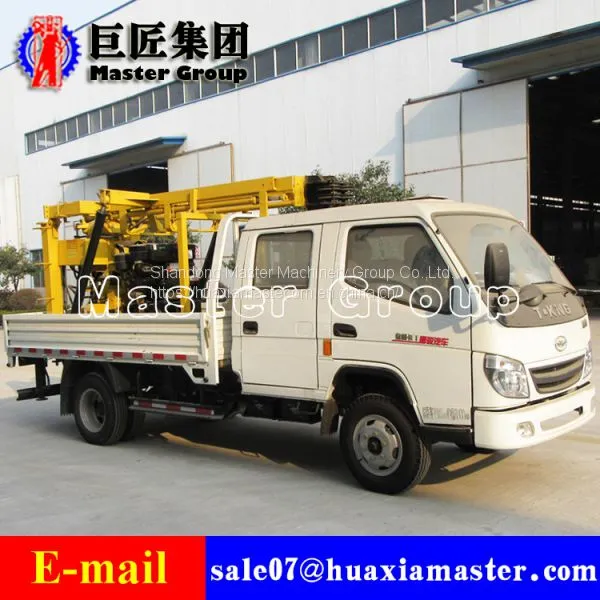

1.The applications of XYC-200A tricycle water well drilling rig
XYC-200A tricycle water well drilling rig mainly used for Made in China water well,field irrigation well, engineering water well,precipitation well and so on; geological general investigation and exploration, road and tall building foundation exploration, holes in concrete structure, river levees.
2.The features of XYC-200A tricycle water well drilling rig
l XYC-200A tricycle water well drilling rigs is Multi-function hydraulic vehicle-mounted shaft rotary drilling machine .
l The chassis of the vehicle is equipped with 7YD-1475DI, drilling rig drive system and important accessories such as hoisting and mud pump, which are reasonably compact and easy to operate.
l XYC-200A drilling rig adopts BW160 pump, with high pressure and high flux, protectthe depth and hole diameter.
l The tricycle drilling rig is equiped with shift unit,drilling rig can back and forward.
l The highest speed can reach 1045r/min with 5 gears, improved drill efficiency
l Adopted 53 x 59 drilling rod, high rigidity and strong delivery torque
l Equipped with national patent technology---taper clutch, make the machine easy to operate and free maintenance.
l Use large module planetary gear and add supporting frame, highly increased hoisting and braking ability of the winch.
l Vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.
3. The specifications of XYC-200A tricycle drilling rig
Drilling depth |
200m |
Maximum open hole diameter |
75-260mm |
End hole diameter(mm) |
75 |
Drilling pipe diameter |
50mm |
Drilling tower height |
6500mm |
Drilling angle |
90-75 |
Effective height of drilling tower (mm) |
6500mm |
Rig weight |
1150kg |
Spindle | |
Spindle rotating speed |
64/128/287/557r/min |
Spindle stroke |
450mm |
Windlass | |
Lifting power (single rope) |
1600kg |
Lifting speed (single rope) |
17/35/75/151r/min |
Tightrope diameter |
12.5mm |
Tightrope cubic Measure |
35mm |
Hug floodgate belt width |
70mm |
Mud pump | |
Type |
BW160 |
Discharge/displacement |
170l/min. |
Diesel |
S1115 22HP |
Electric motor |
15kw,1440r/min |
Max. pressure |
1.5mpa |
Work pressure |
0.7mpa |
Water inlet diameter |
30mm |
Water outlet diameter |
25mm |
Triangle conveyre belt |
B1728mm |
Chassis | |
Chassis model |
tricar 7YP-1475D1 |
Drive mode |
Rear wheel drive |
Engine brand |
Changchai ZS1115E2. |
Rated power |
16.2kw/2200rpm |
