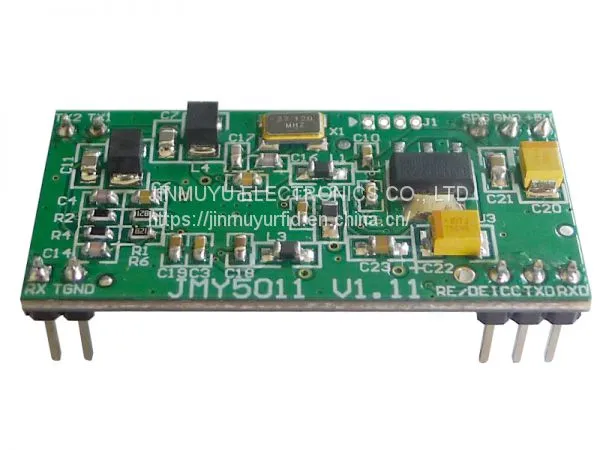

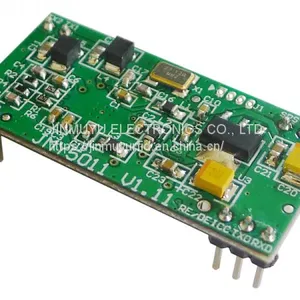

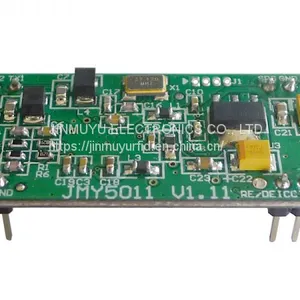

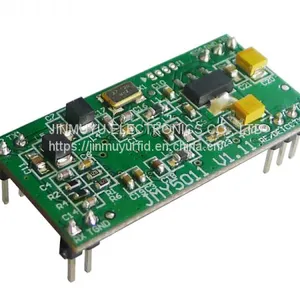

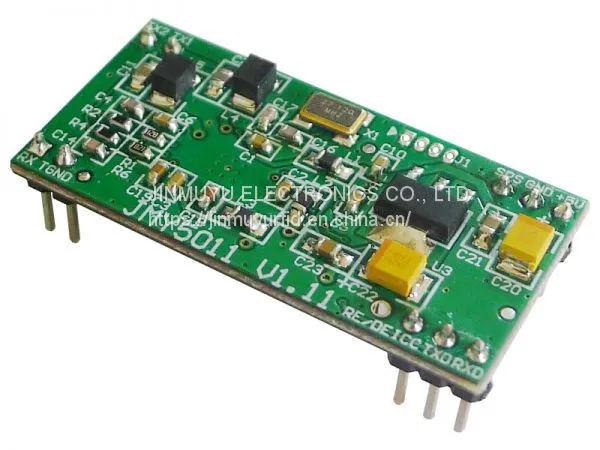

Help Center13.56MHZ RFID Embedded Reader Modules-JMY5011
Related Products
-
13.56MHZ RFID Embedded Reader Modules-JMY5041US$ 21 - 31MOQ: 1 Piece -
13.56MHZ RFID Embedded Reader Modules-JMY6804US$ 21 - 31MOQ: 1 Piece
-
13.56MHZ RFID Embedded Reader Modules-JMY601US$ 21 - 31MOQ: 1 Piece
-
13.56MHZ RFID Embedded Reader Modules-JMY6021US$ 21 - 31MOQ: 1 Piece
-
13.56MHZ RFID Embedded Reader Modules-JMY6122US$ 21 - 31MOQ: 1 Piece
The impedance between RF module and antenna was tuned by impedance analyzer. And then the module has excellent performance and stability.
The module and antenna is split design. 4 wires are linked the antenna and module. Normally the wire should be less than 200mm, or it will affect the module’s performance and stability.
- Qualifications
• PCD model: NXP CL RC663
• Working frequency: 13.56MHz
• Card supported: see: module function configuration table
• Anti collision ability: Full function anti collision; be able to process multi-cards; be able to set operate single card only.
• Auto detecting card: Supported, default OFF. The default state can be set.
• Power supply: DC 5V (±0.5V)
• Interface: IIC & UART (selected by SPS pin, recommend to use IIC)
• Communication rate:
IIC: Max.200Kbps
UART: 19200bps / 9600bps / 38400bps / 57600bps / 115200bps
• Max. command length:
JCP02 252 Bytes;
JCP03 510 Bytes;
JCP04 253 Bytes;
JCP05 510 Bytes;
• Interface level: 3.3V (TTL level; 5V tolerance)
• Power consumption: 130mA
• Operating distance: 100mm (depending on card and antenna design)
• Dimension: 21 mm*42mm
• Weight: About 15g
• Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
• Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
• ISP: Supported
• RoHS: Compliant
