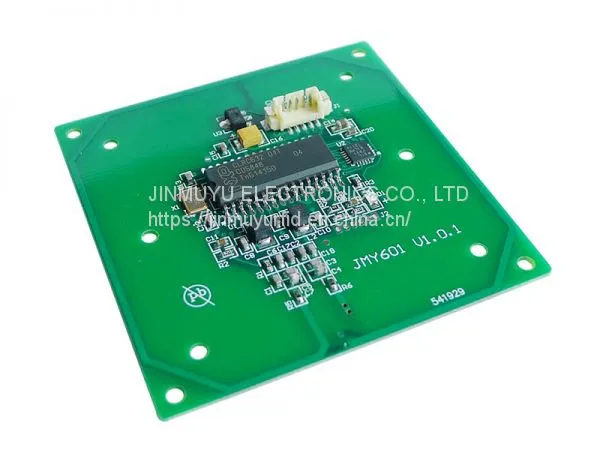

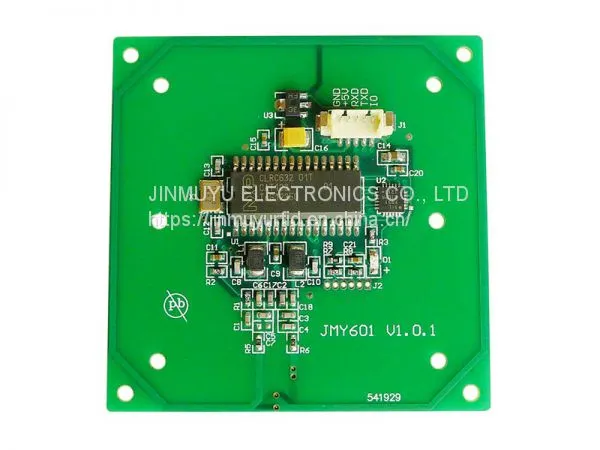

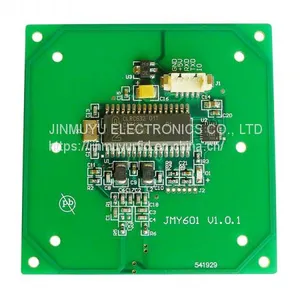

Help Center13.56MHZ RFID Embedded Reader Modules-JMY601
Related Products
-
13.56MHZ RFID Embedded Reader Modules-JMY6021US$ 21 - 31MOQ: 1 Piece -
13.56MHZ RFID Embedded Reader Modules-JMY6122US$ 21 - 31MOQ: 1 Piece
-
13.56MHZ RFID Embedded Reader Modules-JMY622US$ 21 - 31MOQ: 1 Piece
-
13.56MHZ RFID Embedded Reader Modules-JMY5011US$ 21 - 31MOQ: 1 Piece
-
13.56MHZ RFID Embedded Reader Modules-JMY5041US$ 21 - 31MOQ: 1 Piece
- Main Characteristics
• Modules integrated antenna, excellent consistency and stability
• Light and slim
• RF protocol in accordance with EMV2010
- Qualifications
• PCD: NXP MF RC531, SL RC400, CL RC632
• PCB Layers：4
• Working frequency: 13.56MHz
• Termsed standard: ISO14443A, ISO14443B, ISO15693
• Anti collision ability: Full function anti collision; be able to set multi-cards or single card
• Auto detecting card: Termsed, default OFF, could be set
• Data FLASH: 512 Bytes
• Power supply: DC 5V (±10%)
• Interface: UART or IIC by order
• Communication speed:
IIC: Max.200Kbps
UART: 19200bps, 9600bps, 38400bps, 57600bps, 115200bps
• mand length:
JCP04: 253bytes
JCP05: 510bytes
• Interface level: UART / IIC: 3.3V (TTL level; 5V tolerance, by pull up)
• Power consumption: 150mA
• Operating distance: 100mm (M1 typical distance, depending on card quality)
• Dimension: 60mm*60mm*5.7mm
• Weight: About 20g
• ISP: Termsed
• RoHS: By order
• CE certification: in plan (Jan. 17, 2015)
• Operating temperature: -25 to +85°C
• Storage temperature: -40 to +125°C
- If you want to get more information about 13.56MHz RFID Desktop Reader or Embedded Reader Modules, welcome contact with me in any time. E: yinghaiyan at jinmuyu dot com or jinmuyu1987 at gmail dot com
- Whats app: 0086 13120161037
- web site: www dot jinmuyu dot com
